L HIGH PRECISION PLANETARY GEARBOX
Overview of L Planetary Gearbox
- Wide range of reduction ratios from 1:3~1:100
- An adapter-bushing connection that could attach to any motor
- Quiet operation & Smooth transmission
- Good sealing with a compact structure
- Any installation direction

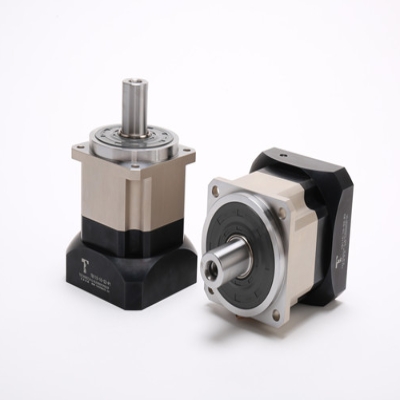

L high precision planetary gearbox
Indication of Model Numbers of L Speed Reducers
Descriptions of L Planetary Gearbox
L series precision planetary reducer is an in-line planetary gearbox. Which adopts a high-quality alloy steel casing, high-rigidity helical gears and double support structure. So that the reducer has good precision and high reliability. L series reducers can be directly matched with servo motors or stepper motors, ensuring a transmission efficiency of up to 97%.
Features of L Planetary Gearbox
- High rigidity & High torque
The shell of the L series precision planetary gearbox of fame is making of high-quality alloy steel. And the bearing adopts the imported NDK bearings. The high-quality material ensures high transmission torque and large load capacity.
- Small vibration & Low noise
The structure of planetary reducer and helical gears with small vibration and low noise can maximize the strength of the L precision planetary gearbox.
- High positioning accuracy
The L series planetary speed reducer is manufacturing with advanced processing technology at home, and broad, which ensures the high precision and the backlash is as low as 3 arcmins.
- Long service life
Advanced synthetic grease with good durability is adopted, and there is no requirement for long time maintenance. It has good sealing and no grease leakage.
Applications
L series precision planetary reducers have widely applications in transportation machinery, construction machinery, metallurgical machinery, mining machinery, petrochemical machinery, construction machinery, light industrial textile machinery, medical equipment, injection molding machines, linear slides, pick and place automation, gantry racks, cutting and welding machines and instruments machinery.

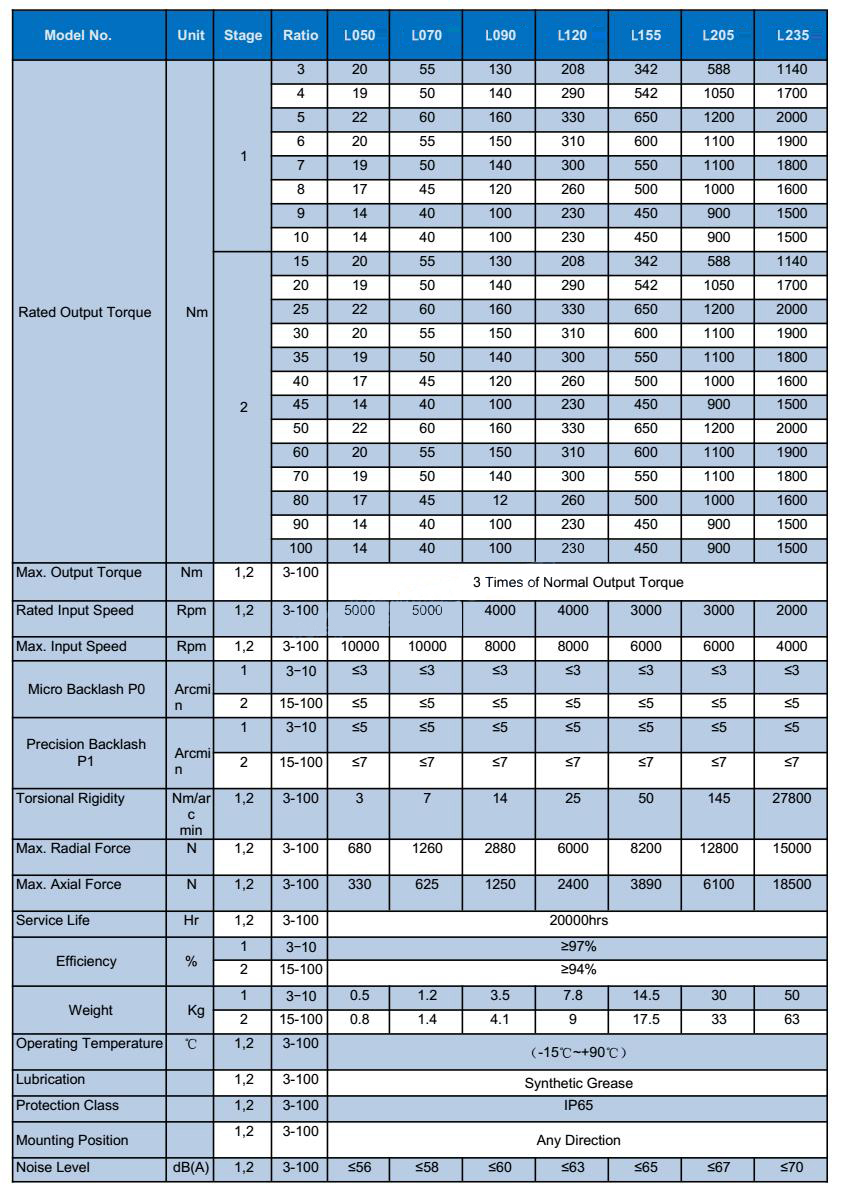

Specification Table of L Planetary Gear Reducer

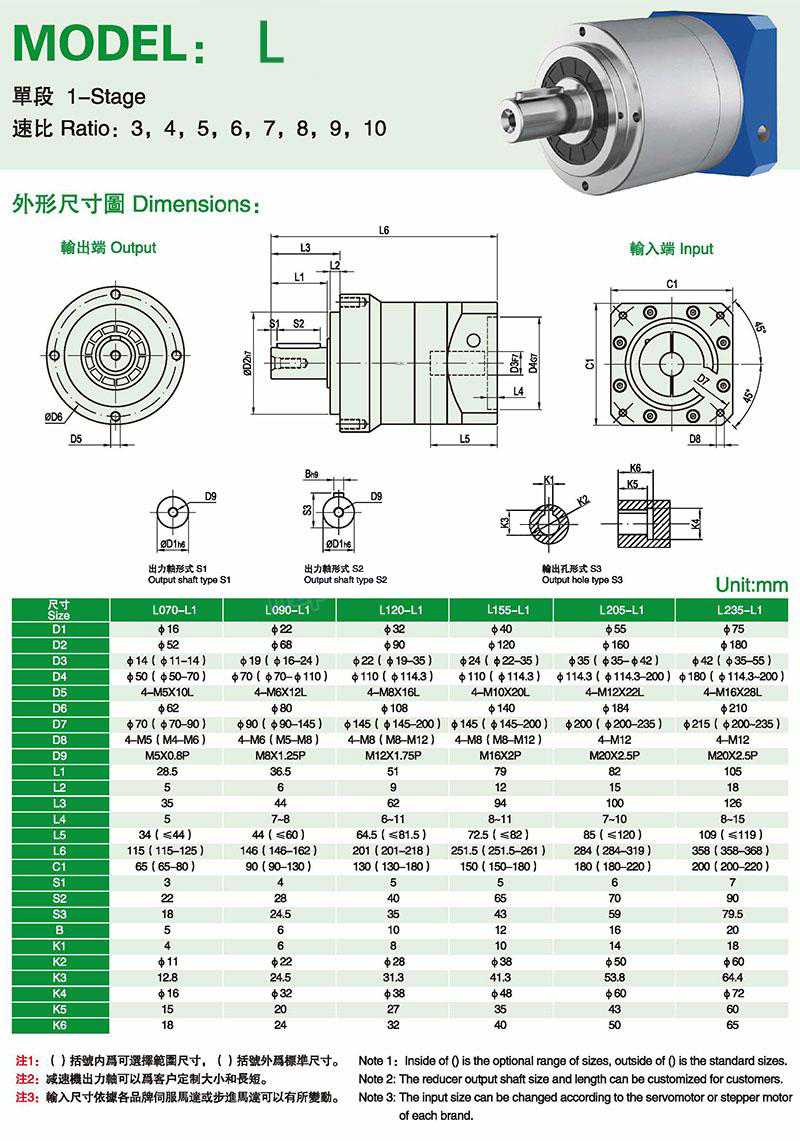

Catalog of L Precision Speed Reducer
