Post Hole Digger Gearbox – Replacement of Comer Code L196J

Post Hole Digger Gearbox – Replacement of Comer Code L196J

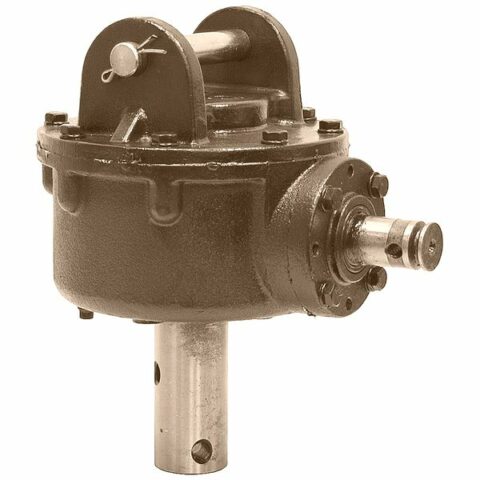

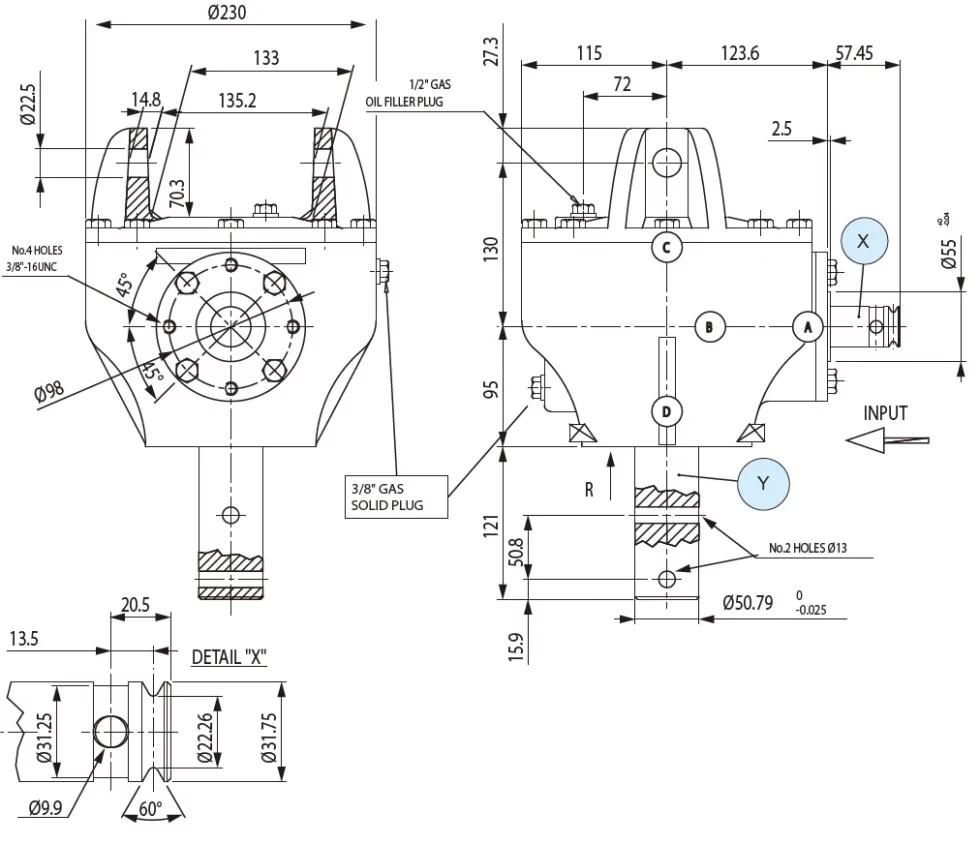

Brand new, T model L196J vertical(post hole digger gearbox), right angle gearbox. Originally manufactured for PTO-driven posthole digger systems and tapered roller bearings. Spring-loaded triple lip seals. Clockwise input rotation gives clockwise output rotation. Cast iron housing. Designed to free-hang from a supporting structure or boom that is connected to it with a 7/8″ diameter pin at the top of the gearbox housing. Four 3/8 “-16 tapped holes on 3-3/8” diameter B.C. to mount the input shaft shield and four 3/8 “-16 tapped holes on 4-1/8” diameter B.C. to mount the output shaft shield. For ships without oil, the user must add oil prior to use per the user’s manual.

Post Hole Digger Gearbox Oiling

The gearbox is shipped without oil for shipping purposes. It takes 80-90 gear oil. Look at the pictures and the one of the back of the gearbox; you will see a plug on the top and a tiny little pipe plug on the bottom right side. The top hole is where you put the oil in; you take out the pipe plug, and as you pour it in and when it starts running out of the pipe plug hole, it is complete. Of course, you do this with the box mounted and upright. You only fill the box roughly halfway; if you overfill, the breather plug will release some of the pressure, but you also run the risk of blowing out one of your oil seals, so try to maintain adequate oil levels.

Post Hole Digger Gearbox for Sale

Stock up post hole digger gearbox parts from us to make fast and easy repairs on the fly. If you need new post hole digger gearboxes to replacement post hole digger gearboxes, we have you covered. Our post hole digger parts and auger points help you install fencing efficiently. Post hole digger gearboxes are engineered for smooth, long-lasting performance.
Post hole digger gearbox from us can help you efficiently install fencing, even on large acreages. We also offer post hole digger gearboxes if you need to replace the gearbox on an older digger. Screw-style auger points work great for digging into hard, compact soil. Keep an extra auger cutting edge on hand so you can quickly swap out a damaged cutting edge.
We offer post hole digger gearbox parts to fit agricultural or industrial model diggers. These dependable post hole digger gearboxes have been field tested to provide excellent performance job after job. Get the auger points and other farm machinery parts here, where customer satisfaction is our No. 1 priority. From an auger cutting edge to rotary mower and gearbox parts, we have something for everyone.

PTO Shaft for L196J post hole digger gearbox

Agricultural equipment such as tractors, combines, and harvesters use PTO shafts. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant compression of the shaft can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of an agricultural implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end by using a universal joint, while the rear shaft can be welded directly to the tractor.
We carry all replacement parts for this gearbox, posthole diggers, PTO shafts, and drills. We also have lots more agricultural details. Just check out our website store.

Heavy Duty Post Hole Digger Gearbox Manufacturers

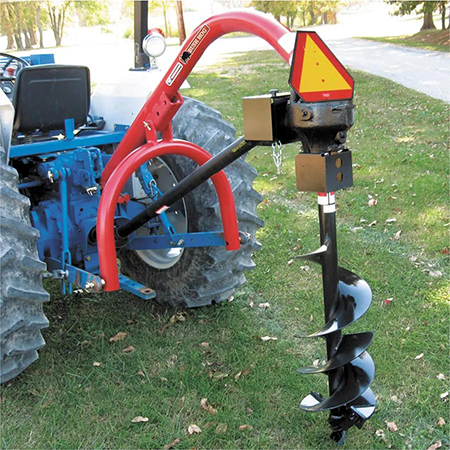

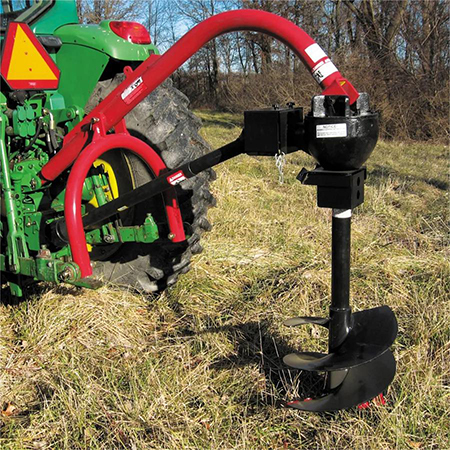

The 3 point post hole digger gearbox makes landscaping easy for homeowners, farmers, landscapers, and other professionals. It’s the perfect tool for creating accurate holes quickly. Simply attach the post hole digger to your 3-point hitch for heavy duty hole digging, and get your jobs done fast. You can dig deep, too, since this equipment can drill to a depth of 40 inches.
This rugged equipment comes complete with a shielded PTO shaft with a pin protected shear. It also features a heavy duty post hole digger gearbox, a tubular steel boom and yoke, a 3-point frame, and hardware. The 3-point hitch attaches directly to your tractor; it fits category 1, 3-point hitch tractors. It can be used with a variety of different augers, all of which are sold separately. We also can post hole digger gearbox wholesale,if you want to know about post hole digger gearbox price, please email us.

FAQ

Q: Are you a trading company or manufacturer?
A: Our group consists of 3 factories and 2 abroad sales corporations.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time? What are your terms of payment?
A: Generally, it is 40-45 days. The time may vary depending on the product and the level of customization. The payment for standard products is 30% T/T in advance, balance before shipment.
Q: What is the exact MOQ or price for your product?
A: As an OEM company, we can provide and adapt our products to a wide range of needs. Thus, MOQ and price may greatly vary with size, material, and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please get in touch with us with all the relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
