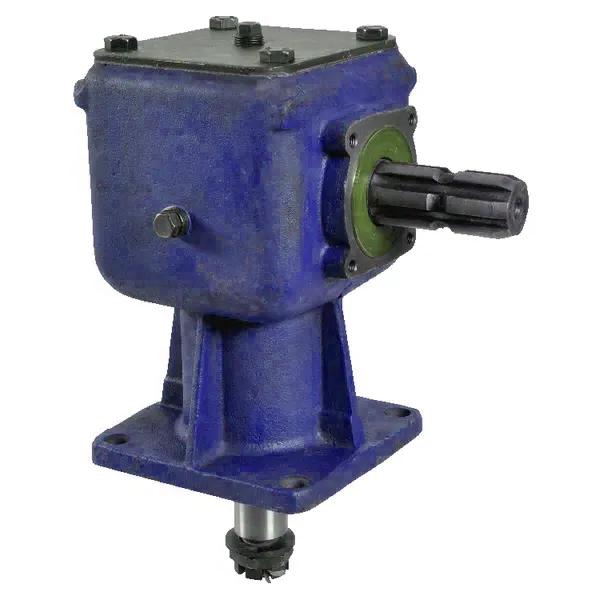

Rotary Mower Gearboxes – Replacement of Comer Code LF-211J
LF-211J Rotary Mowers Gearboxes are a type of rotary mower gearbox that is designed for use in agricultural and industrial applications. It is a high-performance gearbox that is designed to provide reliable and efficient power transmission for rotary mowers. The LF-211J rotary mower gearbox features a compact design and is made from high-quality materials, including high-strength steel and aluminum. It has a gear ratio of 1:1.46 and is capable of handling high torque loads. The rotary mower gearbox is designed to be easy to install and maintain, with a simple and robust design that minimizes the risk of failure. It is also designed to operate quietly, which can be important in applications where noise levels need to be kept to a minimum.
Overall, the rotary mower gearbox LF-211J is a reliable and efficient solution for agricultural and industrial applications that require high-performance power transmission. Its compact design, high torque capacity, and ease of installation and maintenance make it a popular choice in a variety of industries.

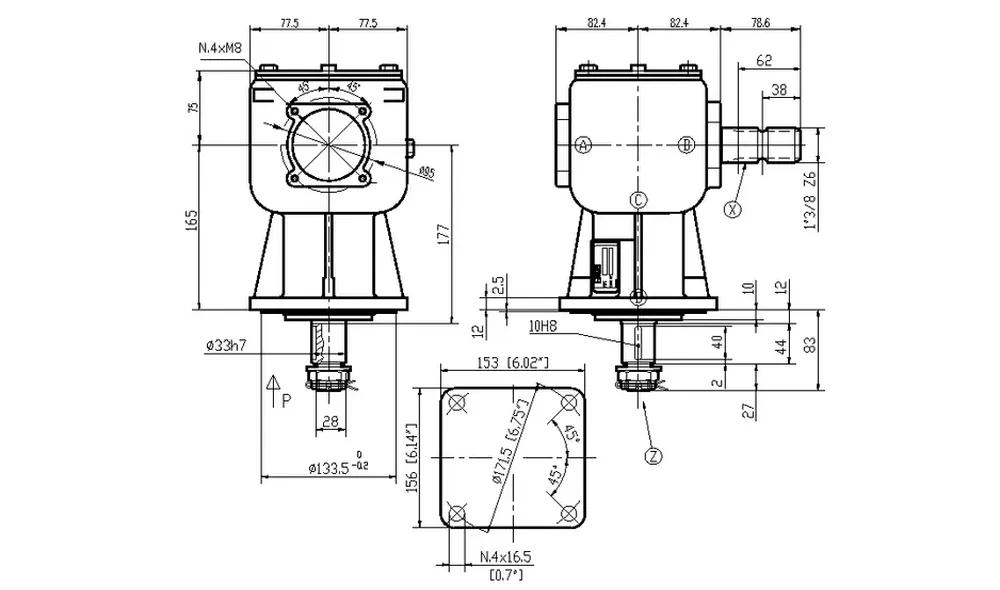

Specifications
Product Description |
Rotary Mower Gearboxes – Replacement of Comer Gearbox LF-211J
|
---|---|
Product details |
|
Application range |
Mowers
|
Consists of |
|
Contains oil |
No
|
Max. oil capacity |
0.8 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GGG40
|
Weight |
14 kg
|
Gear arrangement Increasing |
3
|
Input power kW / HP Increasing |
14.7 / 20 kW/HP
|
Input shaft Increasing |
X
|
Output Torque DaNm Increasing |
8.9 daNm
|
Ratio Increasing |
1: 2.83
|
Ratio Reducing |
2.83 : 1
|
Shaft X |
1 3/8″ (6)
|
Shaft Z |
33 h7
|
LF-211J Rotary Mower Gearbox Parts
The LF-211J rotary mower gearbox is making up of several parts that work together to provide reliable and efficient power transmission. Here are some of the main parts of the rotary mower gearbox:
- Housing: The housing is the outer casing of the gearbox that encloses the internal components.
- Input shaft: The input shaft is the shaft that connects to the power source and transmits power to the rotary mower gearbox.
- Output shaft: The output shaft is the shaft that connects to the rotary mower and transmits power to the cutting blades.
- Gears: The gears are the internal components of the rotary mower gearbox that transmit power from the input shaft to the output shaft. The LF-211J gearbox has a gear ratio of 1:1.46.
- Bearings: The bearings are supportting to the rotating shafts and reduce friction.
- Seals: The seals are preventting oil leaks and keep contaminants out of the rotary mower gearbox.
- Mounting flange: The mounting flange is working to attach the gearbox to the rotary mower.
Overall, the LF-211J rotary mower gearbox is a complex assembly of parts that work together to provide reliable and efficient power transmission. Each part plays an important role in the operation of the gearbox, and proper maintenance and replacement of worn or damaged parts is essential for optimal performance.
