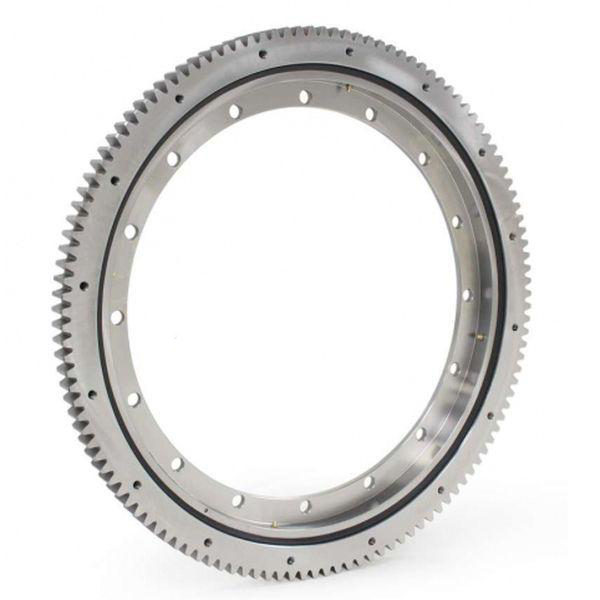

Light Series Slewing Bearings
The light slewing bearing mainly includes the external ring & internal ring, the grease fittings, the sealing belt, the spacers, the load plug, and the taper pin, the characteristics: the inner ring and the external ring are both L-shaped; The flank surface of the ring is provided with a grease cup, steel balls are assembled between the outer ring and internal ring on integration.
Light Series Slewing Bearings
The light slewing bearing mainly includes the external ring & internal ring, the grease fittings, the sealing belt, the spacers, the load plug, and the taper pin, the characteristics: the inner ring and the external ring are both L-shaped; The flank surface of the ring is provided with a grease cup, steel balls are assembled between the outer ring and internal ring on integration. The steel balls and the spacers are installed through the load plug and the taper pin to protect the ball from running. A spacer separates each ball.
|

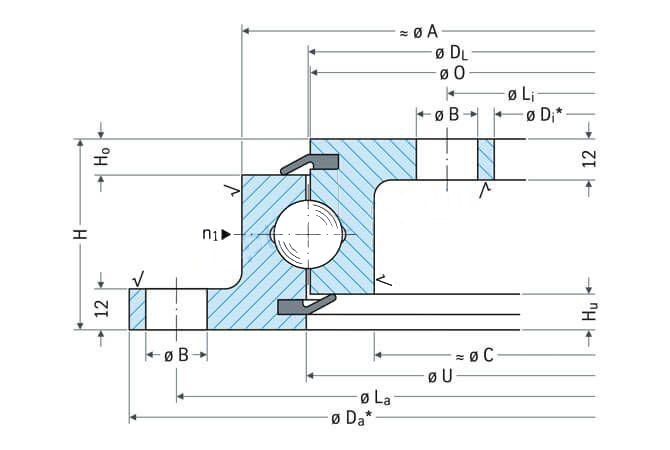

Structural features: 1, Light series, with external gear teeth/with internal gear teeth/without gear teeth 2, Inner ring in the form of an L-section ring/outer ring in the form of an L-section ring/inner and outer rings in the form of L-section rings. 3, Chrome steel balls arranged with plastic spacers. |
Product parameters

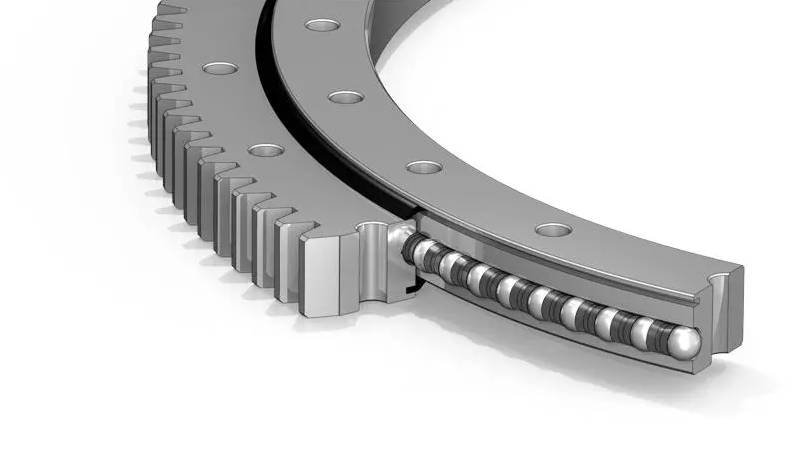

(1) Model and size parameters of external gear light series slewing bearing
No Model DL(mm) Da Di H La Li na B/M ni B/M Hu d m z b (KN) (KN) Weight(kg) 1 0400 414 504 304 56 455 332 10 M12 12 18 10.5 495 5 99 45.5 11.75 23.5 29.3 2 0500 544 640.8 434 56 585 462 14 M12 14 18 10.5 630 6 105 45.5 14.2 28.4 39.5 3 0600 644 742.8 534 56 685 562 16 M12 16 18 10.5 732 6 122 45.5 14.2 28.4 47.6 4 0700 744 838.8 634 56 785 662 18 M12 16 18 10.5 828 6 138 45.5 18.93 37.86 53.5 5 0800 844 950.4 734 56 885 762 18 M12 18 18 10.5 936 8 117 45.5 18.93 37.86 65.1 6 0900 944 1046.4 834 56 985 862 20 M12 20 18 10.5 1032 8 129 45.5 18.93 37.86 69.6 7 1000 1094 1198.4 984 56 1135 1012 22 M12 20 18 10.5 1184 8 148 45.5 18.93 37.86 83

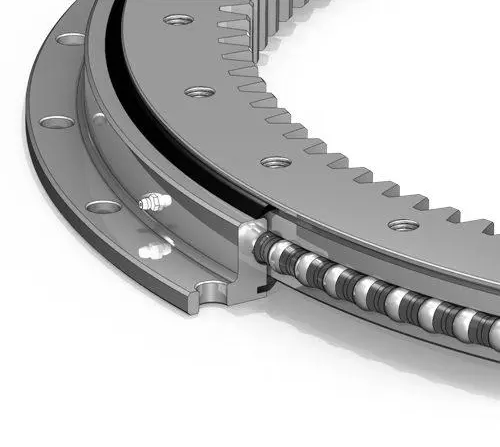

(2) Internal gear light series slewing bearing model size parameters
 |
 |
| No | Model | DL(mm) | Da | Di | H | La | Li | na | B/M | ni | B/M | Hu | d | m | z | b | (KN) | (KN) | axial | radial | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0400 | 414 | 518 | 326.5 | 56 | 490 | 375 | 8 | 18 | 12 | M12 | 10.5 | 335 | 5 | 67 | 45.5 | 13.54 | 27.08 | ≤0.5 | ≤0.5 | 27.1 |
| 2 | 0500 | 544 | 648 | 445.2 | 56 | 620 | 505 | 10 | 18 | 16 | M12 | 10.5 | 456 | 6 | 76 | 45.5 | 16 | 32 | ≤0.5 | ≤0.5 | 36.9 |
| 3 | 0600 | 644 | 748 | 547.2 | 56 | 720 | 605 | 12 | 18 | 18 | M12 | 10.5 | 558 | 6 | 93 | 45.5 | 15.62 | 31.24 | ≤0.5 | ≤0.5 | 43.7 |
| 4 | 0700 | 744 | 848 | 649.2 | 56 | 820 | 705 | 12 | 18 | 20 | M12 | 10.5 | 660 | 6 | 110 | 45.5 | 15.32 | 30.64 | ≤0.5 | ≤0.5 | 51.1 |
| 5 | 0800 | 844 | 948 | 737.6 | 56 | 920 | 805 | 14 | 18 | 20 | M12 | 10.5 | 752 | 8 | 94 | 45.5 | 20.8 | 41.6 | ≤0.5 | ≤0.5 | 61.6 |
| 6 | 0900 | 944 | 1048 | 841.6 | 56 | 1020 | 905 | 16 | 18 | 22 | M12 | 10.5 | 856 | 8 | 107 | 45.5 | 20.49 | 40.98 | ≤0.5 | ≤0.5 | 65.8 |
| 7 | 1000 | 1094 | 1198 | 985.6 | 56 | 1170 | 1055 | 16 | 18 | 24 | M12 | 10.5 | 1000 | 8 | 125 | 45.5 | 20.16 | 40.32 | ≤0.5 | ≤0.5 | 80.7 |

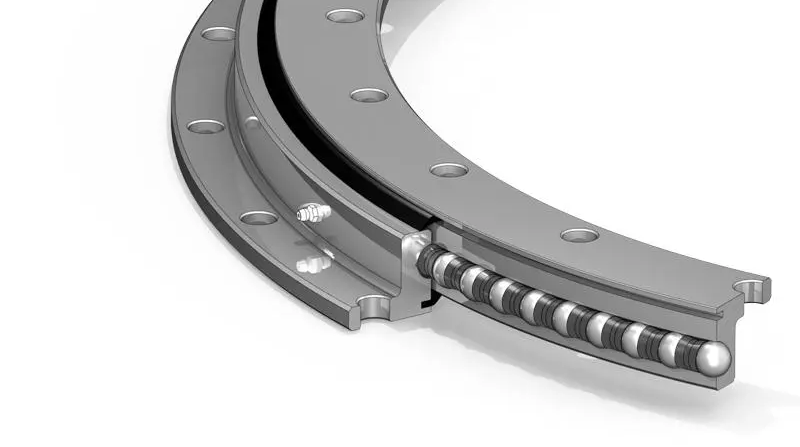

(3) Model parameters of gearless light series slewing bearing
No Model DL(mm) Da Di H La Li na B/M ni B/M Hu Ho axial radial Weight(kg) 1 0400 414 518 304 56 490 332 8 18 12 18 10.5 10.5 ≤0.5 ≤0.5 23.4 2 0500 544 648 434 56 620 462 10 18 14 18 10.5 10.5 ≤0.5 ≤0.5 31 3 0600 644 748 534 56 720 562 12 18 16 18 10.5 10.5 ≤0.5 ≤0.5 36.4 4 0700 744 848 634 56 820 662 12 18 16 18 10.5 10.5 ≤0.5 ≤0.5 42.8 5 0800 844 948 734 56 920 762 14 18 18 18 10.5 10.5 ≤0.5 ≤0.5 47.8 6 0900 944 1048 834 56 1020 862 16 18 20 18 10.5 10.5 ≤0.5 ≤0.5 53.1 7 1000 1094 1198 984 56 1170 1012 16 18 20 18 10.5 10.5 ≤0.5 ≤0.5 61.9

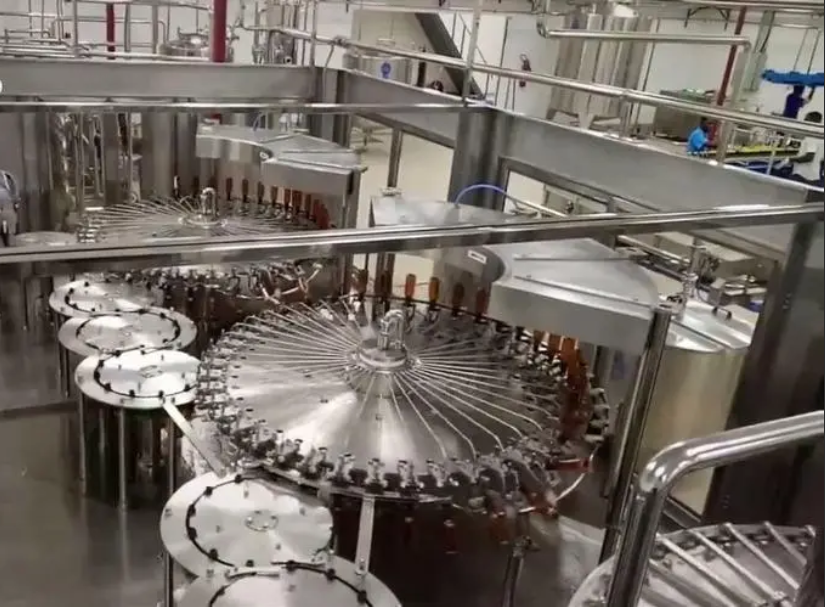

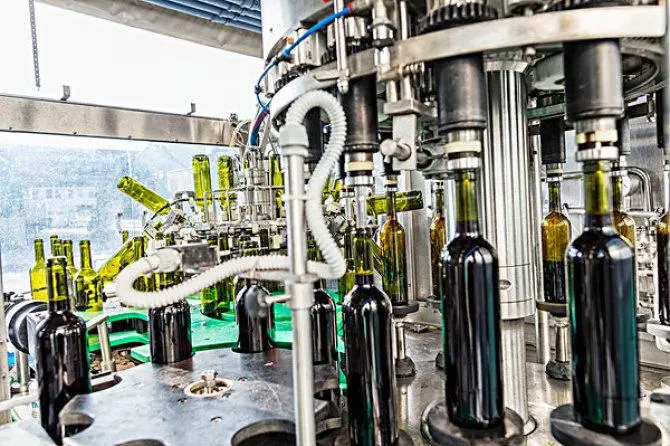

Applications of light series slewing bearings

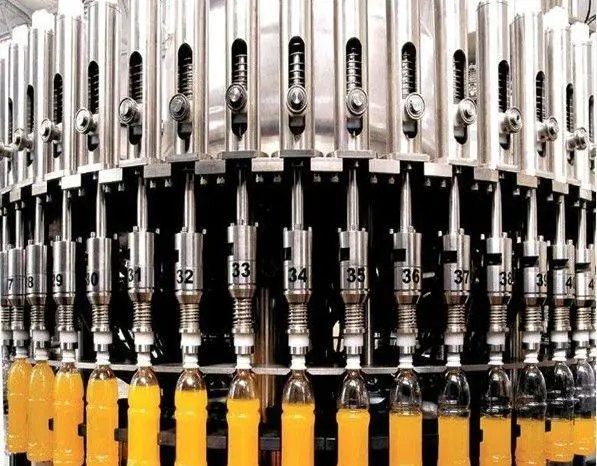

The light series slewing bearing has the same structure as the standard slewing bearing. But the weight is weak and rotates flexibly. Widely used in the food machinery, canning machinery, environmental machinery, etc.
 |
 |
 |
