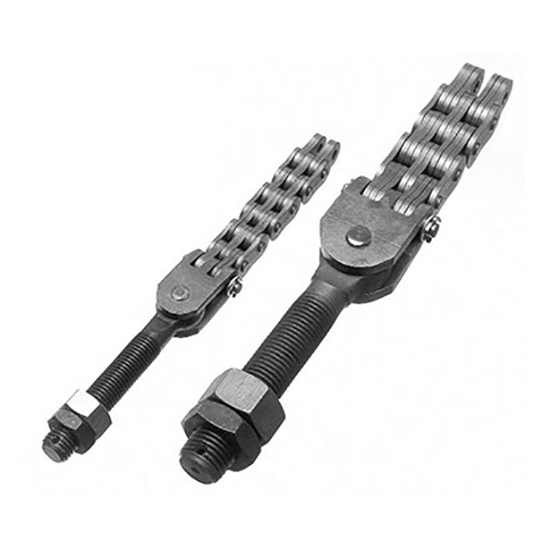

LL series leaf chains
- Standardization: LL series leaf chains adhere to ISO and DIN dimensional standards, ensuring compatibility and interchangeability with other manufacturers’ chains.
- Applications: They are used in industrial lifting applications and other mechanical operations where robust and reliable chain operation is required.
- Range: LL series leaf chains are available in sizes ranging from LL08 to LL40, covering a variety of load capacities and operational needs.
- Customization: They can be supplied in custom lengths to suit specific requirements of different applications.
- Packaging Options: LL series leaf chains are typically available in packaging options such as 10ft boxes, 50ft reels, or 100ft reels, providing flexibility depending on the quantity needed.
Diameter Data
DIN/ISO
Chain No. |
Pitch | Plate lacing | Plate thickness | Plate depth | Pin
diameter |
Pin length | Ultimate tensile strength | Average tensile strength | Weight per meter |
P | T
max |
h2
max |
d2
max |
L
max |
Q
min |
Qo | q | ||
mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
LL0822 | 12.7 | 2X2 | 1.55 | 10.9 | 4.45 | 8.9 | 18.0 | 20.7 | 0.43 |
LL0844 | 4X4 | 15.6 | 36.0 | 36.3 | 0.83 | ||||
LL0866 | 6X6 | 22.0 | 54.0 | 51.6 | 1.23 | ||||
LL0888 | 8X8 | 28.5 | 72.0 | 80.0 | 1.64 | ||||
LL1022 | 15.875 | 2X2 | 1.65 | 13.6 | 5.08 | 9.4 | 22.0 | 25.8 | 0.57 |
LL1044 | 4X4 | 16.2 | 44.0 | 52.9 | 1.10 | ||||
LL1066 | 6X6 | 22.9 | 66.0 | 76.3 | 1.64 | ||||
LL1088 | 8X8 | 28.8 | 88.0 | 101.9 | 2.17 | ||||
LL1222 | 19.05 | 2X2 | 1.90 | 16.0 | 5.72 | 10 | 29.0 | 33.8 | 0.76 |
LL1244 | 4X4 | 17.4 | 58.0 | 66.8 | 1.50 | ||||
LL1266 | 6X6 | 25.1 | 97.0 | 100.2 | 2.23 | ||||
LL1288 | 8X8 | 32.9 | 118.0 | 132.9 | 2.97 | ||||
LL1622 | 25.4 | 2X2 | 3.10 | 21.0 | 8.28 | 17 | 60.0 | 66.1 | 1.64 |
LL1644 | 4X4 | 29.4 | 120.0 | 129.8 | 3.20 | ||||
LL1666 | 6X6 | 42.4 | 180.0 | 197.8 | 4.77 | ||||
LL1688 | 8X8 | 54.9 | 240.0 | 278.0 | 6.36 | ||||
LL2022 | 31.75 | 2X2 | 3.50 | 26.0 | 10.19 | 18.7 | 95.0 | 108.9 | 2.44 |
LL2044 | 4X4 | 33.2 | 190.0 | 219 | 4.79 | ||||
LL2066 | 6X6 | 47.8 | 285.0 | 325.0 | 7.14 | ||||
LL2088 | 8X8 | 64.0 | 380.0 | 435.1 | 9.52 | ||||
LL2422 | 38.1 | 2X2 | 5.20 | 33.0 | 14.63 | 25.4 | 170.0 | 194.7 | 4.31 |
LL2444 | 4X4 | 45.5 | 340.0 | 380.2 | 8.45 | ||||
LL2466 | 6X6 | 65.8 | 510.0 | 569.8 | 12.57 | ||||
LL2488 | 8X8 | 86.6 | 680.0 | 775.2 | 16.58 | ||||
LL2822 | 44.45 | 2X2 | 6.45 | 36.7 | 15.9 | 32.2 | 200.0 | 224.7 | 5.10 |
LL2844 | 4X4 | 56.4 | 400.0 | 448.3 | 9.90 | ||||
LL2866 | 6X6 | 80.3 | 600.0 | 672.5 | 14.60 | ||||
LL2888 | 8X8 | 105.2 | 800.0 | 896.0 | 19.40 | ||||
LL3222 | 50.8 | 2X2 | 6.45 | 41.9 | 17.81 | 33.4 | 260.0 | 291.3 | 6.77 |
LL3244 | 4X4 | 59.2 | 520.0 | 582.9 | 13.25 | ||||
LL3266 | 6X6 | 85 | 780.0 | 874.0 | 19.73 | ||||
LL3288 | 8X8 | 112.2 | 1040.0 | 1176.0 | 26.26 |
