Loading chain for metallurgical industry
Loading chain for metallurgical industry
Metallurgical Industry Applications of Chains
In the metallurgical industry, continuous innovation and research have led to the development of specialized chains designed to meet the demanding conditions of metal production and handling. These chains are essential for various applications, including the conveyance of materials, cooling processes, and specialized tasks. Here’s an overview of the types and features of chains used in this industry:
Applications
- Plate Conveyors: Chains used for transporting ore, waste, and other materials on plate conveyors. These chains are designed to handle heavy loads and withstand harsh conditions.
- Metal Cooling Conveyors: Chains for cooling processes in steel production, such as cooling conveyors for steel pipes, bars, and other metal products. They ensure efficient cooling while enduring high temperatures.
- Steel Product Drawing: Chains used in the drawing process of steel products, providing reliable movement and positioning of metal components.
- Specialty Chains: Custom chains designed for specific applications within the metallurgical industry, tailored to meet unique operational requirements.
Features
- High Reliability: Designed for continuous operation under demanding conditions, ensuring dependable performance over long periods.
- Durability: Built to withstand high temperatures, heavy loads, continuous impact, dust, iron filings, scales, corrosion, and high humidity.
- Customized Solutions: Personalized system solutions are offered to meet specific user requirements, ensuring optimal performance for various applications.
Main Products
- Steel Coil Conveying Chain: Specialized chains for transporting steel coils efficiently within steel mills and processing facilities.
- Steel Pipe Production Line Chain: Chains designed for use in steel pipe production lines, handling the rigorous demands of pipe manufacturing.
- Steel Mill Conveying Chains: Various chains used for conveying materials and products within steel mills, ensuring reliable transport and handling.
- Cathode Copper Conveyor Chain: Chains specifically designed for the conveyance of cathode copper, crucial for copper production processes.

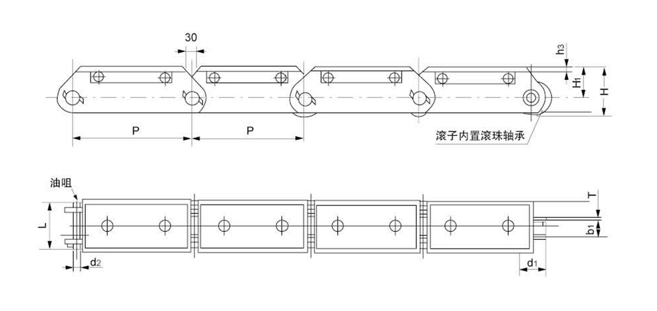

Diameter Data
| Chain
No. |
Pitch
P mm |
Diameter of Roller d1(max) mm | Inner Width of Inner Link b1(min) mm | Data of Sidebar | Data of Pin | Tensile Strength Q(min) KN | ||||
| T
mm |
H
mm |
H1
mm |
H3
mm |
d2
mm |
L
mm |
|||||
| WH60300 | 300 | 125 | 65 | 12.7 | 171 | 42.5 | 20 | 36 | 165 | 600 |
| WH90400 | 400 | 135 | 79 | 12.7 | 182.5 | 54 | 13.5 | 36 | 179 | 900 |
| WH130400 | 400 | 150 | 84 | 16 | 195 | 61 | 14 | 46 | 197 | 1300 |
| WH160500 | 500 | 175 | 91 | 16 | 227 | 69 | 18.5 | 46 | 205 | 1600 |
| 3754378 | 450 | 135 | 70 | 12.7 | 171.5 | 48.5 | 19 | 38 | 157.5 | 882 |
| WH315 | 315 | 120 | 80 | 10 | 180 | 65 | 15 | 36 | 180 | 880 |
| WH250 | 250 | 100 | 55 | 8 | 150 | 55 | 10 | 28 | 146 | 520 |
