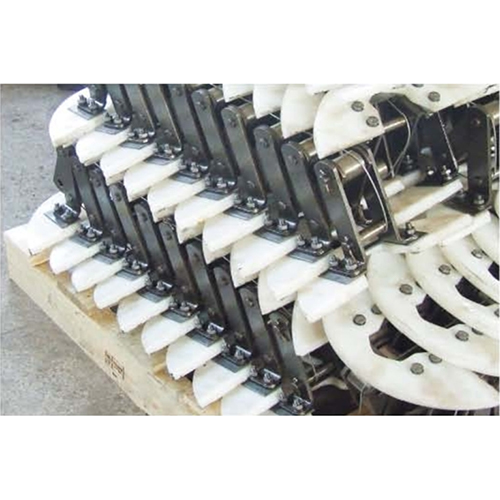

M series conveyor chain for grain machines with attachment
M series conveyor chain for grain machines with attachment
– The standard material for accessories is carbon steel, but stainless steel accessories can also be manufactured upon request.
– The standard material for the chain body is DT and AT specifications, but other chain specifications can be selected based on the nature of the transported material.
Diameter Data
| Pitch | Diameter | Inner Width | Diameter | Height of | Thickness of | Width of | Tensile | |
| Chain | of Roller | of Inner Link | of Pin | Sidebar | Sidebar | Scraper | Strength | |
| No. | P | d1(max) | b1(min) | d2 | h | T | B | Q(min) |
| mm | mm | mm | mm | max | mm | mm | KN | |
| M80-100 | 100 | 40 | 25 | 10 | 28 | 6 | 6 | 65 |
| M80-125 | 125 | 50 | 27 | 12 | 32 | 6 | 6 | 80 |
| M80-160 | 160 | 50 | 27 | 12 | 36 | 6 | 6 | 90 |
| M80-160H | 160 | 60 | 32 | 15 | 50 | 8 | 8 | 130 |
| M90-200 | 200 | 80 | 40 | 18 | 50 | 10 | 10 | 210 |
Dimensions of Welded Attachment Sidebar
| B2 | B3 | d4 | L | L1 | |
| Chain NO. | mm | mm | mm | mm | mm |
| M80-100 | 50 | 60 | 9 | 60 | 80 |
| M80-125 | 60 | 71 | 11 | 75 | 100 |
| M80-160 | 60 | 71 | 11 | 80 | 110 |
| M80-160H | 65 | 78 | 13 | 80 | 120 |
| M90-200 | 70 | 90 | 15 | 100 | 140 |
