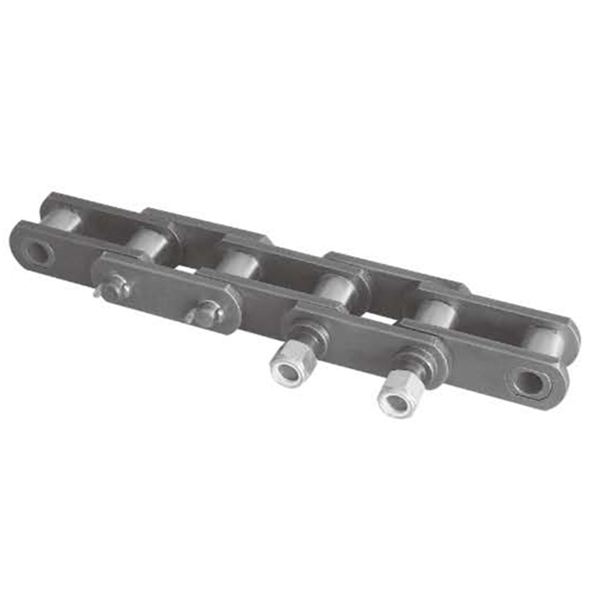

M series conveyor chain for mine machinery
Main Types of Conveyor Chains for Mining
Drag Chains:
- Application: Used for moving materials along a horizontal or inclined path.
- Features: Heavy-duty construction and robust link design to handle abrasive materials.
Scraper Chains:
- Application: Used in conveyor systems where materials are scraped or pushed along the chain.
- Features: Includes scraper blades or flights attached to the chain to move materials efficiently.
Plate Chains:
- Application: Used in bulk handling systems for transporting heavy and bulky materials.
- Features: Made from durable materials with wide, flat plates for support.
Bucket Chains:
- Application: Used in bucket elevators for lifting bulk materials vertically.
- Features: Equipped with buckets that scoop and lift materials as the chain moves.

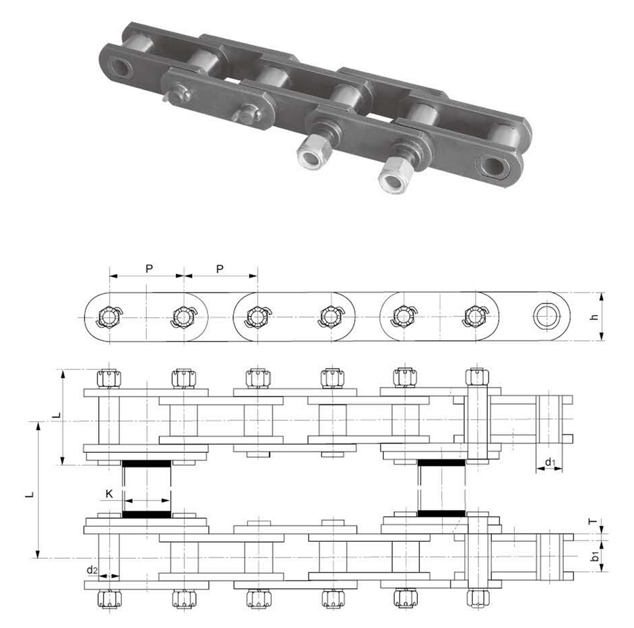

Diameter Data
China
No. |
Pitch
P mm |
Inner Width of
Inner Link b1(min) mm |
Diameter of
Bushing d1 mm |
Pin | Sidebar | Attached Sidebar | Min. Tensile Strength Q(min)
KN |
|||
L
mm |
d2
mm |
T
mm |
h
mm |
K
mm |
L
mm |
|||||
5212M | 200 | 83.5 | 74.4 | 265.7 | 36.07 | 22 | 132 | 130 | 2300 | 2000 |
0150M | 153.67 | 83.5 | 44.45 | 198.3 | 22.23 | 12.7 | 65.3 | 88.9 | 1560 | 780 |
9835M | 88.9 | 39.8 | 44.45 | 156.5 | 22.23 | 12.7 | 63.5 | 44.5 | 1207 | 780 |
