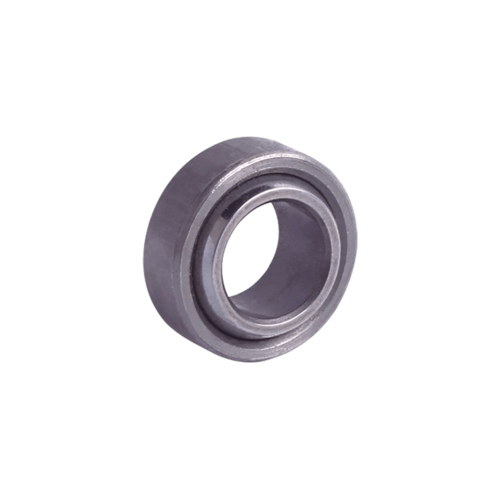

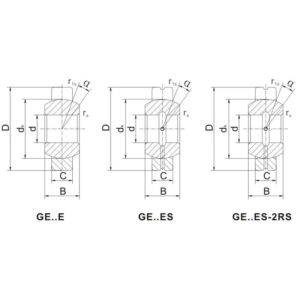

Maintenance-free, inch dimensions Radial spherical Plain Bearings cOM..T /HCOM..T
Radial spherical Plain Bearings COM..T /HCOM..T
1- Sliding contact surfaces: steel / PTFE composite material.
2- Outer ring is carbon steel; Inner ring is bearing steel GCr15 with hard chrome plating. 3- Outer ring is pressed around inner ring. 4- Outer race lined with PTFE composite material. 5- Dimensions in inches. |
Part No. | Dimensions | Load ratings | Weight | |||||||
d | d1 | B | C | D | dk | m | a
≈ |
Kg
≈ |
||
COM 3 T | 4.826 | 7.44 | 7.14 | 5.54 | 14.29 | 10.31 | 0.381 | 11 | 21.68 | 0.006 |
COM 4 T | 6.350 | 9.25 | 8.71 | 6.35 | 16.67 | 12.70 | 0.560 | 13.5 | 33.02 | 0.010 |
COM 5 T | 7.938 | 10.64 | 9.53 | 7.14 | 19.05 | 14.27 | 0.810 | 12 | 43.20 | 0.014 |
COM 6 T | 9.525 | 13.11 | 10.31 | 7.92 | 20.64 | 16.66 | 0.810 | 10 | 56.04 | 0.017 |
COM 7 T | 11.113 | 13.46 | 11.10 | 8.71 | 23.02 | 17.45 | 0.810 | 8.0 | 63.07 | 0.021 |
COM 8 T | 12.700 | 16.26 | 12.70 | 9.91 | 25.40 | 20.65 | 0.810 | 9.5 | 88.39 | 0.029 |
COM 9 T | 14.288 | 18.03 | 14.27 | 11.10 | 27.78 | 23.01 | 0.810 | 9.5 | 110.94 | 0.039 |
COM 10 T | 15.875 | 19.81 | 15.88 | 12.70 | 30.16 | 25.40 | 0.810 | 8.5 | 141.96 | 0.050 |
COM 12 T | 19.050 | 23.37 | 19.05 | 15.06 | 36.51 | 30.15 | 1.120 | 9.0 | 212.94 | 0.093 |
COM 14 T | 22.225 | 24.89 | 22.23 | 17.86 | 39.69 | 33.32 | 1.120 | 9.5 | 279.93 | 0.119 |
COM 16 T | 25.400 | 28.40 | 25.40 | 20.24 | 44.45 | 38.10 | 1.120 | 10 | 368.25 | 0.175 |
HCOM 16 T | 25.400 | 34.54 | 25.40 | 19.84 | 50.80 | 42.85 | 0.810 | 9.0 | 472.46 | 0.251 |
HCOM 19 T | 30.163 | 40.89 | 30.15 | 23.80 | 60.33 | 50.80 | 0.810 | 8.5 | 672.00 | 0.406 |
HCOM 20 T | 31.750 | 40.89 | 30.15 | 23.80 | 60.33 | 50.80 | 0.810 | 8.5 | 672.00 | 0.406 |
HCOM 24 T | 38.100 | 47.24 | 34.93 | 27.79 | 69.85 | 58.72 | 0.810 | 8.5 | 906.96 | 0.616 |
HCOM 28 T | 44.450 | 53.59 | 39.67 | 31.75 | 79.38 | 66.68 | 1.120 | 8.0 | 1176.61 | 0.884 |
HCOM 32 T | 50.800 | 59.94 | 44.45 | 34.93 | 88.90 | 74.60 | 1.120 | 8.5 | 1448.06 | 1.198 |
