Maintenance-free, inch dimensions Rod Ends CF..T CF..TS

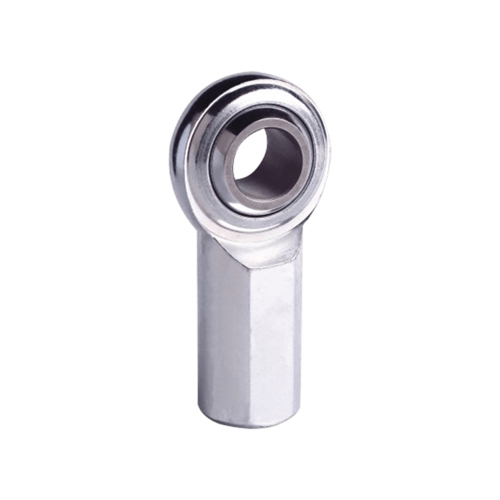

Rod Ends Bearing CF..T CF..TS
– Rod body is pressed around inner ring. – Outer race is lined with PTFE composite material. – If assembling with rod, please add suffix “S”, e.g. CF8TS. – For left-hand thread, please add suffix “L” ,e.g. CFL 8 T. – All with turn part. Material and surface treatments: – Body: medium carbon steel 45, zinc plating; steel ball: bearing steel with hard chrome plating; with PTFE composite material. – Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation.Steel ball: alternative stainless steel 440C. |
Rod Ends Bearing CF..T CF..TS Details
Part No. | Dimensions | Load ratings | Weight | ||||||||||

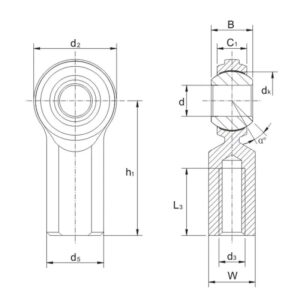

d | B | C1 | h1 | d2 | d5 | W | dk | l3
min |
d3
2B |
a
≈ |
Kg
≈ |
||
CF5T | 0.3125 | 0.437 | 0.312 | 1.375 | 0.875 | 0.500 | 0.437 | 0.625 | 0.687 | 5/16-24 | 11 | 28.693 | 0.036 |
CF6T | 0.3750 | 0.500 | 0.359 | 1.625 | 1.000 | 0.687 | 0.562 | 0.719 | 0.812 | 3/8-24 | 11 | 38.371 | 0.059 |
CF7T | 0.4375 | 0.562 | 0.406 | 1.812 | 1.125 | 0.750 | 0.625 | 0.812 | 0.937 | 7/16-20 | 10.5 | 41.676 | 0.082 |
CF8T | 0.5000 | 0.625 | 0.453 | 2.125 | 1.312 | 0.875 | 0.750 | 0.937 | 1.062 | 1/2-20 | 10 | 67.299 | 0.132 |
CF10T | 0.6250 | 0.750 | 0.484 | 2.500 | 1.500 | 1.000 | 0.875 | 1.125 | 1.375 | 5/8-18 | 13 | 75.271 | 0.195 |
CF12T | 0.7500 | 0.875 | 0.593 | 2.875 | 1.750 | 1.125 | 1.000 | 1.312 | 1.562 | 3/4-16 | 12 | 113.642 | 0.295 |
