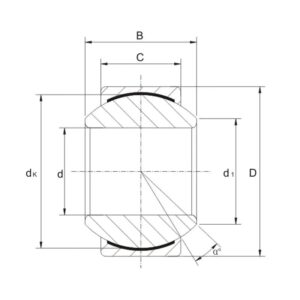

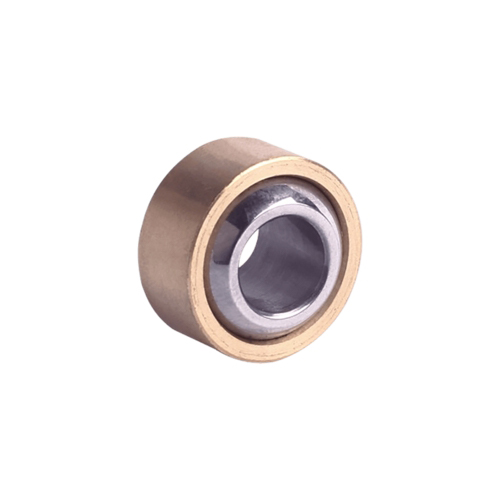

Maintenance-free Radial Spherical Plain Bearings G..PW
– Out ring in brass H62; steel ball in bearing steel GCr15 without chromium plating;
lined with PTFE composite material, the model is G..PW. – If out ring in brass H62; steel ball in stainless steel 440C; lined with PTFE composite material, the model is G..PWSS. – If out ring in carbon steel 20; steel ball in bearing steel GCr15 without chromium plating; lined with PTFE composite material, the model is ST..PW. – If out ring in stainless steel 304, steel ball in stainless steel 440C; lined with PTFE composite material, the model is SS..PW. |
Part
No. |
Dimensions | Load ratings | Weight | |||||||
d | d1 | B | C | D | dk | a
≈ |
dyn. C | stat. C0 | Kg
≈ |
|
G 5 PW | 5 | 7.7 | 8 | 6 | 13 | 11.113 | 13 | 6.2 | 17 | 0.007 |
G 6 PW | 6 | 8.9 | 9 | 6.75 | 16 | 12.700 | 13 | 7.5 | 22 | 0.010 |
G 8 PW | 8 | 10.3 | 12 | 9 | 19 | 15.875 | 13 | 12 | 36 | 0.016 |
G 10 PW | 10 | 12.9 | 14 | 10.5 | 22 | 19.050 | 13 | 17 | 50 | 0.031 |
G 12 PW | 12 | 15.4 | 16 | 12 | 26 | 22.225 | 13 | 22 | 67 | 0.065 |
G 14 PW | 14 | 16.8 | 19 | 13.5 | 28 | 25.400 | 15 | 28 | 86 | 0.090 |
G 16 PW | 16 | 19.3 | 21 | 15 | 32 | 28.575 | 15 | 35 | 107 | 0.100 |
G 18 PW | 18 | 21.8 | 23 | 16.5 | 35 | 31.750 | 15 | 47 | 131 | 0.125 |
G 20 PW | 20 | 24.3 | 25 | 18 | 40 | 34.925 | 15 | 51 | 157 | 0.180 |
G 22 PW | 22 | 25.8 | 28 | 20 | 42 | 38.100 | 15 | 62 | 191 | 0.210 |
G 25 PW | 25 | 29.5 | 31 | 22 | 47 | 42.850 | 15 | 77 | 236 | 0.295 |
G 30 PW | 30 | 34.8 | 37 | 25 | 55 | 50.800 | 15 | 103 | 318 | 0.425 |
G 35 PW | 35 | 37.7 | 43 | 28 | 62 | 57.100 | 16 | 130 | 400 | 0.500 |
G 40 PW | 40 | 45.2 | 49 | 33 | 75 | 66.600 | 17 | 179 | 550 | 0.900 |
G 50 PW | 50 | 56.6 | 60 | 45 | 90 | 82.500 | 12 | 302 | 928 | 1.640 |
