Maintenance-free Radial spherical Plain Bearings GE..UK
Maintenance-free Radial spherical Plain Bearings GE..UK
 |
– Sliding contact surfaces: steel /PTFE composite material.
– Outer ring: pressed around inner ring. – Outer race: lined with PTFE composite material – Spherical surface of inner ring is chromium plated. |

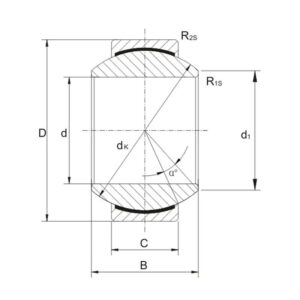

Maintenance-free Radial spherical Plain Bearings Specifications
| Part No. | Dimensions | Load ratings | Weight | |||||||||
| d | D | B | C | d1
min |
dK | R1S
min |
R2S
min |
a
≈ |
dyn. C | stat. C0 | Kg≈ | |
| GE 6 UK | 6 | 14 | 6 | 4 | 8 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.004 |
| GE 8 UK | 8 | 16 | 8 | 5 | 10 | 13 | 0.3 | 0.3 | 15 | 5.8 | 14 | 0.008 |
| GE 10 UK | 10 | 19 | 9 | 6 | 13 | 16 | 0.3 | 0.3 | 12 | 8.6 | 21 | 0.011 |
| GE 12 UK | 12 | 22 | 10 | 7 | 15 | 18 | 0.3 | 0.3 | 10 | 11 | 28 | 0.015 |
| GE 15 UK | 15 | 26 | 12 | 9 | 18 | 22 | 0.3 | 0.3 | 8 | 18 | 45 | 0.027 |
| GE 17 UK | 17 | 30 | 14 | 10 | 20 | 25 | 0.3 | 0.3 | 10 | 22 | 56 | 0.041 |
| GE 20 UK | 20 | 35 | 16 | 12 | 24 | 29 | 0.3 | 0.3 | 9 | 31 | 78 | 0.066 |
| GE 25 UK | 25 | 42 | 20 | 16 | 29 | 35.5 | 0.6 | 0.6 | 7 | 51 | 127 | 0.119 |
| GE 30 UK | 30 | 47 | 22 | 18 | 34 | 40.7 | 0.6 | 0.6 | 6 | 65 | 166 | 0.163 |
