Maintenance-free Rod Ends Factory Supplier GIR..UK,GIR..UK 2RS
Rod Ends Factory
– It is made up of a maintenance-free radial spherical plain bearing GE..UK or G..UK 2RS and rod body. – For bearings d>17,GIR..UK 2RS also available, e.g.GIR 20 UK 2RS. – For left-hand thread, please add suffix“L” ,e.g.GIRL 20UK. – All with forging part. -Body: medium carbon steel 45, zinc plating; Inner ring and steel ball: both bearing steel GCr15. |

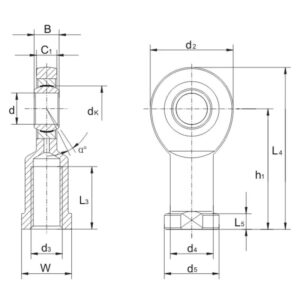

Part No. | Dimensions | Load ratings | Weight | ||||||||||||||
d | d3
6H |
B | C1 | d2 | L3
min |
W | d4 | d5 | L5 | h1 | L4 | dk | a
≈ |
dyn. C | stat. C0 | Kg
≈ |
|
GIR 6 UK | 6 | M6X1.0 | 6 | 4.4 | 21 | 11 | 11 | 10 | 13 | 5 | 30 | 40.5 | 10 | 13 | 3.60 | 8.15 | 0.021 |
GIR 8 UK | 8 | M8X1.25 | 8 | 6 | 24 | 15 | 14 | 12.5 | 16 | 5 | 36 | 48 | 13 | 15 | 5.85 | 12.9 | 0.039 |
GIR 10 UK | 10 | M10X1.5 | 9 | 7 | 29 | 20 | 17 | 15 | 19 | 6.5 | 43 | 57.5 | 16 | 12 | 8.65 | 17.6 | 0.061 |
GIR 12 UK | 12 | M12X1.75 | 10 | 8 | 34 | 23 | 19 | 17.5 | 22 | 6.5 | 50 | 67 | 18 | 11 | 11.4 | 24.5 | 0.096 |
GIR 15 UK | 15 | M14X2.0 | 12 | 10 | 40 | 30 | 22 | 21 | 26 | 8 | 61 | 81 | 22 | 8 | 17.6 | 36.0 | 0.18 |
GIR 17 UK(2RS) | 17 | M16X2.0 | 14 | 11 | 46 | 34 | 27 | 24 | 30 | 10 | 67 | 90 | 25 | 10 | 22.4 | 45.0 | 0.22 |
GIR 20 UK(2RS) | 20 | M20X1.5 | 16 | 13 | 53 | 40 | 32 | 27.5 | 35 | 10 | 77 | 103.5 | 29 | 9 | 31.5 | 60.0 | 0.35 |
GIR 25 UK(2RS) |
25 | M24X2.0 | 20 | 17 | 64 | 48 | 36 | 33.5 | 42 | 12 | 94 | 126 | 35.5 | 7 | 51.0 | 83.0 | 0.64 |
GIR 30 UK(2RS) | 30 | M30X2.0 | 22 | 19 | 73 | 56 | 41 | 40 | 50 | 15 | 110 | 146.5 | 40.7 | 6 | 66.5 | 110 | 0.93 |
GIR 35 UK2RS | 35 | M36X3.0 | 25 | 21 | 82 | 60 | 50 | 47 | 58 | 15 | 125 | 166 | 47 | 6 | 112 | 146 | 1.30 |
GIR 40 UK2RS | 40 | M39X3.0 | 28 | 23 | 92 | 65 | 55 | 52 | 65 | 18 | 142 | 188 | 53 | 7 | 140 | 180 | 2.00 |
GIR 45 UK2RS | 45 | M42X3.0 | 32 | 27 | 102 | 65 | 60 | 58 | 70 | 20 | 145 | 196 | 60 | 7 | 180 | 240 | 2.50 |
GIR 50 UK2RS | 50 | M45X3.0 | 35 | 30 | 112 | 68 | 65 | 62 | 75 | 20 | 160 | 216 | 66 | 6 | 220 | 290 | 3.50 |
GIR 60 UK2RS | 60 | M52X3.0 | 44 | 38 | 135 | 70 | 75 | 70 | 88 | 20 | 175 | 242.5 | 80 | 6 | 345 | 450 | 5.50 |
GIR 70 UK2RS | 70 | M56X4.0 | 49 | 42 | 160 | 80 | 85 | 80 | 98 | 20 | 200 | 280 | 92 | 6 | 440 | 610 | 8.60 |
GIR 80 UK2RS | 80 | M64X4.0 | 55 | 47 | 180 | 85 | 100 | 95 | 110 | 25 | 230 | 320 | 105 | 6 | 570 | 750 | 12.0 |
Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Leading manufacturer of Maintenance-free Rod Ends GIR..UK,GIR..UK 2RS and Maintenance-free Rod Ends GIR..UK,GIR..UK 2RS suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Rod Ends GIR..UK,GIR..UK 2RS are well welcome both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
