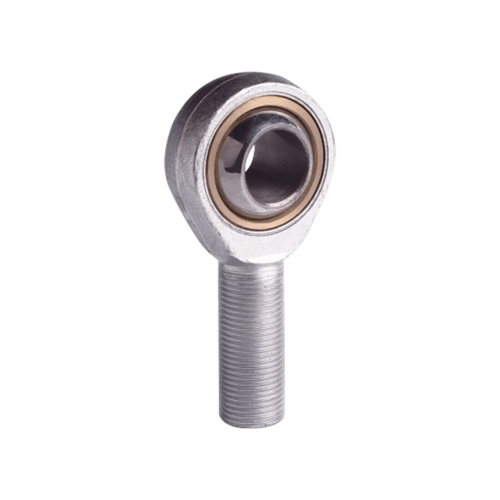

Maintenance-free Rod Ends Bearing SA..T/K

Description

Maintenance-free Rod Ends Bearing SA..T/K

Material and surface treatments:
– Body. medium carbon steel 45, zinc plating; Steel ball: bearing steel GCr15 without chromium plating; Inner ring:copper H62; with PTF.
– Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation.
Steel ball: alternative bearing steel GCr15 with hard chrome plating or stainless steel 440C;Inner ring: alternative low carbon steel 20 or stainless steel 304.

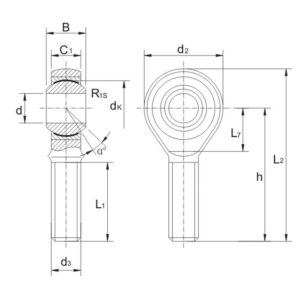

Rod Ends Bearing SA..T/K Details

Part No.	Dimensions												Load ratings		Weight
	d	d₃ 6g	B	C₁	L₁ min	d₂	l₇	h	L₂	d_k	R_1s	a ≈	dyn. C	stat. C₀	Kg ≈
SA 5 T/K	5	M5X0.8	8	6	19	18		33	42	11.11	0.3	13	5.70	6.00	0.013
SA 6 T/K	6	M6X1.0	9	6.75	21	20		36	46	12.70	0.3	13	7.20	7.65	0.020
SA 8 T/K	8	M8X1.25	12	9	25	24		42	54	15.875	0.3	14	11.6	12.9	0.038
SA 10 T/K	10	M10X1.5	14	10.5	28	28		48	62	19.05	0.3	13	14.5	18.0	0.055
SA 12 T/K	12	M12X1.75	16	12	32	32		54	70	22.225	0.3	13	17.0	24.0	0.085
SA 14 T/K	14	M14X2.0	19	13.5	36	36	18	60	78	25.40	0.3	16	24.0	31.0	0.14
SA 16 T/K	16	M16X2.0	21	15	37	42	21	66	87	28.575	0.3	15	28.5	39.0	0.21
SA 18 T/K	18	M18X2.5	23	16.5	41	44	22	72	94	31.75	0.3	15	42.5	47.5	0.28
SA 18 T/KFG	18	M18X1.5	23	16.5	41	44	22	72	94	31.75	0.3	15	42.5	47.5	0.28
SA 20 T/K	20	M20X2.5	25	18	45	50	25	78	103	34.925	0.3	14	42.5	57.0	0.38
SA 20 T/KFG	20	M20X1.5	25	18	45	50	25	78	103	34.925	0.3	14	42.5	57.0	0.38
SA 22 T/KFG	22	M22X1.5	28	20	48	54	27	84	111	38.10	0.3	15	57.0	68.0	0.48
SA 25 T/KFG	25	M24X2.0	31	22	55	60	30	94	124	42.85	0.3	15	68.0	85.0	0.64
SA 28 T/KFG	28	M27X2.0	35	24	62	66	33	103	136	47.60	0.3	15	86.0	107.0	0.80
SA 30 T/KFG	30	M30X2.0	37	25	66	70	35	110	145	50.80	0.3	17	88.0	114.0	1.10
SA 35 T/KFG	35	M36X2.0	43	28	85	81	41	140	180.5	57.10	0.3	16	•	•	1.64
SA 40 T/KFG	40	M42X2.0	49	33	90	91	46	150	195.5	66.60	0.3	17	•	•	2.30
SA 50 T/KFG	50	M48X2.0	60	45	105	117	59	185	243.5	82.50	0.3	12	•	•	4.80

– For left-hand thread, please add suffix”L” ,e.g.SAL 8T/K.

– For fine-pitch thread, please add suffix “FG”, e.g.SA 8 T/KFG.

– General with forging part,also turn part is optional.
