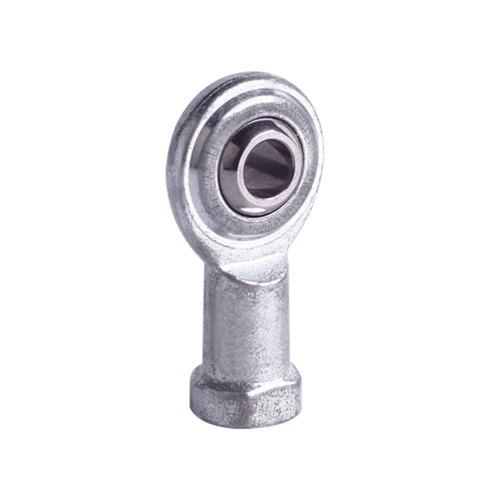

Maintenance-free Rod Ends SI..PK

Description

Maintenance-free Rod Ends Rod Ends manufacturer SI..PK

Rod Ends manufacturer

Rod body is pressed around inner ring.
Outer race is lined with PTFE composite material.
For left-hand thread, please add suffix” L” ,e.g. SIL 8PK.
For fine-pitch thread, please add suffix “FG” , e.g. SI 8 PKFG.
General with forging part, also turn part is optional.
Material and surface treatments:
Body: medium carbon steel 45, zinc plating; Steel ball: bearing steel GCr15 without chromium plating; with PTFE;
Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation
Steel ball: alternative bearing steel GCr15 with hard chrome plating or stainless steel 440C.

Part No.	Dimensions													Load ratings		Weight
	d	d₃ 6H	B	C₁	d₂	h₁	L₄	L₃ min	d₅	W	d₄	L₅	a ≈	dyn. C	stat. C₀	Kg ≈
SI 5 PK	5	M5X0.8	8	6	19	27	36.5	10	11	9	9	4	12	5.70	6.00	0.018
SI 6 PK	6	M6X1.0	9	6.7	21	30	40.5	12	13	11	10	5	11	7.20	7.65	0.026
SI 8 PK	8	M8X1.25	12	9	25	36	48.5	16	16	14	12.5	5	12	11.6	12.9	0.047
SI 10 PK	10	M10X1.5	14	11	29	43	57.5	20	19	17	15	6.5	12	14.5	18.0	0.077
SI 10 PKFG	10	M10X1.25	14	11	29	43	57.5	20	19	17	15	6.5	12	14.5	18.0	0.077
SI 12 PK	12	M12X1.75	16	12	33	50	66.5	22	22	19	17.5	6.5	13	17.0	24.0	0.100
SI 12 PKFG	12	M12X1.25	16	12	33	50	66.5	22	22	19	17.5	6.5	13	17.0	24.0	0.100
SI 14 PK	14	M14X2.0	19	14	37	57	75.5	25	25	22	20	8	14	24.0	31.0	0.160
SI 14 PKFG	14	M14X1.5	19	14	37	57	75.5	25	25	22	20	8	14	24.0	31.0	0.160
SI 16 PK	16	M16X2.0	21	15	43	64	85.5	28	27	22	22	8	14	28.5	39.0	0.220
SI 16 PKFG	16	M16X1.5	21	15	43	64	85.5	28	27	22	22	8	14	28.5	39.0	0.220
SI 18 PK	18	M18X2.5	23	17	47	71	94.5	32	31	27	25	10	14	42.5	47.5	0.320
SI 18 PKFG	18	M18X1.5	23	17	47	71	94.5	32	31	27	25	10	14	42.5	47.5	0.320
SI 20 PK	20	M20X2.5	25	18	51	77	102.5	33	34	30	27.5	10	14	42.5	57.0	0.420
SI 20 PKFG	20	M20X1.5	25	18	51	77	102.5	33	34	30	27.5	10	14	42.5	57.0	0.420
SI 22 PKFG	22	M22X1.5	28	20	55	84	111.5	37	38	32	30	12	15	57.0	68.0	0.540
SI 25 PKFG	25	M24X2.0	31	22	61	94	124.5	42	42	36	33.5	12	15	68.0	85.0	0.720

Hangzhou Power-transtech Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Hangzhou Power-trans Transmission Co., ltd is leading manufacturer of Maintenance-free Rod Ends SI..PK and Maintenance-free Rod Ends SI..PK suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Rod Ends SI..PK are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
