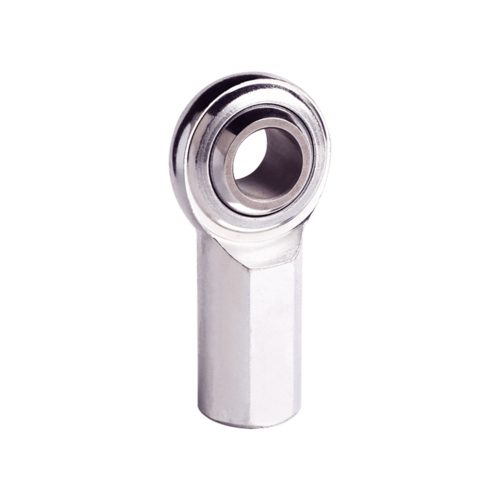

Maintenance required inch dimensions Rod Ends CF CF..S,CF..C
inch dimensions Rod Ends
Rod body is pressed around inner ring. |

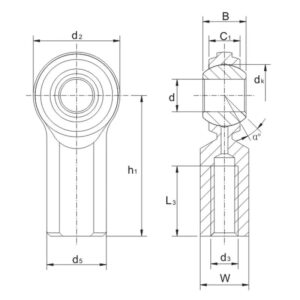

Inch dimensions Rod Ends
Part No | Dimensions | Load ratings | Weight | ||||||||||
d | B | C1 | h1 | d2 | d5 | W | dk | L3
min |
d3
2B |
a
≈
|
Kg
≈
|
||
CF3* | 0.1900 | 0.312 | 0.234 | 1.062 | 0.625 | 0.406 | 0.312 | 0.437 | 0.500 | 10-32 | 10 | 9.247 | 0.018 |
CF4* | 0.2500 | 0.375 | 0.250 | 1.312 | 0.750 | 0.469 | 0.375 | 0.500 | 0.687 | 1/4-28 | 13.5 | 14.269 | 0.023 |
CF5* | 0.3125 | 0.437 | 0.312 | 1.375 | 0.875 | 0.500 | 0.437 | 0.625 | 0.687 | 5/16-24 | 11 | 17.009 | 0.036 |
CF6 | 0.3750 | 0.500 | 0.359 | 1.625 | 1.000 | 0.687 | 0.562 | 0.719 | 0.812 | 3/8-24 | 11 | 22.627 | 0.059 |
CF7 | 0.4375 | 0.562 | 0.406 | 1.812 | 1.125 | 0.750 | 0.625 | 0.812 | 0.937 | 7/16-20 | 10.5 | 28.400 | 0.082 |
CF8 | 0.5000 | 0.625 | 0.453 | 2.125 | 1.312 | 0.875 | 0.750 | 0.937 | 1.062 | 1/2-20 | 10 | 40.459 | 0.132 |
CF10 | 0.6250 | 0.750 | 0.484 | 2.500 | 1.500 | 1.000 | 0.875 | 1.125 | 1.375 | 5/8-18 | 13 | 43.203 | 0.195 |
CF12 | 0.7500 | 0.875 | 0.593 | 2.875 | 1.750 | 1.125 | 1.000 | 1.312 | 1.562 | 3/4-16 | 12 | 63.193 | 0.295 |
