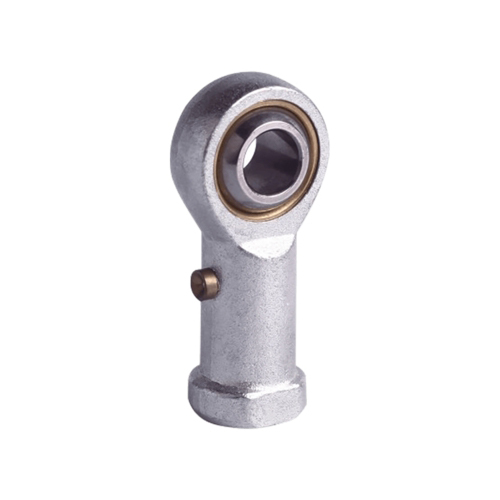

Rod Ends PHS

– Outer race is lined with brass liner.
– Rod body with a lubricating hole or grease nipple.
– For left-hand thread, please add suffix “L” ,e.g.PHSL 8.
– For fine-pitch thread, please add suffix “FG”, e.g. PHS 8FG.
– General with forging part,also turn part is optional.
Material and surface treatments:
– Body: medium carbon steel 45,zinc plating; Steel ball: bearing steel GCr15 without chromium plating; Inner ring: copper H62.
– Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation.
Steel all alternative bearing steel GCr15 with hard chrome plating or stainless steel 440C Inner ring.alternative low carbon steel 20 or stainless steel 304.

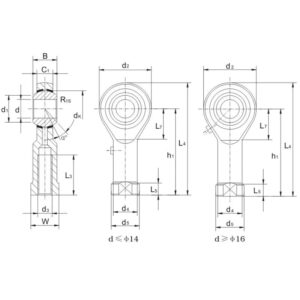

Part No.	Dimensions															Load ratings		Weight
	d	d₃ 6H	B	C₁	W	L₃ min	d₂	L₄	h₁	L₅	d₄	d₅	d_k	d₁	a ≈	dyn. C	stat. C₀	Kg≈
PHS 5	5	M5X0.8	8	6	9	10	16	35	27	4	8.5	11	11.11	7.70	13	3.25	5.70	0.016
PHS 6	6	M6X1.0	9	6.75	11	12	18	39	30	5	10.0	13	12.70	8.96	13	4.30	7.20	0.022
PHS 8	8	M8X1.25	12	9	14	16	22	47	36	5	12.5	16	15.875	10.4	14	7.20	11.6	0.047
PHS 10	10	M10X1.5	14	10.5	17	20	26	56	43	6.5	15.0	19	19.05	12.9	13	10.0	14.5	0.077
PHS 10 FG	10	M10X1.25	14	10.5	17	20	26	56	43	6.5	15.0	19	19.05	12.9	13	10.0	14.5	0.077
PHS 12	12	M12X1.75	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13	13.4	17.0	0.10
PHS 12 FG	12	M12X1.25	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13	13.4	17.0	0.10
PHS 14	14	M14X2.0	19	13.5	22	25	34	74	57	8	20.0	25	25.40	16.9	16	17.0	24.0	0.16
PHS 14 FG	14	M14X1.5	19	13.5	22	25	34	74	57	8	20.0	25	25.40	16.9	16	17.0	24.0	0.16
PHS 16	16	M16X2.0	21	15	24	28	40	84	64	8	22.0	27	28.575	19.4	15	21.6	28.5	0.22
PHS 16 FG	16	M16X1.5	21	15	24	28	40	84	64	8	22.0	27	28.575	19.4	15	21.6	28.5	0.22
PHS 18	18	M18X2.5	23	16.5	27	32	44	93	71	10	25.0	31	31.75	21.9	15	26.0	42.5	0.32
PHS 18 FG	18	M18X1.5	23	16.5	27	32	44	93	71	10	25.0	31	31.75	21.9	15	26.0	42.5	0.32
PHS 20	20	M20X2.5	25	18	30	33	50	102	77	10	27.5	34	34.925	24.4	14	31.5	42.5	0.42
PHS 20 FG	20	M20X1.5	25	18	30	33	50	102	77	10	27.5	34	34.925	24.4	14	31.5	42.5	0.42
PHS 22 FG	22	M22X1.5	28	20	32	37	54	111	84	12	30.0	38	38.10	25.8	15	38.0	57.0	0.54
PHS 25 FG	25	M24X2.0	31	22	36	42	60	124	94	12	33.5	42	42.85	29.6	15	47.5	68.0	0.73
PHS 28 FG	28	M27X2.0	35	24	41	48	66	136	103	14	37.0	46	47.60	32.3	15	58.0	75.0	0.98
PHS 30 FG	30	M30X2.0	37	25	41	51	70	145	110	15	40.0	50	50.80	34.8	17	64.0	88.0	1.10
