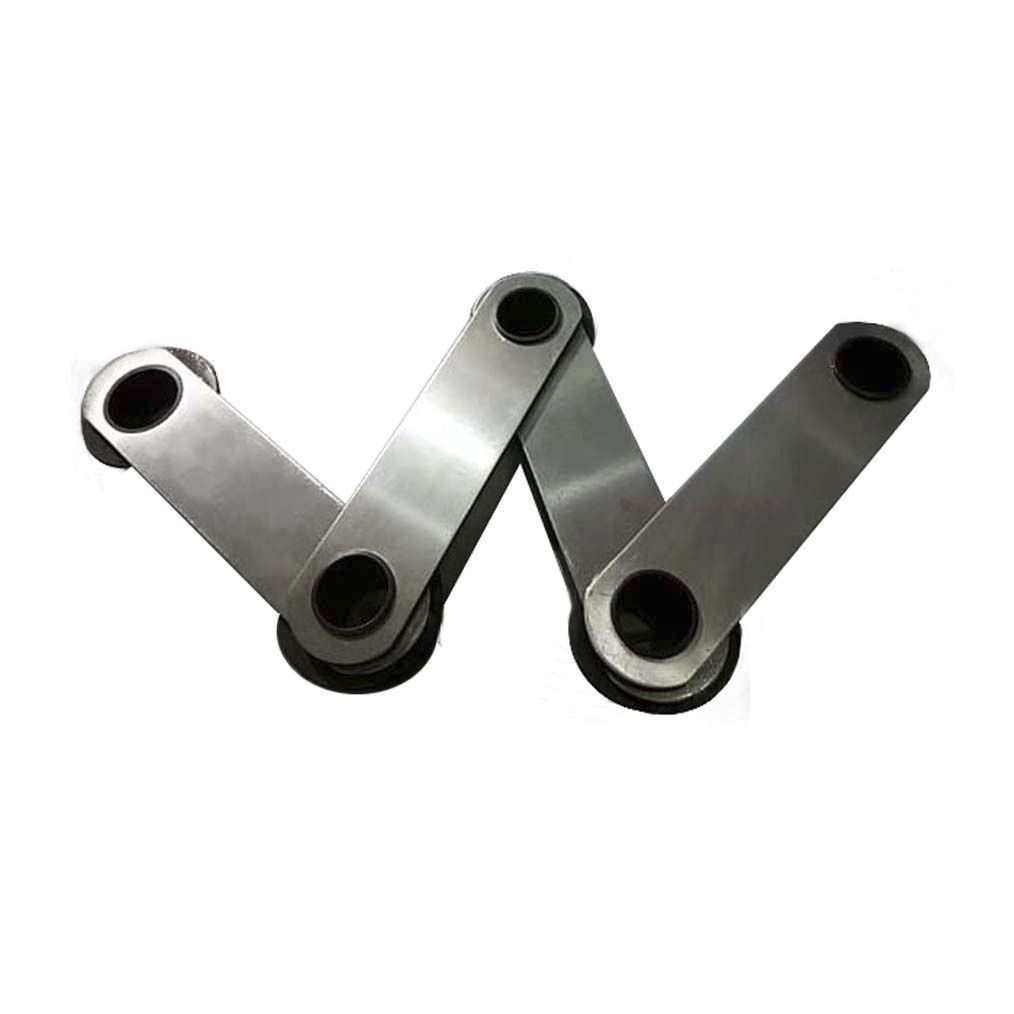

MC series hollow pin conveyor chains
The products are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Assembled precision by Internal hole position, spin riveted by pressure to ensure the performance of the entire chain.
Dimensional parameters
链号
Chain No. |
节距
Pitch |

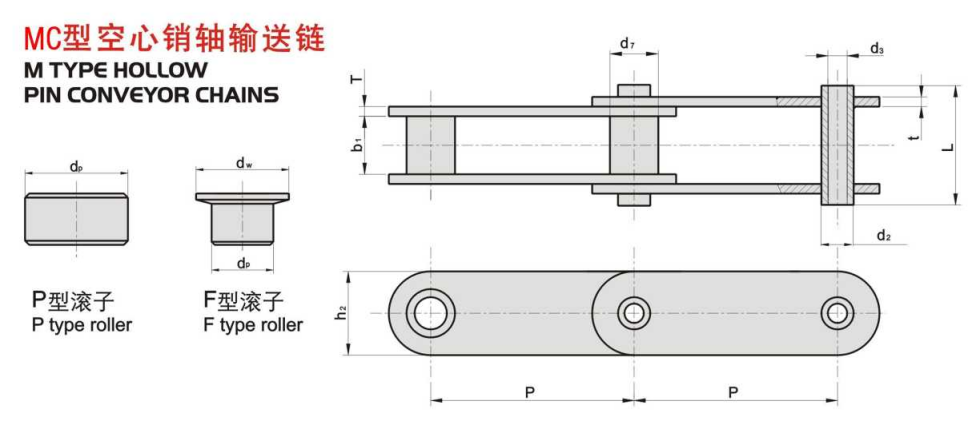

内节内宽 Width between inner plates | 空心销轴尺寸 Hollow pin dimensions | 套筒直径 Bush diameter | 滚子直径 Roller diameter | 链板尺寸 Plates dimensions | 极限拉伸载荷 Ultimate tensile strength | ||||
P | b1
min |
d2
max |
d3
min |
L
max |
d7
max |
dp
max |
dw
max |
h2
max |
t/T | Q
min |
|
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | |
MC 28 | 63 | 22 | 13 | 8.2 | 40 | 17.5 | 25 | 30 | 25 | 3.0 | 28 |
80 | |||||||||||
100 | |||||||||||
125 | |||||||||||
160 | |||||||||||
MC 56 | 63 | 30 | 15.5 | 10.2 | 45 | 21 | 36 | 42 | 35 | 4.0 | 56 |
80 | |||||||||||
100 | |||||||||||
125 | |||||||||||
160 | |||||||||||
MC 112 | 80 | 32 | 22 | 14.3 | 64 | 29 | 60 | 70 | 50 | 6.0 | 112 |
100 | |||||||||||
125 | |||||||||||
160 | |||||||||||
200 | |||||||||||
250 | |||||||||||
315 | |||||||||||
MC 224 | 125 | 43 | 31 | 20.3 | 84 | 41 | 85 | 100 | 70 | 8.0 | 224 |
160 | |||||||||||
200 | |||||||||||
250 | |||||||||||
315 | |||||||||||
400 |
