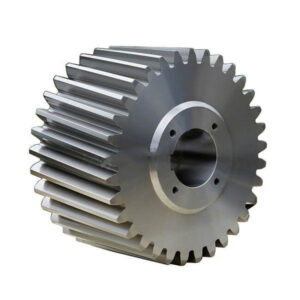

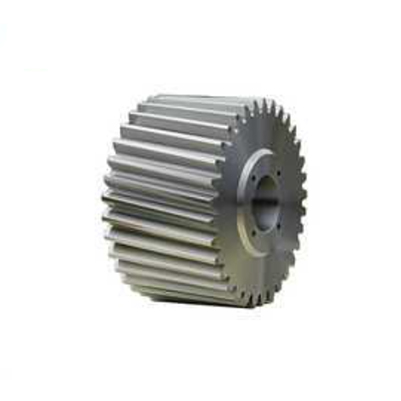

Mining Machinery Carburized Helical Gear
Mining Machinery Carburized Helical Gear Product Description
| Mining Machinery Carburized Helical Gear Basic Data | |
|---|---|
| Gear Tooth Shape | involute |
| Gear Material | 18CrNiMo6 |
| Gear Process | forging, carburization, plane and internal grinding, tooth grinding, line cutting |
| Pressure Angle | 20° |
| Quality level | DIN 3962 class 6 |
| Gear Type | M=9, Z=33, a=20°, β=8°, x=0.2, right-handed |
Capabilities of Gear/Spline(Mining Machinery Gear)
| Internal Gears and Internal Splines | |||
|---|---|---|---|
| MILLING | SHAPING | TOOTH GRINDING | |
| Maximum O.D. | 2500 mm | 2500 mm | 2500 mm |
| Minimum I.D. | 650 mm | 50 mm | 100 mm |
| Maximum Face Width | 500 mm | 500 mm | 500 mm |
| Maximum Diametral Pitch | D.P. 1 | D.P. 1 | DP 0.5 |
| Maximum Module | 26 mm | 26 mm | 45 mm |
| AGMA Level/ DIN Level | DIN Class 8 | DIN Class 8 | DIN Class 4 |
| Tooth Surface Finishing | Ra 3.2 | Ra 3.2 | Ra 0.6 |
| Maximum Helix Angle | ±22.5° | ±22.5° | ±45° |
External Gears and External Splines |
|||
| HOBBING | MILLING | TOOTH GRINDING | |
| Maximum O.D. | 1250 mm | 2500 mm | 2500 mm |
| Minimum O.D. | 20 mm | 200 mm | 20 mm |
| Maximum Face Width | 500 mm | 500 mm | 1480 mm |
| Maximum Diametral Pitch | D.P. 1 | D.P. 1 | DP 0.5 |
| Maximum Module | 26 mm | 26 mm | 45 mm |
| AGMA Level/ DIN Level | DIN Class 8 | DIN Class 8 | DIN Class 4 |
| Tooth Surface Finishing | Ra 3.2 | Ra 3.2 | Ra 0.6 |
| Maximum Helix Angle | ±45° | ±45° | ±45° |
Helical gears(Mining Machinery Gear)
Helical gears(Mining Machinery Gear) generally have longer and stronger teeth than the other gears. Due to the greater surface contact area on the teeth, these gears can carry a heavy load, but the efficiency is reduced because of the same reason. Forging produces helical gears that are quiet and make less vibration. These gears are very similar to spur gears, except that the teeth of helical gears are cut at an angle to the axis. An intriguing thing about helical gears is that if the gear teeth’ tips are correct, they can be raised on perpendicular shafts, where the revolving angle is adjusted by 90 degrees. These are available in both right and left-hand configurations.
The helical gears provided by us are made as per the industry’s standards and are widely used in the automotive and engineering industries. These can also be customized as per the client’s requirements. We provide helical gears upto 1000mm O.D. and 80 modules in different varieties such as hard, soft, or ground. Helical gears are pretty similar to industrial gears. They have teeth that are slanted and thus help in meshing the gear. The teeth of helical gears are connected better than those of spur gear.
They can be configured to either crossed or parallel as per the needs of the applications. When it comes to mechanics, parallel helical gears are much better. The reason behind this is that helices meet at tangents that do not happen in crossed gears, thus limiting the contact point to the tooth’s surface. So it is not advisable for applications that concern heavy loads to use crossed gear.
