Model 6 Wheel Drives Planetary Gearbox Replacement of Auburn Gear Model 6 Planetary Gearbox
The Model 6 wheel drives planetary gearbox is a high-performance, compact, and efficient planetary gear drive manufactured by Auburn Gear. It is designed for off-road mobile equipment, agricultural vehicles, and offshore applications. The Model 6 wheel drives planetary gearbox has a maximum continuous torque of 25,000 lbf-in (2,900 N-m) and a maximum intermittent output torque of 50,000 lbf-in (5,700 N-m). It can also handle a maximum radial load of 14,400 lbs (6,500 Kgf). The gear box has a maximum input speed of 3,500 rpm (single reduction) and 5,000 rpm (double reduction). The ratio range is 3.50 ~ 33.79:1.
The Model 6 wheel drives planetary gearbox is available with either an SAE “A” or “B” hydraulic motor mounting. It can also be equipped with an integral parking safety brake. Multiple wheel stud options are also available. The Model 6 wheel drives planetary gearbox is a rugged and reliable planetary gear drive that is well-suited for a variety of demanding applications. It is characterized by its high efficiency, compact design, and long service life.
Model 6 Wheel Drives Planetary Gearbox Specifications
| output torque (N.m) | Ratio (i) | Recommend Hydraulic Motor pilot/hubs and input spline
|
Max. input speed
(rpm) |
Brake torque
(N.m) |
Brake work pressure
(bar) |
||
| normal | Max. Intermittent | ||||||
| 3400 | 7000 | 2.81, 3.47, 4.54 | Single reduction | SAE A, B motor pilot/hubs
13T – 16/32 Spline 15T – 16/32 Spline 1” – 6B Spline 14T – 12/24 Spline
|
3500 | 440 | 22-50 |
| 12.45, 15.91 | Double reduction | 330 | 27-50 | ||||
| 20.05, 23.71 | 260 | 22-50 | |||||
| 27.50, 34.31 | 160 | 17-50 | |||||
- * Input rotation opposite output rotation.
- * Other ratios and other input types can special design.
- * If with manual disconnect application, please add mark “M” in order number end.
Model 6 Wheel Drives Planetary Gearbox Parameter

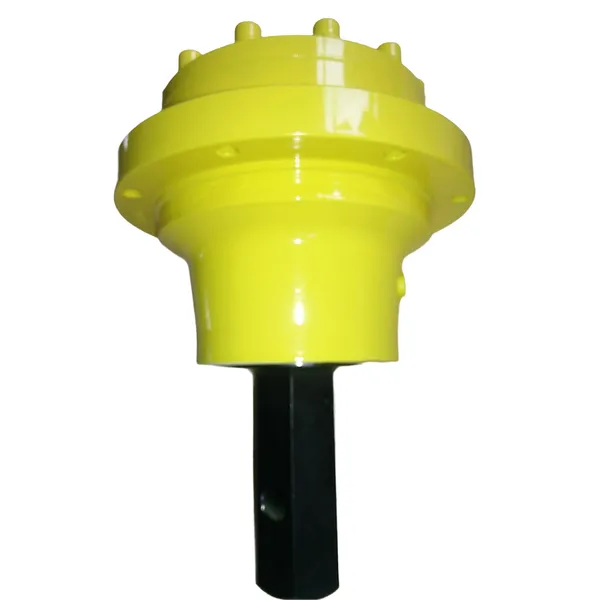

| Model 3 Series Wheel Drives Planetary Gearbox (Long Flange Distance Version) | |||||||||
| Options | Description | Order Number | Use Option Order Codes to Build Order Number | ||||||
| Model Series | Model 6 | 6W | 6W | ||||||
| Motor Pilot/Hubs | SAE A | A | A | ||||||
| SAE A1 | A1 | ||||||||
| SAE B | B | ||||||||
| SAE B1 | B1 | ||||||||
| Motor Input Spline or Shaft Input Options | 13T – 16/32 | 13 | 13 | ||||||
| 15T – 16/32 | 15 | ||||||||
| 1” – 6B | 6B | ||||||||
| 14T – 12/24 | 14 | ||||||||
| 2K Bearing less | 2K | ||||||||
| OMSS Bearing less | OMSS | ||||||||
| Ratio Options | 2.81, 3.47, 4.54
12.45, 15.91, 20.05, 23.71, 27.50, 34.31 |
02, 03, 04
13, 15 20, 24 26, 30 |
15 | ||||||
| Output Options | 1/2×1.89
1/2×2.50 9/16×2.06 9/16×2.75 5/8×2.36 NONE |
15
16 17 18 8 0 0 |
15
|
||||||
| Brake | 160Nm | B4D | |||||||
| 260Nm | B4F | ||||||||
| 330Nm | B4H | B4H | |||||||
| 440Nm | B4L | ||||||||
| Without Brake | WO | ||||||||
| Disconnect | With disconnect | M | M | ||||||
| Without disconnect | NONE | ||||||||
| Example of complete order code: | 6W | A | 13 | 15 | 15 | B4H | M | ||

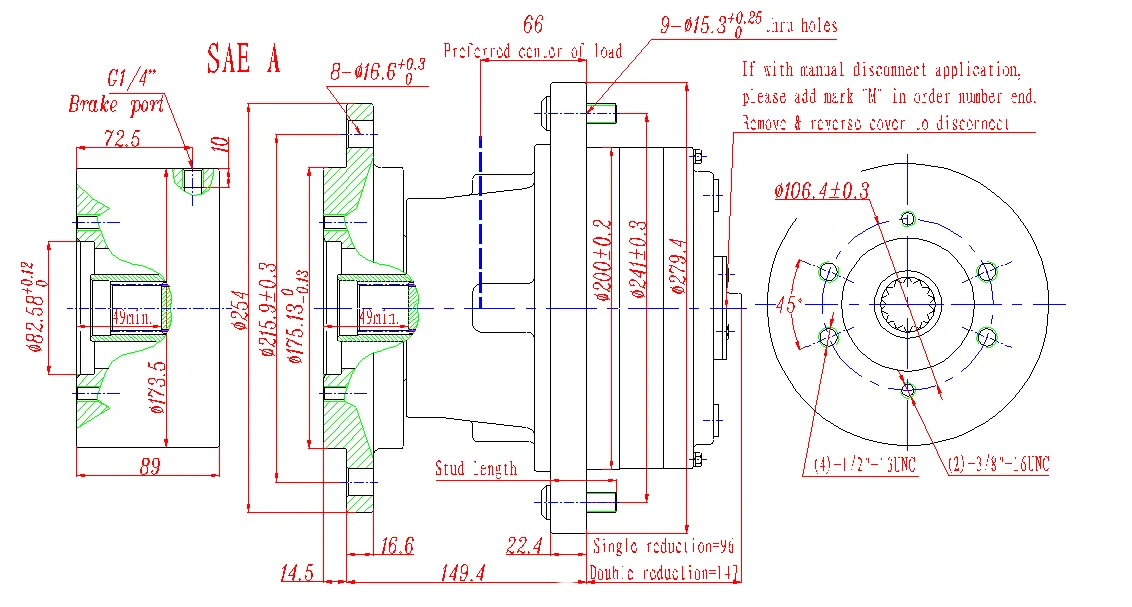

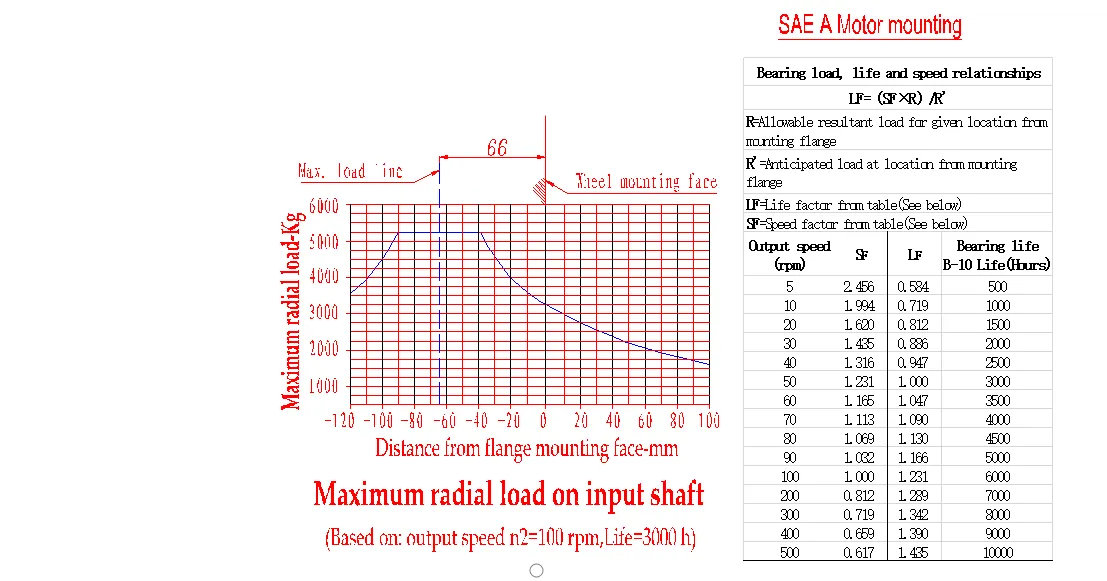

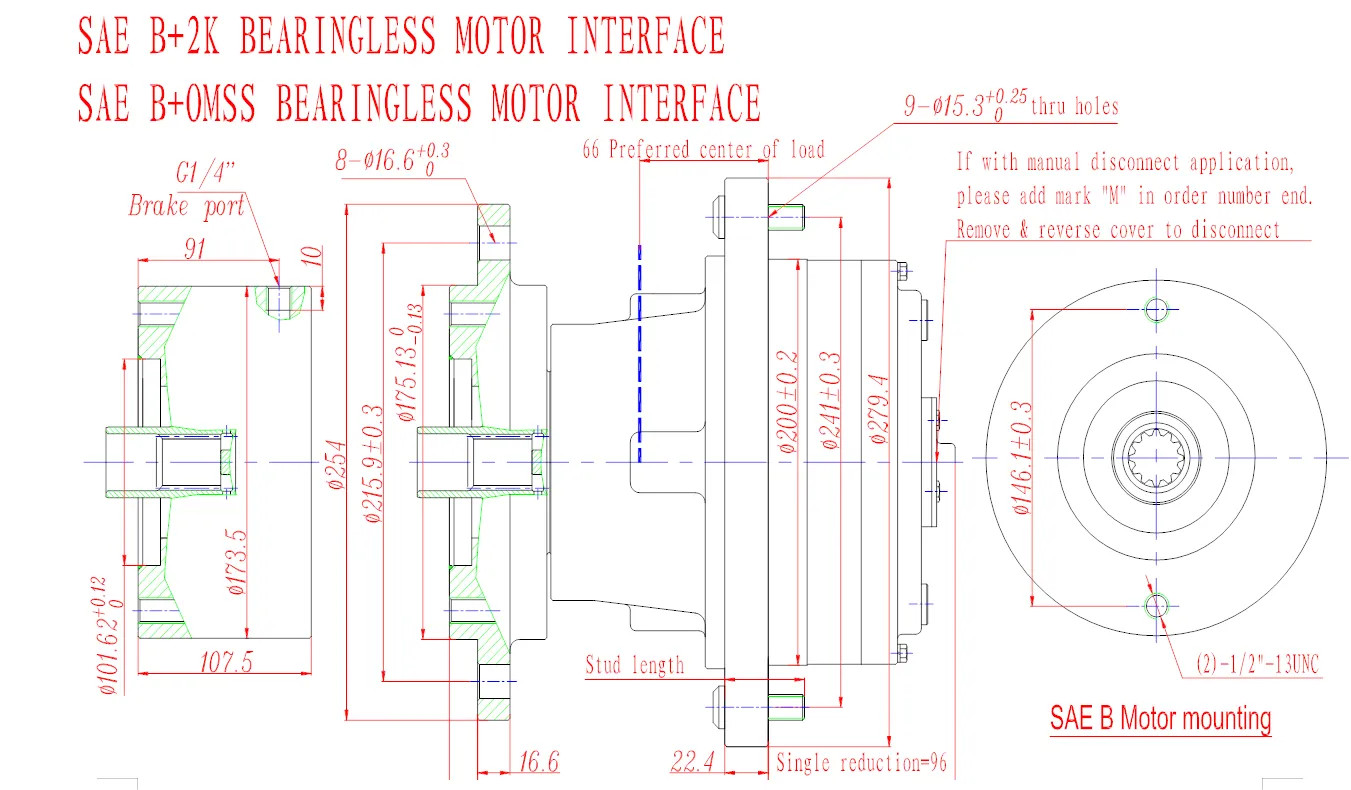

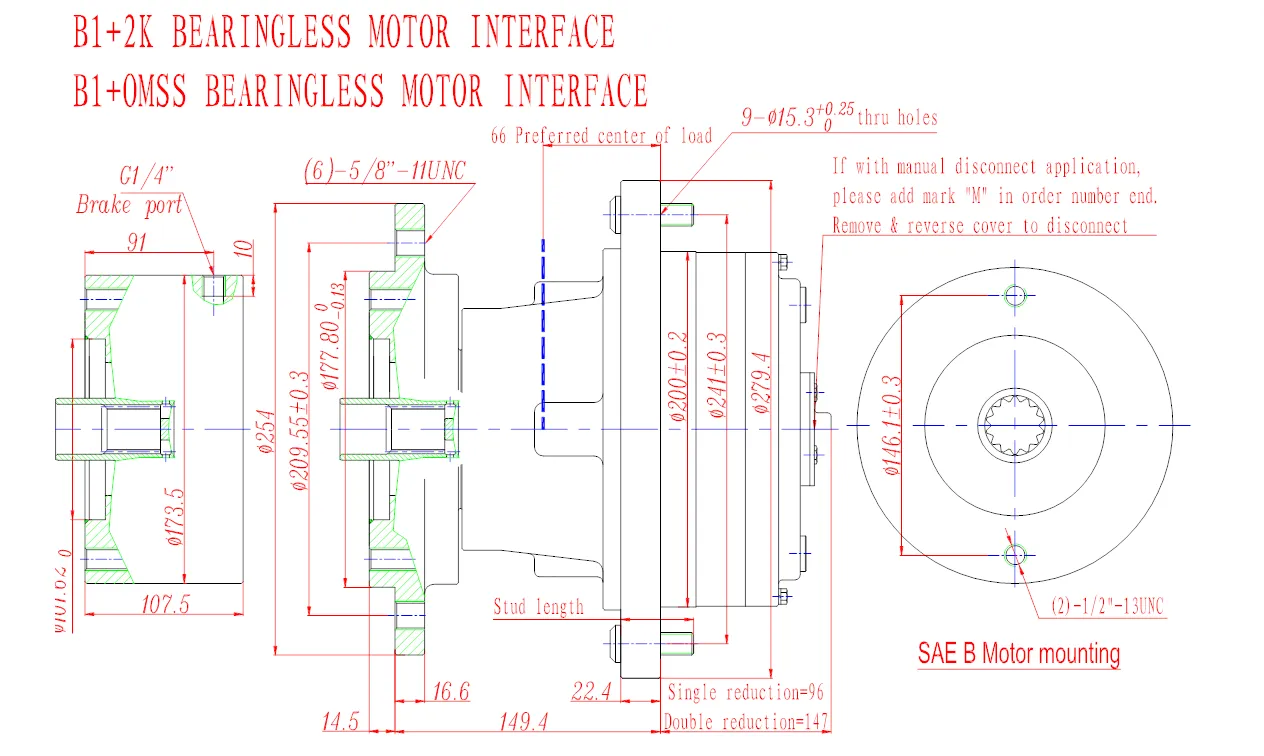

Model 6 Wheel Drives Planetary Gearbox Dimensions

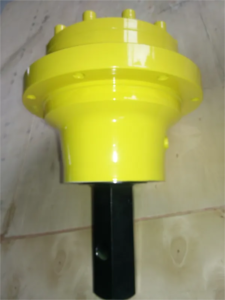

Model 6 Wheel Drives Planetary Gearbox Features
The Model 6 wheel drives planetary gearbox is a high-performance, compact, and efficient planetary gear drive. It is designed for off-road mobile equipment, agricultural vehicles, and offshore applications.
Here are some of the key features of the Model 6 wheel drives planetary gearbox:
- High efficiency: 96 to 98% power transfer efficiency
- Compact design: Saves space and provides for long service life
- Rugged and reliable: Well-suited for demanding applications
- Integral parking safety brake: Provides added safety
- Multiple wheel stud options: Available for a variety of applications
1. High efficiency: The planetary gearbox is significantly more efficient than many other types of drives, including differential design planetaries. This is due to its compact design and the use of high-quality materials.
2. Compact design: The planetary gearbox is very compact, which saves space and makes it easy to install. This is important in applications where space is limited, such as on off-road mobile equipment.
3. Rugged and reliable: The Model 6 wheel drives planetary gearbox is designed to withstand the harsh conditions of off-road mobile equipment, agricultural vehicles, and offshore applications. It is made of high-quality materials and is built to last.
4. Integral parking safety brake: The wheel drives planetary gearbox can be equipped with an integral parking safety brake. This provides added safety by preventing the drive from rotating when it is not in use.
5. Multiple wheel stud options: The Model 6 wheel drives planetary gearbox is available with multiple wheel stud options.
 |
 |

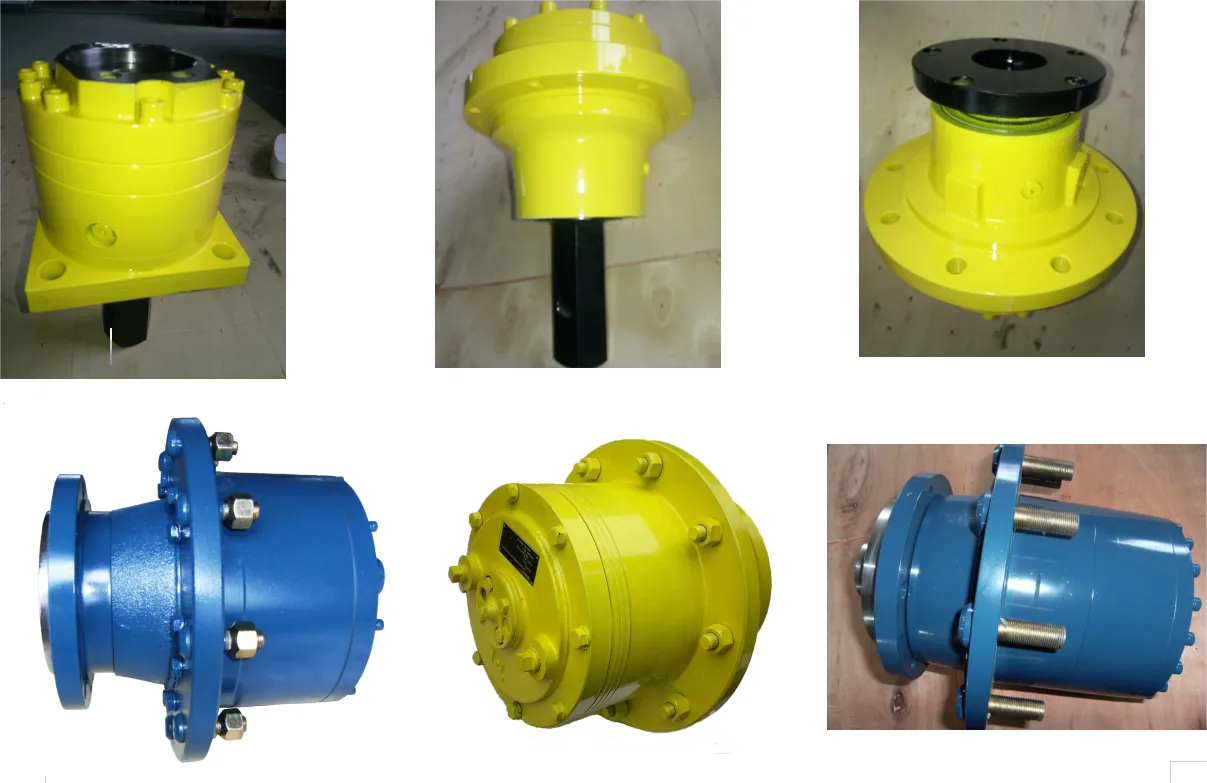

China Wheel Drives Planetary Gearbox Manufacturers
Power-trans is a leading designer and manufacturer of custom-engineered wheel drive planetary gearboxes, shaft output drives planetary gearboxes, flanged output drives planetary gearboxes, swing drives planetary gearboxes, and solutions for diverse mobile equipment applications. Through its expansive product portfolio of planetary gearboxes, electric drive systems, driveline systems, and differentials, Power-trans offers more than 120 base product models covering over 3,200 application solutions that transfer power and torque to wheels, axles, booms, augers, winches, and platforms.
Power-trans serves distributor and original equipment manufacturer (“OEM”) customers that rely on the Company for its unmatched custom engineering and design support, optimized application performance and efficiency, rapid speed-to-market, and the shortest lead times in the industry. With a focus on accounts requiring custom engineering, the Company has built long-standing and collaborative relationships with distributor and OEM customers serving the agriculture, construction, specialty vehicle, aerial work platform, material handling, forestry, mining, oil, marine, military, airport support and automotive/truck end markets.
