Mono Screw Oil Free Air Compressor China Supplier
Strict Manufacturing Process Of Air Compressor

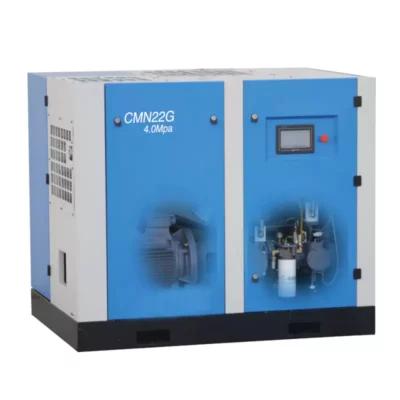

Mono Screw Oil Free Air Compressor
- Strict manufacturing process: from raw materials to assembly. Every component has been strictly tested, and every process has been strictly controlled. Ensure that each component has excellent quality to ensure durability.
- Ultra quiet design of the machine: the ultra quiet design of the machine. The low-speed large capacity cooling system, and the large cooler reduce the air convection friction, making the cooling effect excellent.
- Humanized structure design: humanized structure design simplifies installation, convenient maintenance and low maintenance cost. Users can maintain by themselves.
- Super clean compressed air: This machine is made of stainless steel alloy material to ensure durability and no corrosion. Its long service life ensures that the compressed air is pollution-free, more energy-saving, stable and environmentally friendly.
Oil-free Air Compressors | Scroll Air Compressor | Screw Air Compressor | Piston Air Compressor |
100% Oil-free screw air compressor | ||||||||
Model | Maximum work pressure | Air flow | Motor power | Noise | Pipe diameters of Cooling water inlet and outlet | Quantity cooling water (Water entering 32℃) |
Dimension (LxWxH) |
|
MPa | M3/min | Kw | dB | T/H | mm | |||
AHW-7A/B | 0.8 | 0.78 | 5.5 | 57 | 3/4〃 | 1.5 | 900x800x1200 | (Belt drive) |
1 | 0.65 | |||||||
AHW-10A/B | 0.8 | 1.1 | 7.5 | 57 | 3/4〃 | 2 | 900x800x1200 | (Belt drive) |
1 | 0.93 | |||||||
AHW-10A/B | 0.8 | 1.4 | 11 | 60 | 1〃 | 2.5 | 1300x900x1300 | (Belt drive) |
1 | 1.1 | |||||||
AHW-20A | 0.8 | 2.3 | 15 | 60 | 1〃 | 3.5 | 1300x900x1300 | |
1 | 1.6 | |||||||
1.25 | 1.1 | |||||||
AHW-25A | 0.8 | 3 | 18.5 | 63 | 1〃 | 4 | 1400x1100x1300 | |
1 | 2.2 | |||||||
1.25 | 1.6 | |||||||
AHW-30A | 0.8 | 3.43 | 22 | 63 | 1〃 | 5 | 1400x1100x1300 | |
1 | 3.1 | |||||||
1.25 | 2.2 | |||||||
AHW-40A |
0.8 | 5 | 30 | 66 | 1 1/2〃 | 7 | 1500x1100x1350 | |
1 | 5 | |||||||
1.25 | 3.4 | |||||||
AHW-50A | 0.8 | 6.2 | 37 | 66 | 1 1/2〃 | 9 | 1500x1100x1350 | |
1 | 5 | |||||||
1.25 | 3.7 | |||||||
AHW-60A | 0.8 | 7.6 | 45 | 68 | 1 1/2〃 | 10 | 1800*1360*1620 | |
1 | 6.2 | |||||||
1.25 | 5 | |||||||
AHW-75A | 0.8 | 9.6 | 55 | 69 | 1 1/2〃 | 12 | 1800*1360*1620 | |
1 | 7.6 | |||||||
1.25 | 6.2 | |||||||
AHW-100A | 0.8 | 12.6 | 75 | 72 | 1 1/2〃 | 18 | 1800*1360*1620 | |
1 | 11 | |||||||
1.25 | 9.6 | |||||||
AHW-120A | 0.8 | 15.5 | 90 | 73 | 1 1/2〃 | 20 | 2200*1550*1800 | |
1 | 12.6 | |||||||
1.25 | 11 | |||||||
AHW-150A | 0.8 | 19.3 | 110 | 77 | 2〃 | 24 | 2200*1550*1800 | |
1 | 15.5 | |||||||
1.25 | 12.6 | |||||||
AHW-175A | 0.8 | 22.52 | 132 | 77 | 2〃 | 30 | 2200*1550*1800 | |
1 | 19.3 | |||||||
1.25 | 15.5 | |||||||
AHW-220A | 0.8 | 28.11 | 160 | 79 | 3〃 | 35 | 2700*1830*1850 | |
1 | 25.45 | |||||||
1.25 | 22.52 | |||||||
AHW-250A | 0.8 | 33.97 | 185 | 79 | 3〃 | 38 | 2700*1830*1850 | |
1 | 29 | |||||||
1.25 | 25.21 | |||||||
AHW-280A | 0.8 | 36.75 | 200 | 80 | 4〃 | 42 | 2700*1830*1850 | |
1 | 32.78 | |||||||
1.25 | 29.24 | |||||||
AHW-300A | 0.8 | 39.67 | 220 | 80 | 4〃 | 47 | 2700*1830*1850 | |
1 | 36.75 | |||||||
1.25 | 29.63 | |||||||
AHW-350A | 0.8 | 42.88 | 250 | 80 | 4〃 | 53 | 2700*1830*1850 | |
1 | 39.67 | |||||||
1.25 | 33.97 |
CNC intelligent precision machining technology and High balance of air ends operation, Guarantee lower noise, smaller vibration, Longer life.
Easy operation, PLC controlled, Automatic fault detection, Fault warning, Maintenance reminder, Automatic protection, 24 hours unattended, Remote control achieved.
