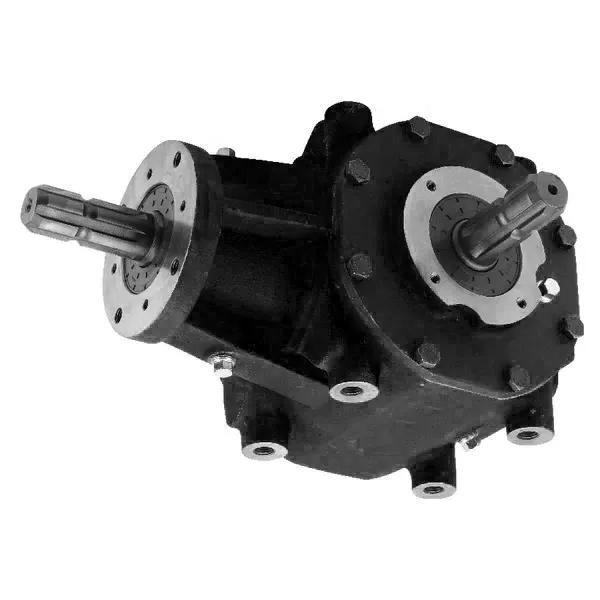

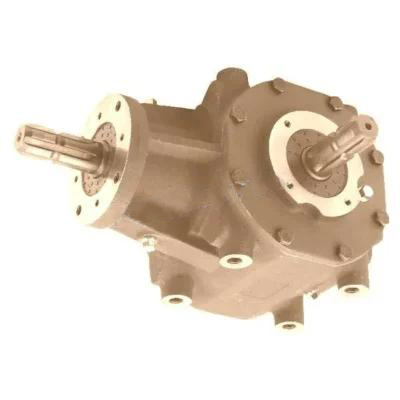

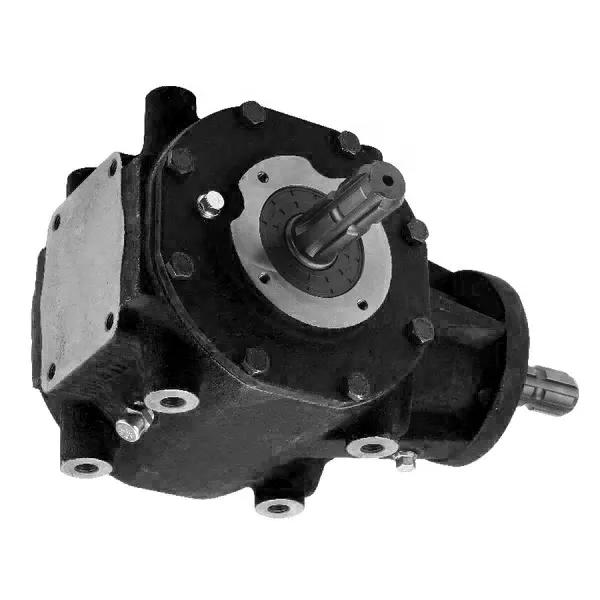

Mower Gearboxes – Replacement of Comer Code TL-290A

Flail Mower Gearboxes – Replacement of Comer Code T-290A

The flail mower gearbox T-290A(Comer TL-290A Mower Gearboxes) is a type of flail mower gearbox. A device that transmits power from the input shaft to the output shaft to drive the cutting blades of a flail mower. Design the flail mower gearbox T-290A to handle high torque loads. and  it is typically working in heavy-duty flail mowers. And they are working in cutting thick grass, weeds, and brush in rough terrain. A flail mower gearbox T-290A typically consists of several components, including input and output shafts, gears, bearings, and housing. The input shaft receives power from the PTO, while the output shaft transfers power to the cutting mechanism of the mower.
Design the gears in the flail mower gearbox T-290A for high strength and durability, as they need to withstand the high stresses associated with mowing dense vegetation. The bearings in the gearbox provide support to the shafts and gears and ensure smooth rotation of the components. The housing of a flail mower gearbox is typically made of cast iron or other durable materials, providing protection to the internal components of the gearbox. Overall, the flail mower gearbox T-290A is a critical component in the flail mower system. Allowing for efficient and effective vegetation cutting and mulching. Designed to handle high power and torque and ensure reliable operation of the mower even under heavy use.

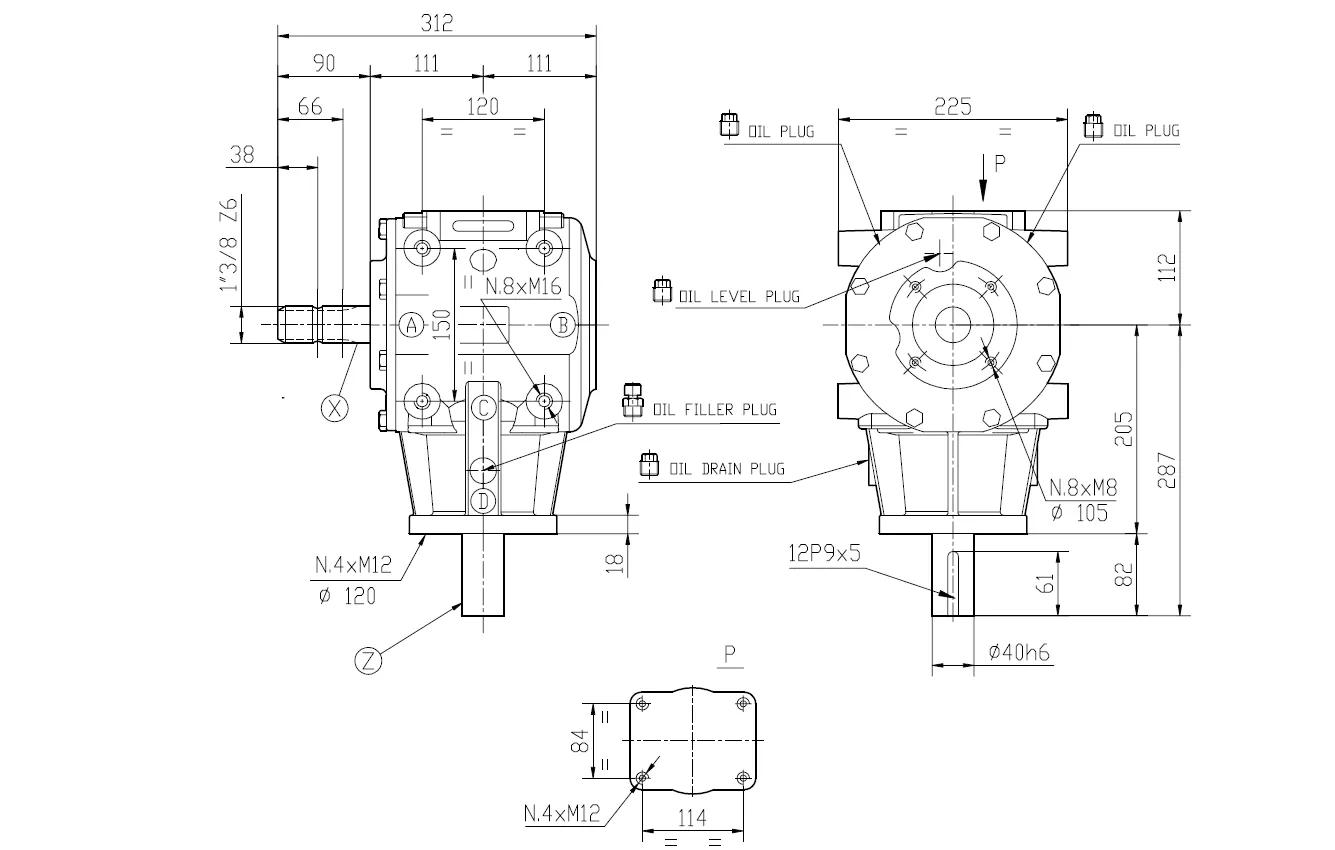

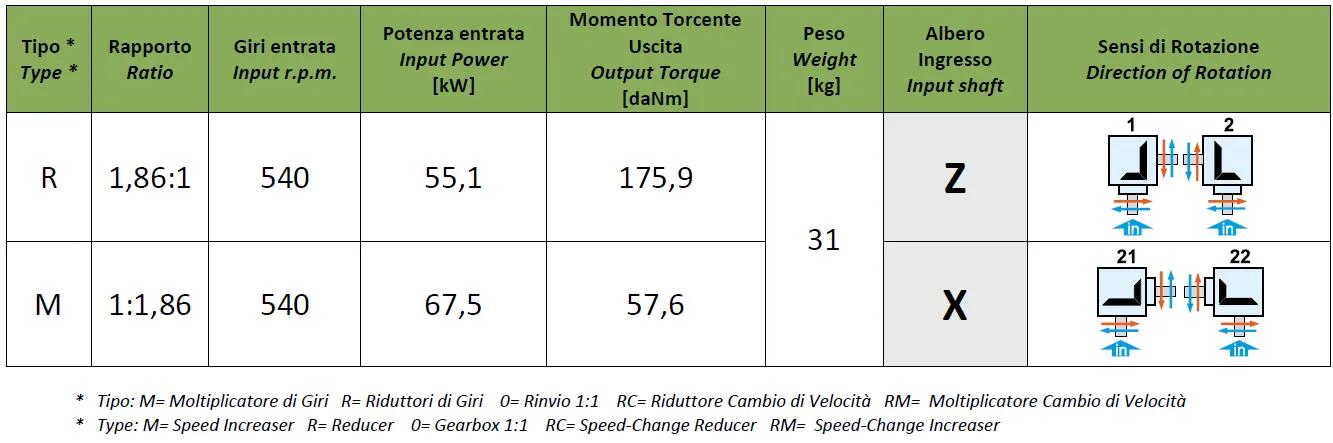

Specifications of Flail Mower Gearbox T-290A (1:1.86)

Benefits of Comer TL-290A Mower Gearboxes (1:1.86)

The flail mower gearbox T-290A offers several benefits, including:

• Improved cutting ability: The flail mower gearbox T-290A converts the rotary motion of the driveline into an oscillating motion, which improves the flail mower’s cutting ability. This results in a better quality cut on grass and other vegetation.
• Increased durability: The flail mower gearbox T-290A is designed to be strong and durable, which means that it can withstand the rigors of agricultural and landscaping work. This results in a longer lifespan for the gearbox and less time spent on repairs and replacements.
• Reduced maintenance requirements: The flail mower gearbox T-290A requires minimal maintenance as long as it is properly. This means that farmers and landscapers can spend more time working and less time maintaining their equipment.
• Versatility: The flail mower gearbox T-290A is compatible with a wide range of flail mowers, which makes it a versatile choice for farmers and landscapers. This means that it can be used in a variety of different applications.
• Easy installation: The flail mower gearbox T-290A is designed to be easy to install, which reduces downtime and makes it easier to get the mower back up and running quickly. This means that less time is spent on installation and more time can be spent working.

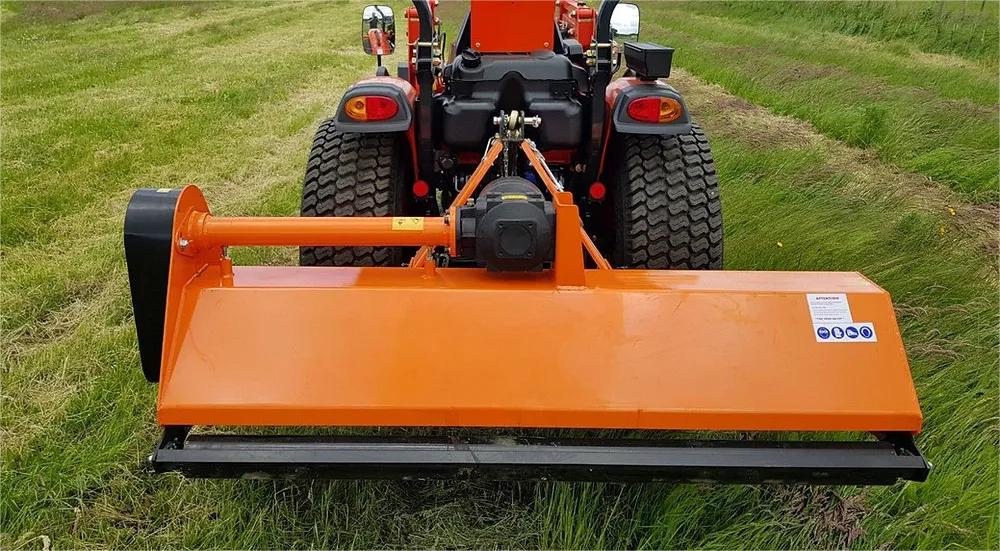

How Does the Flail Mower Gearbox(Comer TL-290A Mower Gearboxes) Work?

The flail mower gearbox(Comer TL-290A Mower Gearboxes) is a mechanical device that connects to a tractor, typically through a Power Take-Off (PTO) shaft and drives the flail mowing heads on the mower. The gearbox contains a series of gears, shafts, and bearings that work together to transfer power from the tractor to the flail mowing heads.
When the operator engages the PTO shaft, power is transmitted to the input shaft of the flail mower gearbox. The input shaft rotates at high speed, which is then transmitted to the first stage of gears in the gearbox. These gears work together to reduce the speed and increase the torque of the output shaft. The output shaft drives a larger gear, which powers the flail mowing heads on the mower.
The flail mowing heads consist of multiple blades attached to a rotating shaft. As the blades spin, they strike the vegetation to be cut, effectively shredding it into small pieces. The gearbox is designed to withstand the high torque and shock loads generated as the blades come in contact with the vegetation while also providing a smooth and reliable power transfer from the tractor to the mower.
In addition to providing power transfer, many flail mower gearboxes also feature safety features such as shear pins and slip clutches to prevent damage to the flail mower gearbox and tractor in case of an obstruction in the mowing path. Proper maintenance is important for ensuring the longevity and reliability of the flail mower gearbox.

How to Choose the Right Flail Mower Gearbox?

Choosing the right flail mower gearbox depends on several factors. Including the type of tractor being used, the size and type of vegetation being mowed, and the specific needs and preferences of the operator. Here are some factors to consider when choosing a flail mower gearbox:

• Horsepower rating – Make sure to select a flail mower gearbox that has a horsepower rating that is suitable for the tractor it will be used with. A gearbox with a low horsepower rating can cause damage to the mower or the tractor, while a gearbox with a high horsepower rating can be unnecessarily heavy and expensive.
• Cutting capacity – The capacity of the flail mower gearbox to efficiently cut vegetation is a key factor to consider. It is important to match the gearbox to the type and size of vegetation being mowed.
• Flail head configuration – Flail mower heads come in various sizes, shapes, and configurations, each designed for specific applications. It is important to match the flail mower gearbox with the appropriate type of flail head.
• Durability and build quality – Look for a flail mower gearbox that is built with high-quality materials and is designed to withstand the rigors of regular use.
• Safety features – Many flail mower gearboxes feature safety features such as slip clutches or shear bolts that protect the gearbox and tractor from damage in case of an obstruction in the mowing path.
• Budget – Set a budget and choose a flail mower gearbox that provides the best balance of features and quality within your budget.

Overall, it is important to carefully consider your needs, budget, and compatibility with your specific tractor when selecting a flail mower gearbox.

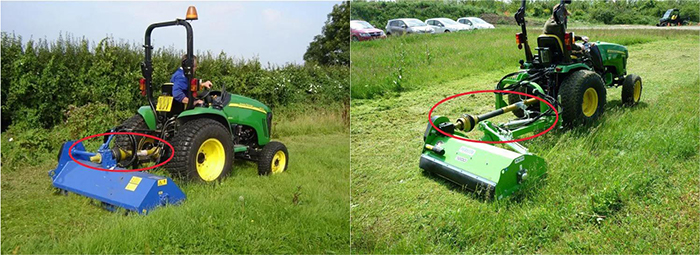

PTO Shaft for Flail Mower Gearbox

The Power Take-Off (PTO) shaft is an important component that connects the flail mower gearbox to the tractor. The PTO shaft is responsible for transmitting engine power from the tractor to the flail mower gearbox, which drives the flail mower heads.
There are several factors to consider when selecting a PTO shaft for a flail mower gearbox. One of the most important is the length of the PTO shaft. It is important to choose a PTO shaft that is the correct length for the specific tractor and flail mower gearbox combination. The PTO shaft should be long enough to allow for proper movement or turning radius of the tractor but not so long that it becomes unstable or difficult to control.
Another important consideration is the speed of the PTO shaft. The speed of the PTO shaft is measured in revolutions per minute (RPM). It is important to select a PTO shaft that operates at the correct RPM for the flail mower gearbox. Operating the flail mower gearbox at too high or too low an RPM can cause excessive wear and tear or even damage to the gearbox.
Other factors to consider when selecting a PTO shaft include the type of tractor (i.e., whether it is a standard, utility, or compact tractor). The diameter of the shaft, the number of splines on the shaft, and the type of connection between the shaft and the flail mower gearbox. Finally, It is important to ensure that the PTO shaft is properly maintained and lubricated for the best performance and longevity.

We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes. Such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearbox, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
