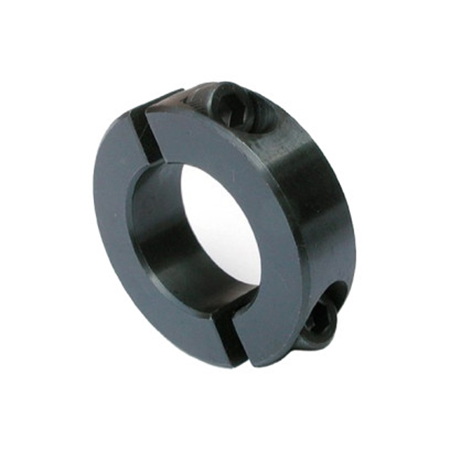

MSP two piece clamp shaft collar international series
|
Diameter Data
STEEL | ANODIZED
ALUMINUM |
STAINLESS
STEEL |
BORE
B(in) |

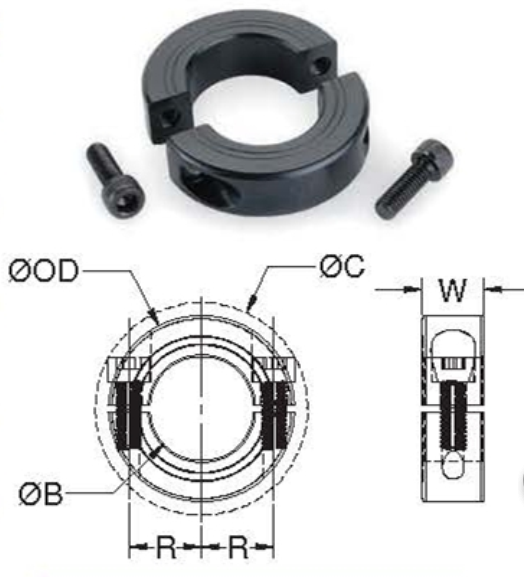

BORE B (mm) | OUTER DIAMETER OD (mm) | SCREW LOCATION R (mm) | CLEARANCE DIAMETER C (mm) MAX | WIDTH W (mm) | FORGED
CLAMP SCREW |
MSP-4E-F | MSP-4E-AN | MSP-4E-SS | .2500 | 6.35 | 18 | 6.50 | 22.4 | 9 | M3 |
MSP-5E-F | MSP-5E-AN | MSP-5E-SS | .3125 | 7.94 | 18 | 6.50 | 22.4 | 9 | M3 |
MSP-6E-F | MSP-6E-AN | MSP-6E-SS | .3750 | 9.53 | 24 | 8.51 | 26.3 | 9 | M3 |
MSP-7E-F | MSP-7E-AN | MSP-7E-SS | .4375 | 11.11 | 28 | 10.01 | 32.0 | 11 | M4 |
MSP-8E-F | MSP-8E-AN | MSP-8E-SS | .5000 | 12.70 | 30 | 11.00 | 33.7 | 11 | M4 |
MSP-10E-F | MSP-10E-AN | MSP-10E-SS | .6250 | 15.88 | 34 | 12.50 | 39.3 | 13 | M5 |
MSP-12E-F | MSP-12E-AN | MSP-12E-SS | .7500 | 19.05 | 40 | 14.73 | 47.4 | 15 | M6 |
MSP-14E-F | MSP-14E-AN | MSP-14E-SS | .8750 | 22.23 | 42 | 16.00 | 49.5 | 15 | M6 |
MSP-15E-F | MSP-15E-AN | MSP-15E-SS | .9375 | 23.81 | 45 | 17.50 | 52.1 | 15 | M6 |
MSP-16E-F | MSP-16E-AN | MSP-16E-SS | 1.0000 | 25.40 | 45 | 17.50 | 52.1 | 15 | M6 |
MSP-18E-F | MSP-18E-AN | MSP-18E-SS | 1.1250 | 28.58 | 48 | 19.00 | 54.7 | 15 | M6 |
MSP-20E-F | MSP-20E-AN | MSP-20E-SS | 1.2500 | 31.75 | 54 | 21.49 | 59.2 | 15 | M6 |
MSP-22E-F | MSP-22E-AN | MSP-22E-SS | 1.3750 | 34.93 | 57 | 23.24 | 62.4 | 15 | M6 |
MSP-23E-F | MSP-23E-AN | MSP-23E-SS | 1.4375 | 36.51 | 60 | 24.99 | 65.6 | 15 | M6 |
MSP-24E-F | MSP-24E-AN | MSP-24E-SS | 1.5000 | 38.10 | 60 | MSP-24E-SS | 1.5000 | 15 | M6 |
MSP-28E-F | MSP-28E-AN | MSP-28E-SS | 1.7500 | 44.45 | 73 | MSP-28E-SS | 1.7500 | 19 | M8 |
MSP-31E-F | MSP-31E-AN | MSP-31E-SS | 1.9375 | 49.21 | 78 | MSP-31E-SS | 1.9375 | 19 | M8 |
MSP-32E-F | MSP-32E-AN | MSP-32E-SS | 2.0000 | 50.80 | 82 | MSP-32E-SS | 2.0000 | 19 | M8 |
MSP-35E-F | MSP-35E-AN | MSP-35E-SS | 2.1875 | 55.56 | 88 | MSP-35E-SS | 2.1875 | 19 | M8 |
MSP-36E-F | MSP-36E-AN | MSP-36E-SS | 2.2500 | 57.15 | 88 | MSP-36E-SS | 2.2500 | 19 | M8 |
MSP-39E-F | MSP-39E-AN | MSP-39E-SS | 2.4375 | 61.91 | 93 | MSP-39E-SS | 2.4375 | 19 | M8 |
MSP-40E-F | MSP-40E-AN | MSP-40E-SS | 2.5000 | 63.50 | 93 | MSP-40E-SS | 2.5000 | 19 | M8 |
MSP-47E-F | MSP-47E-AN | MSP-47E-SS | 2.9375 | 74.61 | 103 | MSP-47E-SS | 2.9375 | 19 | M8 |
MSP-48E-F | MSP-48E-AN | MSP-48E-SS | 3.0000 | 76.20 | 108 | MSP-48E-SS | 3.0000 | 19 | M8 |
