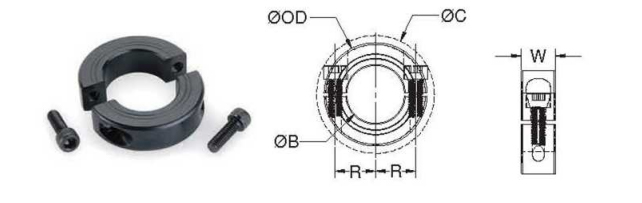

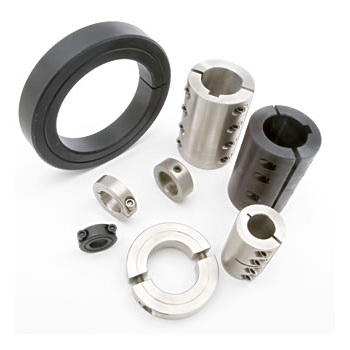

MSP two piece clamp style collar
- Does not mar the shaft.
- Single point faced.
- Available with keyways.
- Opposing screws available.
- Width tolerance: +.076 mm -.254 mm
- Bore tolerance: +.050 mm +.012 mm
Diameter Data
BLACK
OXIDE STEEL |
ZINC
PLATED STEEL |
ALUMINUM | STAINLESS
STEEL |
316
STAINLESS STEEL |
PLASTIC | OUTER SCREW BORE DIAM. LOCATION B (mm) OD (mm) R (mm) | CLEARANCE DIAMETER C (mm) MAX | WIDTH W (mm) | FORGED
CLAMP SCREW |
||
MSP-3-F | MSP-3-FZ | MSP-3-A | MSP-3SS | 3 | 16 | 5.51 | 20.8 | 9 | M3 | ||
MSP-4-F | MSP4-FZ | MSP-4-A | MSP-4-SS | MSP-4-ST | MSP-4-P | 4 | 16 | 5.51 | 20.8 | 9 | M3 |
MSP-5-F | MSP-5-FZ | MSP-5-A | MSP-5-SS | MSP-5-ST | MSP-5-P | 5 | 16 | 5.51 | 20.8 | 9 | M3 |
MSP-6-F | MSP-6-FZ | MSP-6-A | MSP-6-SS | MSP-6-ST | MSP-6-P | 6 | 16 | 5.51 | 20.8 | 9 | M3 |
MSP-7-F | MSP-7-FZ | MSP-7-A | MSP-7-SS | 7 | 18 | 6.50 | 22.4 | 9 | M3 | ||
MSP-8-F | MSP-8-FZ | MSP-8-A | MSP-8-SS | MSP-8-ST | MSP-8-P | 8 | 18 | 6.50 | 22.4 | 9 | M3 |
MSP-9-F | MSP-9-FZ | MSP-9-A | MSP-9-SS | 9 | 24 | 8.51 | 26.3 | 9 | M3 | ||
MSP-10-F | MSP-10-FZ | MSP-10-A | MSP-10-SS | MSP-1O-ST | MSP-10-P | 10 | 24 | 8.51 | 26.3 | 9 | M3 |
MSP-11-F | MSP-11-FZ | MSP-11-A | MSP-11-SS | 11 | 28 | 10.01 | 32.0 | 11 | M4 | ||
MSP-12-F | MSP-12-FZ | MSP-12-A | MSP-12-SS | MSP-12-ST | MSP-12-P | 12 | 28 | 10.01 | 32.0 | 11 | M4 |
MSP-13-F | MSP-13-FZ | MSP-13-A | MSP-13-SS | 13 | 30 | 11.00 | 33.7 | 11 | M4 | ||
MSP-14-F | MSP-14-FZ | MSP-14-A | MSP-14-SS | MSP-14-ST | MSP-14-P | 14 | 30 | 11.00 | 33.7 | 11 | M4 |
MSP-15-F | MSP-15-FZ | MSP-15-A | MSP-15-SS | MSP-15-ST | MSP-15-P | 15 | 34 | 12.50 | 39.3 | 13 | M5 |
MSP-16-F | MSP-16-FZ | MSP-16-A | MSP-16-SS | MSP-16-ST | MSP-16-P | 16 | 34 | 12.50 | 39.3 | 13 | M5 |
MSP-17-F | MSP-17-FZ | MSP-17-A | MSP-17-SS | 17 | 36 | 13.49 | 41.1 | 13 | M5 | ||
MSP-18-F | MSP-18-FZ | MSP-18-A | MSP-18-SS | 18 | 36 | 13.49 | 41.1 | 13 | M5 | ||
MSP-19-F | MSP-19-FZ | MSP-19-A | MSP-19-SS | 19 | 40 | 14.73 | 47.4 | 15 | M6 | ||
MSP-20-F | MSP-20-FZ | MSP-20-A | MSP-20-SS | MSP-20-ST | MSP-20-P | 20 | 40 | 14.73 | 47.4 | 15 | M6 |
MSP-21-F | MSP-21-FZ | MSP-21-A | MSP-21-SS | 21 | 42 | 16.00 | 49.5 | 15 | M6 | ||
MSP-22-F | MSP-22-FZ | MSP-22-A | MSP-22-SS | MSP-22-P | 22 | 42 | 16.00 | 49.5 | 15 | M6 | |
MSP-23-F | MSP-23-FZ | MSP-23-A | MSP-23-SS | 23 | 45 | 17.50 | 52.1 | 15 | M6 | ||
MSP-24-F | MSP-24-FZ | MSP-24-A | MSP-24-SS | 24 | 45 | 17.50 | 52.1 | 15 | M6 | ||
MSP-25-F | MSP-25-FZ | MSP-25-A | MSP-25-SS | MSP-25-ST | MSP-25-P | 25 | 45 | 17.50 | 52.1 | 15 | M6 |
MSP-26-F | MSP-26-FZ | MSP-26-A | MSP-26-SS | 26 | 48 | 19.00 | 54.7 | 15 | M6 | ||
MSP-28-F | MSP-28-FZ | MSP-28-A | MSP-28-SS | MSP-28-P | 28 | 48 | 19.00 | 54.7 | 15 | M6 | |
MSP-30-F | MSP-30-FZ | MSP-30-A | MSP-30-SS | MSP-30-ST | MSP-30-P | 30 | 54 | 21.49 | 59.2 | 15 | M6 |
MSP-32-F | MSP-32-FZ | MSP-32-A | MSP-32-SS | 32 | 54 | 21.49 | 59.2 | 15 | M6 | ||
MSP-34-F | MSP-34-FZ | MSP-34-A | MSP-34-SS | 34 | 57 | 23.24 | 62.4 | 15 | M6 | ||
MSP-35-F | MSP-35-FZ | MSP-35-A | MSP-35-SS | 35 | 57 | 23.24 | 62.4 | 15 | M6 | ||
MSP-36-F | MSP-36-FZ | MSP-36-A | MSP-36-SS | 36 | 57 | 23.24 | 62.4 | 15 | M6 | ||
MSP-38-F | MSP-38-FZ | MSP-38-A | MSP-38-SS | 38 | 60 | 24.99 | 65.6 | 15 | M6 | ||
MSP-40-F MSP-40-FZ | MSP-40-A | MSP-40-SS | MSP-40-ST | 40 | 60 | 24.99 | 65.6 | 15 | M6 | ||
MSP-42-F | MSP-42-FZ | MSP-42-A | MSP42-SS | 42 | 73 | 29.49 | 80.1 | 19 | M8 | ||
MSP45-F | MSP-45-FZ | MSP-45-A | MSP-45-SS | 45 | 73 | 29.49 | 80.1 | 19 | M8 | ||
MSP-48-F | MSP-48-FZ | MSP-48-A | MSP-48-SS | 48 | 78 | 32.00 | 84.7 | 19 | M8 | ||
MSP-50-F | MSP-50-FZ | MSP-50-A | MSP-50-SS | MSP-50-ST | 50 | 78 | 32.00 | 84.7 | 19 | M8 | |
MSP-54-F | MSP-54-SS | 54 | 82 | 34.24 | 88.8 | 19 | M8 | ||||
MSP-55-F | MSP-55-SS | 55 | 82 | 34.24 | 88.8 | 19 | M8 | ||||
MSP-60-F | MSP-60-SS | 60 | 88 | 37.01 | 94.0 | 19 | M8 | ||||
MSP-65-F | MSP-65-SS | 65 | 93 | 39.50 | 99.8 | 19 | M8 | ||||
MSP-70-F | MSP-70-SS | 70 | 98 | 42.01 | 104.5 | 19 | M8 | ||||
MSP-75-F | MSP-75-SS | 75 | 103 | 44.50 | 109.1 | 19 | M8 | ||||
MSP-80-F | MSP-80-SS | 80 | 108 | 46.99 | 113.8 | 19 | M8 |
