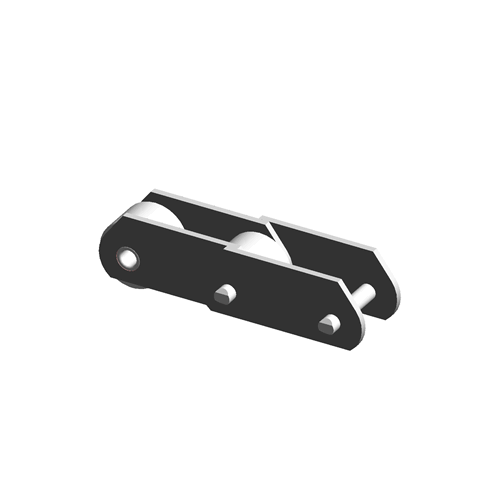

MT series conveyor chains

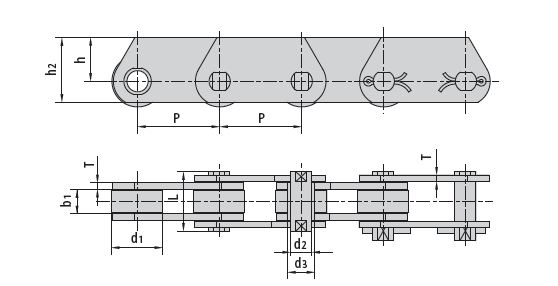

Dimensional parameters
DIN
链号 |
节距 P itch | 滚子直径 Roller diameter | 销轴直径 Pn
diameter |
套筒直径 Bush diameter | 链板厚度 Plate thickness | ||||
DIN
Chan No. |
P | d1
max |
d2
max |
d3
max |
T
max |
||||
mm | mm | mm | mm | mm | |||||
MT20 | 40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 25.0 | 6.0 | 9.0 | 2.5 |
MT28 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 30.0 | 7.0 | 10.0 | 3.0 |
MT40 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 36.0 | 8.5 | 12.5 | 3.5 |
MT56 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 42.0 | 10.0 | 15.0 | 4.0 |
MT80 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 50.0 | 12.0 | 18.0 | 5.0 |
MT112 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 60.0 | 15.0 | 21.0 | 6.0 |
MT160 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 70.0 | 18.0 | 25.0 | 7.0 |
MT224 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 85.0 | 21.0 | 30.0 | 8.0 |
MT315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 100.0 | 25.0 | 36.0 | 10.0 |
MT450 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 120.0 | 30.0 | 42.0 | 12.0 |
DIN
链号 DIN ChainNo. |
内节内宽 Width between innerplates | 销轴长度 Pin length | 链板高度 Plate depth | 极限拉伸载荷 Ultimate tensile strength | ||
b1
min |
L
max |
h2
max |
h
max |
Q
min |
*Q
min |
|
mm | mm | mm | mm | kN/bf | kN/bf | |
MT20 | 16.0 | 35.0 | 25.0 | 16.0 | 20.0/4545 | 32.0/7270 |
MT28 | 18.0 | 40.0 | 30.0 | 20.0 | 28.0/6364 | 42.0/9545 |
MT40 | 20.0 | 45.0 | 35.0 | 22.5 | 40.0/9091 | 60.0/13635 |
MT56 | 24.0 | 52.0 | 45.0 | 30.0 | 56.0/12727 | 85.0/19318 |
MT80 | 28.0 | 62.0 | 50.0 | 32.5 | 80.0/18182 | 125.0/28408 |
MT112 | 32.0 | 73.0 | 60.0 | 40.0 | 112.0/25454 | 175.0/39768 |
MT160 | 37.0 | 85.0 | 70.0 | 45.0 | 160.0/36364 | 260.0/59090 |
MT224 | 43.0 | 98.0 | 90.0 | 60.0 | 224.0/50909 | 340.0/77272 |
MT315 | 48.0 | 112.0 | 100.0 | 65.0 | 315.0/71591 | 520.0/118180 |
MT450 | 56.0 | 135.0 | 120.0 | 80.0 | 450.0/102272 | 700.0/159089 |
*Q denotes the ultim ate tensile strength after hardened
