Multiflex conveyor chains
- Modular Frame Construction: The system features an open, modular frame design, which likely means it’s customizable and can be easily adjusted or expanded to fit different needs.
- Non-Powered Turning Discs: Instead of using powered components to make turns, this system employs non-powered discs. These discs guide the chain through tight-radius turns, which can help reduce overall system costs and complexity.
- Turning Disc Sizes: The system uses turning discs with a minimum size of 5 inches and a 10-inch radius. The size of these discs is crucial for ensuring smooth turns and maintaining the efficiency of the conveyor.
- Multi-Flex Chain Conveyors: This type of conveyor is suitable for long-distance conveying and can handle various elevation changes. The flexibility of the chain allows it to navigate through complex paths, making it versatile for different industrial applications.
- Economical Alternative: By using non-powered components and modular construction, this system provides a more budget-friendly option compared to more complex tabletop chain conveyors. This can be particularly advantageous in environments where cost-efficiency is a priority.
Diameter Data

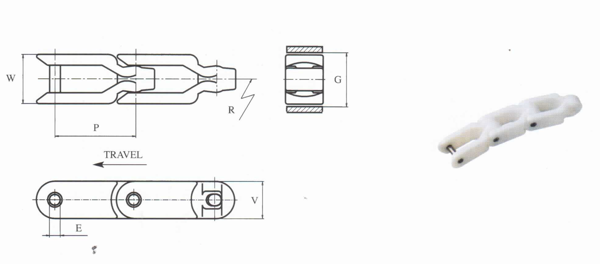

| Type | Pitch
P mm |
Plate width
W mm |
G | E | V | Working load
Q(max) KN |
Sideflex radius R(min)
mm |
Backflex radius
(min) mm |
Weight per meter
q Kg/m |
| 1400 | 82.5 | 53.3 | 54 | 11 | 38 | 8 | 450 | 75 | 2.1 |

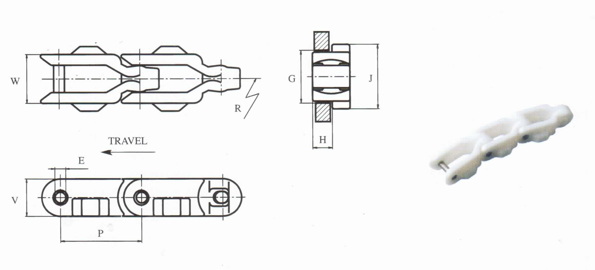

| Type | Pitch
P mm |
Plate width
W mm |
G | E | J | V | H | Working load
Q(max) KN |
Sideflex radius R(min)
mm |
Backflex radius
(min) mm |
Weight per meter
q Kg/m |
| 1400TAB | 82.5 | 53.5 | 54 | 11 | 66 | 38 | 20 | 8 | 450 | 75 | 2.3 |

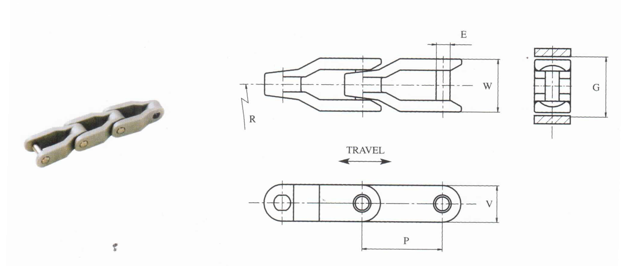

| Type | Pitch
P mm
|
Plate width
W mm |
G | E | V | Working load
Q(max) KN |
Sideflex radius R(min)
mm |
Backflex radius
(min) mm |
Weight per meter
q Kg/m |
| 2600-O | 63.5 | 42 | 44.5 | 11 | 28.4 | 6 | 600 | 75 | 1.3 |

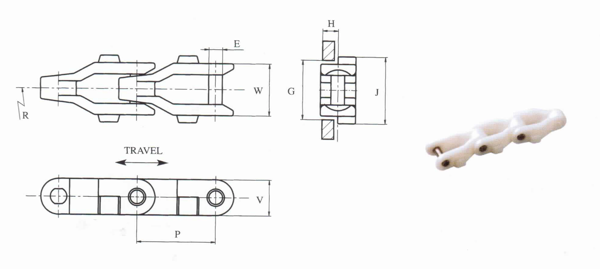

| Type | Pitch
P mm |
Plate width
W mm |
G | E | J | V | H | Working load
Q(max) KN |
Sideflex radius R(min)
mm |
Backflex radius
(min) mm |
Weight per meter
q Kg/m |
| 2600TAB-O | 63.5 | 42 | 44.5 | 11 | 54 | 28.4 | 14 | 6 | 600 | 75 | 1.4 |
