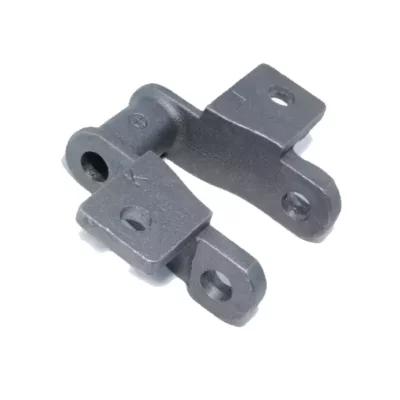

Narrow Series Welded Chain and Attachment

Description

Narrow Series Welded Chain Attachments

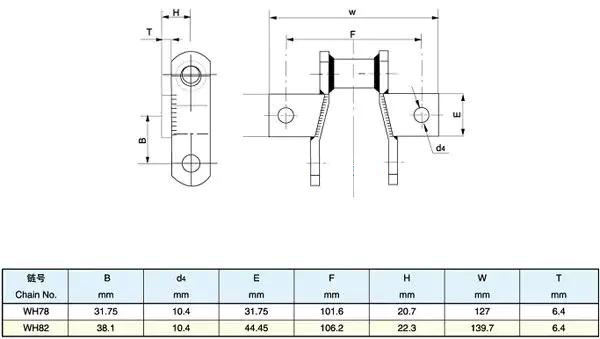

Table No.1

Chain No.	B mm	d4 mm	E mm	F mm	H mm	W mm	T mm
WH78	31.75	10.4	31.75	101.6	20.7	127	6.4
WH82	38.1	10.4	44.45	1062	22.3	139.7	6.4

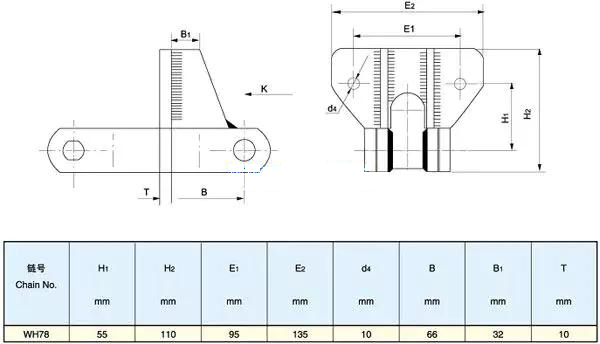

Table No.2

Chain No.	H1 mm	H2 mm	E1 mm	E2 mm	D4 mm	B mm	B1 mm	T mm
WH78	55	110	95	135	10	66	32	10

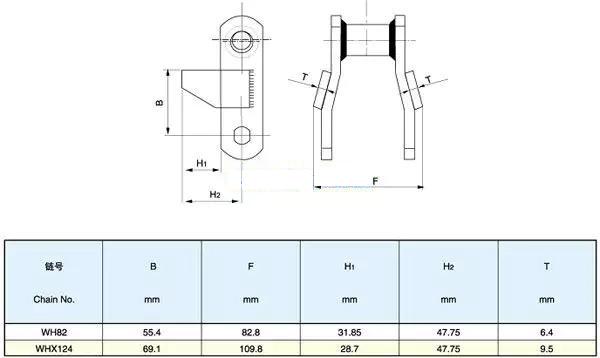

Table No.1

Chain No.

H
mm

WH82

55.4

41.4

31.85

47.75

6.4

WHX124

69.1

54.9

28.7

47.75

9.5

Table No.2

Chain No.

B
mm

w
mm

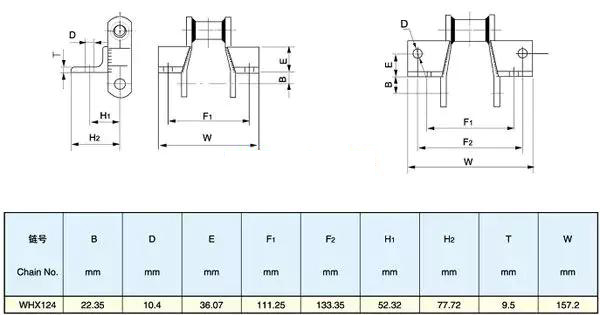

WHX124

22.35

10.4

36.07

111.25

133.35

52.32

77.72

9.5

157.2

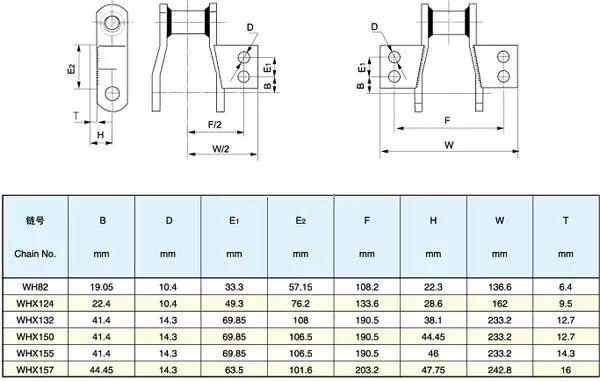

Table No.1

Chain No.	B mm	D mm	E1 mm	E2 mm	F mm	H mm	W mm	T mm
WH82	19.05	10.4	33.3	57.15	108.2	22.3	136.6	6.4
WHX124	22.4	10.4	49.3	76.2	133.6	28.6	162	9.5
WHX132	41.4	14.3	69.85	108	190.5	38.1	233.2	12.7
WHX150	41.4	14.3	69.85	106.5	190.5	44.45	233.2	12.7
WHX155	41.4	14.3	69.85	106.5	190.5	46	233.2	14.3
WHX157	44.45	14.3	63.5	101.6	203.2	47.75	242.8	16

Table No.2

Chain No.

H
mm

WH82

55.4

82.8

31.85

47.75

6.4

WHX124

69.1

109.8

28.7

47.75

9.5

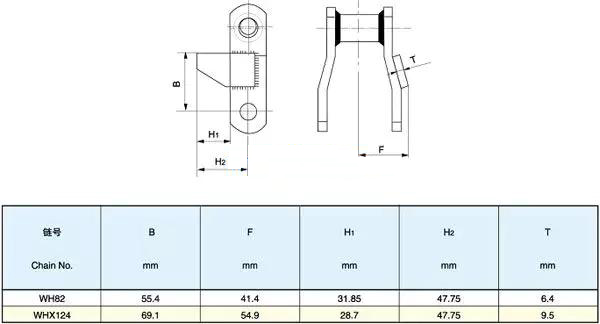

Table No.1

Chain No.

H
mm

WH82

55.4

41.4

31.85

47.75

6.4

WHX124

69.1

54.9

28.7

47.75

9.5

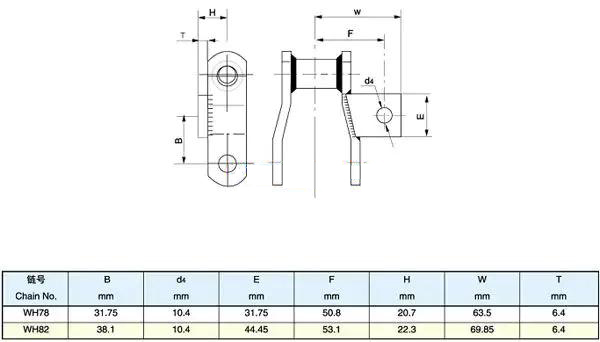

Table No.2

Chain No.	B mm	d4 mm	E mm	F mm	H mm	W mm	T mm
WH78	31.75	10.4	31.75	50.8	20.7	63.5	6.4
WH82	38.1	10.4	44.45	53.1	22.3	69.85	6.4

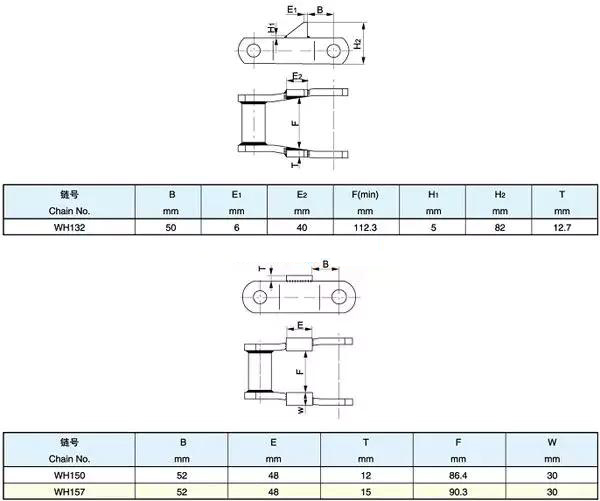

Table No.1

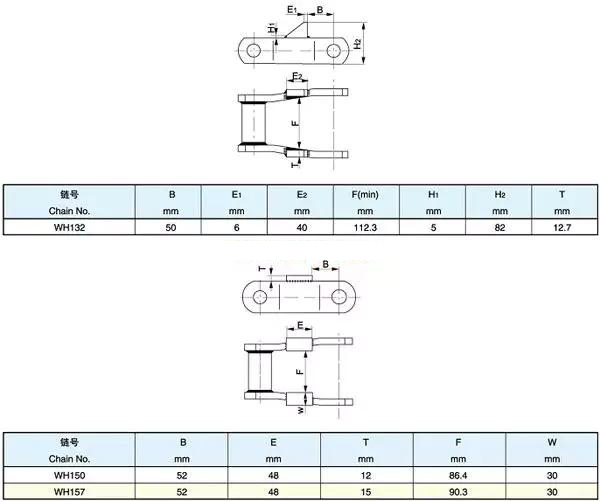

Chain No.	B mm	E1 mm	E2 mm	F(min) mm	H1 mm	H2 mm	T mm
WH150	50	6	40	112.3	5	82	12.7

Table No.2

Chain No.	B mm	E mm	T mm	F mm	W mm
WH150	52	48	12	86.4	30
WH157	52	48	15	90.3	30
