NE series Bucket elevator chain
NE series Bucket elevator chain
With the increasing demands for higher production rates, the need for a robust and dependable bucket elevator chain is more critical than ever. Our bucket elevator chains are engineered for the most demanding lifting applications worldwide, designed to excel in heavy-duty environments.
What sets our chains apart is our commitment to quality. We use superior steel alloys and advanced manufacturing techniques to produce chains that can withstand even the harshest conditions. Our extensive industry experience and high-quality products ensure that we exceed your expectations.
But our commitment doesn’t stop with just the chains. We also offer a comprehensive range of components, including bucket elevator chain sprockets, shafting, bearings, motors, and gear reducers. Each component is designed to ensure safe, efficient transport, even for high-temperature materials.

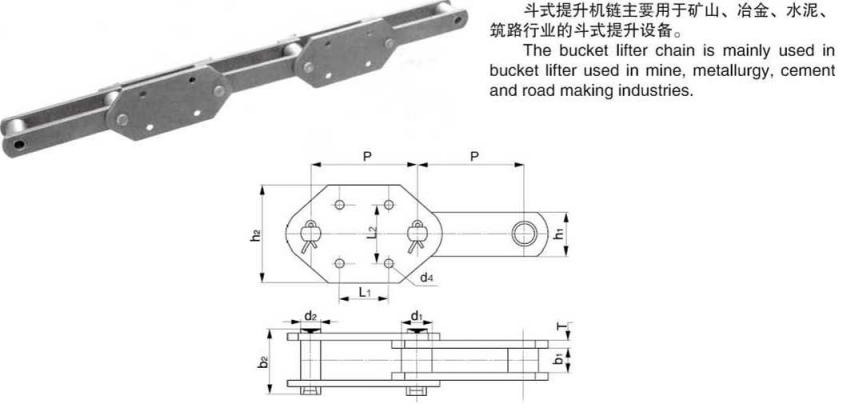

Diameter Data
| Chain | Pitch | Diameter | Diameter | Length of | Inner Width | Thickness of | Height of | Height of | Tensile |
| No, | of Roller | of Pin | Pin | of Inner Link | Sidebar | Sidebar | Attached Sidebar | Strength | |
| P | d1(max) | d2 | b2 | b1(min) | T | h1 | h2 | Q(min) | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN | |
| Lifting Chain for Ne Model Machine | |||||||||
| NE15-101.6 | 101.60 | 26.5 | 11.50 | 70 | 27.0 | 6 | 35 | 35.0 | 128.1 |
| NE30-152.4 | 152.40 | 35.0 | 15.50 | 90 | 36.5 | 8 | 50 | 50.0 | 245.0 |
| NE50-152.4 | 152.40 | 35.0 | 15.50 | 90 | 36.5 | 8 | 50 | 110.0 | 245.0 |
| NE100-200 | 200.00 | 42.0 | 19.10 | 120 | 51.8 | 10 | 60 | 125.0 | 375.0 |
| NE150-200 | 200.00 | 48.5 | 22.23 | 120 | 57.8 | 10 | 60 | 125.0 | 375.0 |
| NE300-250 | 250.00 | 70 | 35 | 165 | 75 | 16 | 100 | 150.0 | 450.0 |
| NE300-250 | 250.00 | 63.5 | 31.75 | 146 | 67.4 | 12 | 90 | 150.0 | 450.0 |
| NP152.4 | 152.40 | 357 | 15.88 | 88 | 38 | 7.9 | 45 | 105 | 245.0 |
| FE12600 | 152.40 | 35 | 15.88 | 86 | 36.5 | 7.9 | 45 | 120 | 245.0 |
Dimensions of Attachment
| Chain No. | d4 | L1 | L2 |
| NE15-101.6 | 10 | 50 | 50 |
| NE30-152.4 | 15 | 75 | 70 |
| NE50-152.4 | 15 | 75 | 70 |
| EF100-200 | 15 | 75 | 70 |
| EF150-200 | 18 | 100 | 80 |
| NE300-250 | 18 | 140 | 100 |
| NE300-250A | 20 | 140 | 100 |
| NP152.4 | 15 | 75 | 70 |
| FE12600 | 15 | 75 | 70 |
About us
For a complete solution, we provide custom bucket elevator conveyor systems tailored to your specific needs. Our team of skilled engineers is ready to collaborate with you to design a system that will elevate your production capabilities to new heights.
Experience the difference of working with a provider who understands your needs and is dedicated to delivering excellence. Let us help you optimize your operations with our top-of-the-line bucket elevator solutions.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
