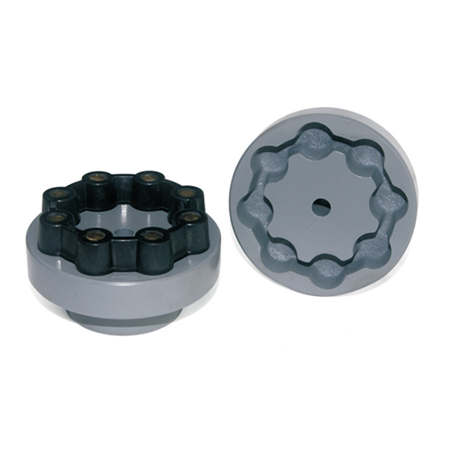

NM Type coupling
NM Type coupling
NM couplings are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.

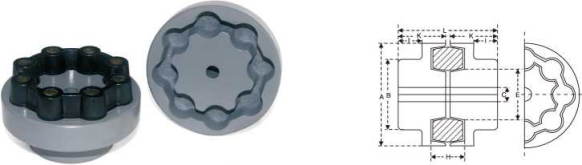

Diameter Data
| Type | Out dia. | Hub | Bore size | Rated | Misalignment | Max
speed |
L | t | ||||||||
| A | B | Min | Max | Stock Torque | Parellel | Angular | (rpm) | 0 to +0.1 | ||||||||
| 9 | 20 | 7 | 0.4 | 0.2 | 0.3 | 6000 | 57 | 27 | 17 | 3 | 15 | 26 | 0.6 | |||
| MH-65 | 65 | 45 | 12 | 25 | 8 | 0.7 | 0.2 | 0.3 | 6000 | 63 | 30 | 19 | 3 | 16 | 33 | 0.9 |
| MH-80 | 80 | 52 | 16 | 30 | 10 | 1.6 | 0.2 | 0.3 | 5500 | 73 | 35 | 23 | 3 | 18 | 41 | 1.5 |
| MH-90 | 90 | 62 | 20 | 35 | 12 | 3.7 | 0.2 | 0.3 | 5000 | 83 | 40 | 25 | 3 | 21 | 46 | 2.2 |
| MH-115 | 115 | 80 | 25 | 45 | 12 | 8 | 0.2 | 0.3 | 4600 | 113 | 55 | 33 | 3 | 29 | 58 | 5 |
| MH-130 | 130 | 90 | 27 | 50 | 12 | 12 | 0.2 | 0.3 | 4400 | 123 | 60 | 37 | 3 | 32 | 65 | 7 |
| MH-145 | 145 | 100 | 30 | 55 | 12 | 20 | 0.2 | 0.3 | 4200 | 133 | 65 | 39 | 3 | 35 | 72 | 9.2 |
| MH-175 | 175 | 115 | 35 | 65 | 16 | 43 | 0.2 | 0.3 | 3800 | 163 | 80 | 47 | 3 | 43 | 84 | 16.1 |
| MH-200 | 200 | 130 | 50 | 80 | 20 | 65 | 0.2 | 0.3 | 3600 | 223 | 110 | 53 | 3 | 69 | 92 | 35.5 |
| MH-230 | 230 | 150 | 20 | 85 | 20 | – | 0.2 | 0.3 | – | 233 | 115 | 56 | 3 | 65 | 110 | 42 |
