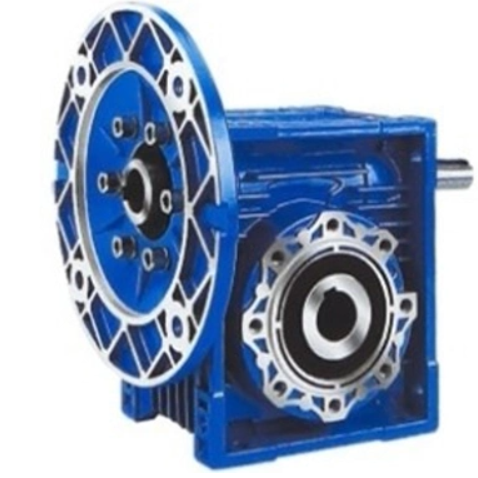

NMRV-VS Dual Input Worm Gearbox with IEC Motor Flange

Worm Gearbox (NMRV-VS Dual Input) with IEC Motor Flange

Worm Gearbox (NMRV-VS worm gearbox is a dual-input mode), one side can be connected with an ordinary motor, stepper motor, stepless speed changer, or flanged electromagnetic clutch brake group, no coupling is needed to connect, and the other side can be connected with a coupling or shaft hole, which can achieve more than 2 sets of equipment synchronization job. NMRV-VS worm gearbox is a hollow shaft output type, which can be directly connected to the solid shaft of the equipment or the output shaft with accessories.
Power-trans only adopts thickened worm gear, high standard copper and more copper material make the worm gear better wear resistance, better impact strength, and crack resistance than ordinary worm gearboxes in the market.

Worm Gearbox(NMRV-VS Dual Input) Configurations:

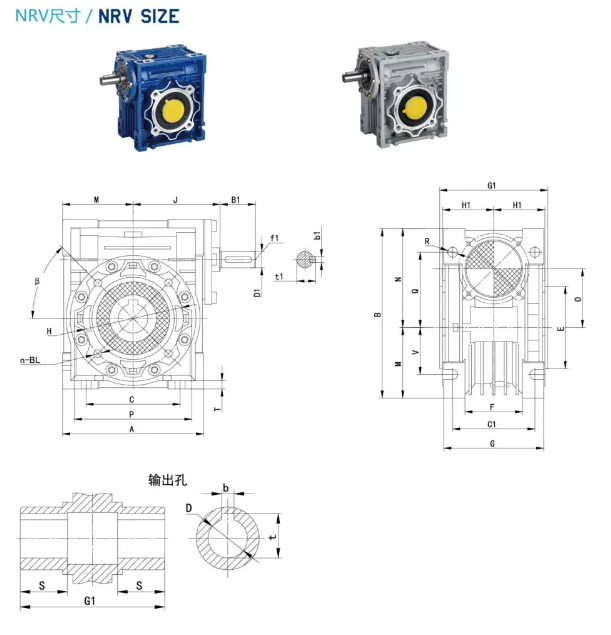

NMRV-VS Worm Gearbox Parts Structure Drawing:

Worm Gearbox(NMRV-VS Dual Input) Features:

• The weight of the NMRV-VS worm gearbox is relatively light. The shell is made of aluminum alloy. It has the advantages of being lightweight, having superior strength, exquisite appearance, high heat dissipation performance, long service life, no noise, and so on. It is easy to connect with the motor.
• NMRV-VS worm drive gearbox is more practical transmission equipment, and in the appearance design and its integration are more in line with the needs of the public than other types of reducers.
• The application field and popularity of the NMRV-VS worm gear reducer made of aluminum alloy are even better than other types of reducer. It is a kind of reducer with high practicability and also a combination of advanced technology at home and abroad.
• NMRV-VS worm gearbox is very convenient to connect with ordinary motor, flange electromagnetic clutch brake unit and does not need coupling. Suitable for all-around installation, and the output torque is relatively large, works fairly smoothly, and so on.

Worm Gearbox Main Applications:

(1) Mechanical-electromechanical industry
(2) Automatic production line
(3) Transport & Packaging
(4) Food processing & Beverage
(5) Conveyor & Material handling
(6) Mining, Quarry & Cement
(7) Construction & Metal processing
(8) Beverage
(9) Plastic & Chemical industry

How to Customize Worm Gearbox?

We own rich production and industrial experience to provide the finest quality worm gearbox. Each worm gearbox is made of superior raw materials and manufactured by advanced processing technology to ensure its performance and durability for industrial use. We have big production capability and the ability to deliver the worm gearboxes for you in a short time. Besides, customization on the worm gearbox (e.g., shaft diameter, shaft length) is available at Power-trans on your specific requirements. Our sales team has the expertise to assist you with model selection and solution suggestions and offer OEM service. Contact us freely for any questions.

Instructions for Purchasing Worm Gearbox:

To order the worm gear reducer, please confirm the following:

1. Reducer model
2. Reducer speed ratio
3. Reducer input hole diameter Input power and input flange diameter
4. Output hole size
5. Whether other accessories are required

We Also Provide Other Series of Worm Gearbox:

Cautions for Installing:

1. Please check if the rotated direction of the output shaft is correct before assembling the worm gearbox with mechanical equipment.
2. Before the worm gear reducer is assembled with the original motor and equipment, the size deviation of each shaft diameter, bore diameter, key, and key slot should be inspected to avoid affecting the performance of the reducer due to tight or loose assembly.
3. The worm gear reducer must be tightly mounted on the mechanical equipment to prevent looseness and vibration.
4. Please avoid making the worm gearbox exposed under the burning sun and in bad conditions.
5. If the worm gear reducer has been stored for 4-6 months, please check if the oil seal is soaked by lubrication oil. Maybe the oil seal lipstick to the shaft even if it loses elasticity. Since proper elasticity is an essential working condition of an oil seal, so change the oil seal.
6. All the rubber parts and air vents must not be stained with paint.
7. The mating part of the shaft should be coated with lubrication oil to avoid strike or oxidation when matching with the worm gear reducer hollow shaft.
8. Please inspect the oil level when using the worm gearbox.
9. Do not start the reducer with a full load when using a new worm gear reducer; please increase the load gradually.
10. When using a worm gear reducer that the motor can directly connect with, if the motor weight is higher, a supporting unit should be set up.
11. Please make sure the motor fan is in a well-ventilated condition in case the radiation efficiency is influenced.
12. The standard working temperature of the worm gear reducer ranges from -5℃ to 40℃; please get in contact with our technical staff if your working temperature is beyond the range.

Packing and Transportation

• Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
• Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
• Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
• Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Dual Input Worm Gearbox Manufacturers

Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ZQ series cylindrical gearboxes, planetary gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.
We are offering a wide range of worm reduction gearboxes to our customers, which are available with us at a very reasonable price. Our product is highly acknowledged in the market for its superior performance. The offered range of worm reduction gearboxes is in high demand due to its reliable performance, compact design, and low maintenance. We sincerely look forward to cooperating with you.

FAQ

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability to manufacture, processing, design, and R&D. We welcome your visit.
Q2: How do we select models and specifications?
A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…
Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.
Q4: How long should I wait for the feedback after I send the inquiry?
A4: We will reply as soon as possible, 12 hours at most.
Q5: What is your product warranty period?
A: We have the certifications of ISO9001, CE, and SGS.
Q6: What industries are your gearboxes being used in?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
