NRV Worm Gear Speed Reduction Unit - China

NMRV Worm Gearbox NRV Worm Gear Speed Reduction Unit

An NMRV/NRV worm gearbox motor reducer offers a cost-effective solution and lightweight. The NMRV/NRV worm gear reducer is compatible with both NEMA and IEC motor flanges. The NMRV worm gear motor reducer offers low lifting speed and high torque while being available in a variety of models, including the NRV 90. These units combine the benefits of a worm gear motor reducer with the features of a worm gear screw jack.

Description

NMRV NRV Gearbox Worm Gear Speed Reduction Unit 025, 030,040,050,063,075,090,110,130

An NMRV NRV worm gearbox motor reducer(NRV Worm Gear Speed Reduction Unit) offers a cost-effective solution and lightweight. The NMRV/NRV worm gear reducer is compatible with both NEMA and IEC motor flanges. The NMRV worm gear motor reducer offers low lifting speed and high torque while being available in a variety of models, including the NRV 90. These units combine the benefits of a worm gear motor reducer with the features of a worm gear screw jack.
The most significant difference between the worm gear and a conventional gear set is the type of lubricant used in the worm. Worm gears require much more lubrication than conventional gearsets because they interact through sliding rather than rolling components. Worm gears are therefore more prone to sliding wear than other gear types. It is therefore important to choose the proper lubricant for your gear set.
RV reducers NMRV worm gearboxes made of aluminum alloy are ideal for cold climates as they do not have EP complications. Polyalkylene glycols are suitable for low temperatures but may not be compatible with some seals or paints. Aluminum worm gearboxes come at competitive prices. They feature an easy-to-use backlash adjustment. In addition, the gearbox has a larger application field than other types of gearboxes.

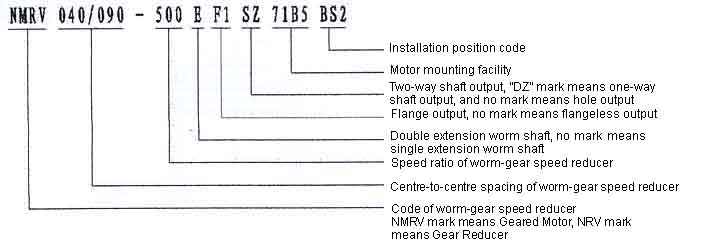

Model & Mark of NRV Worm Gear Speed Reduction Unit

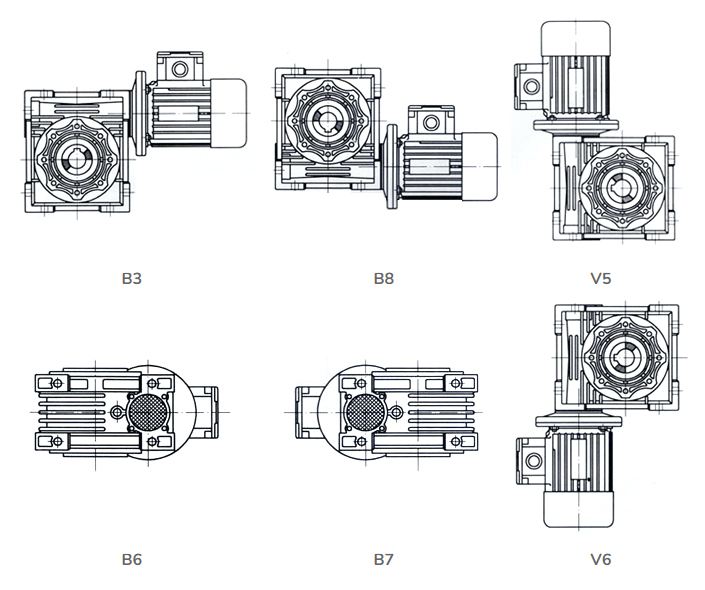

Mounting Positions of NMRV Gearbox

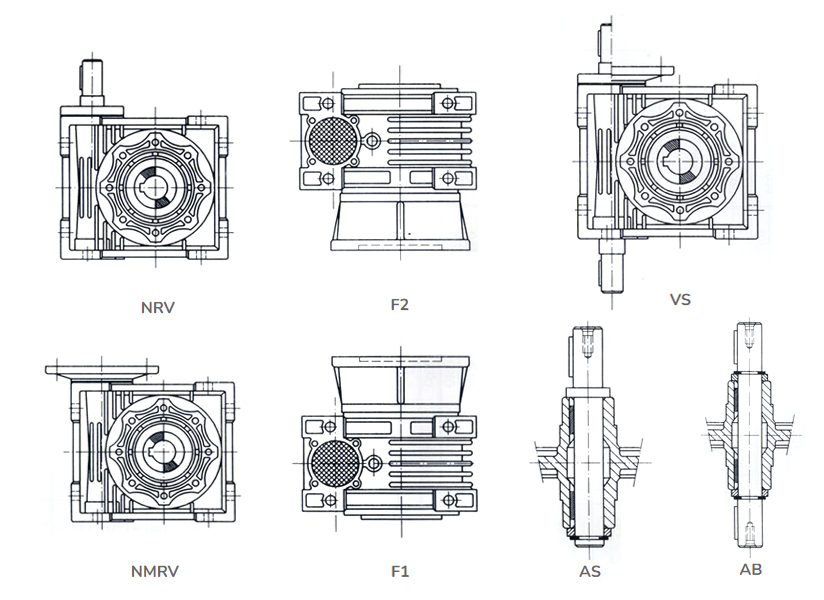

NMRV NRV Gearbox Design Chart

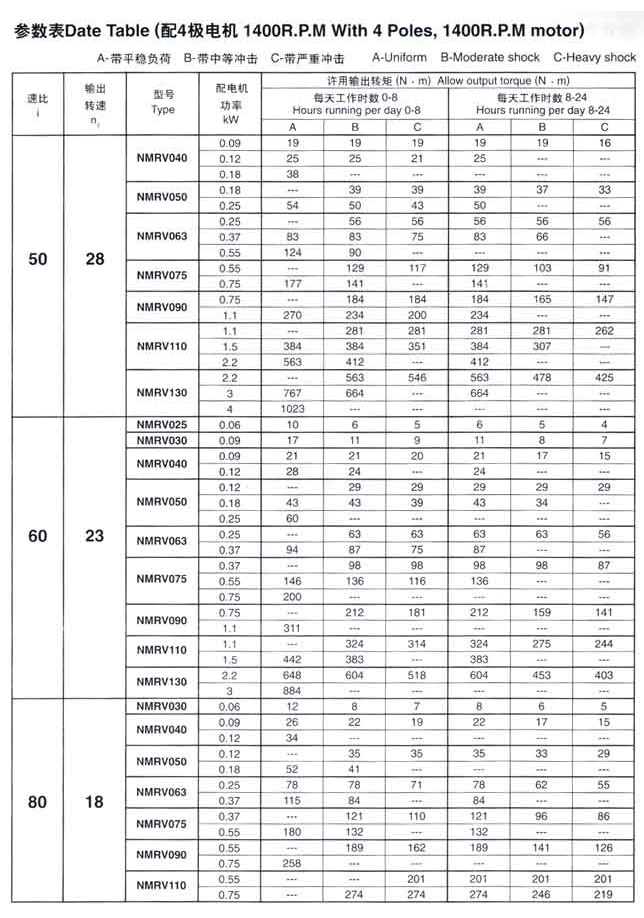

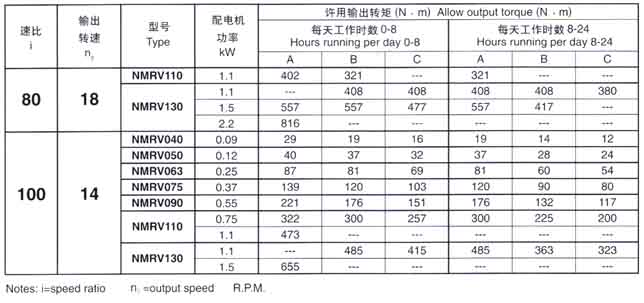

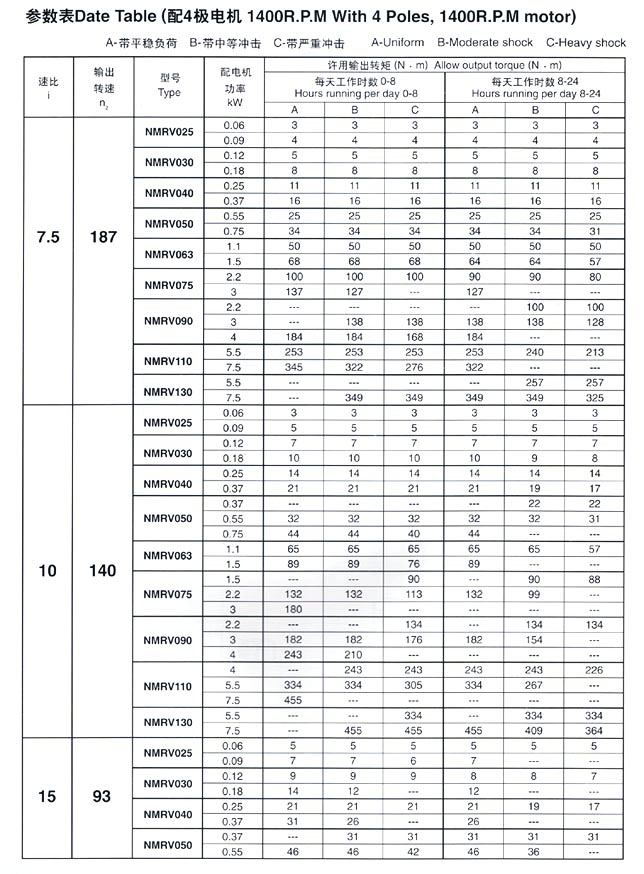

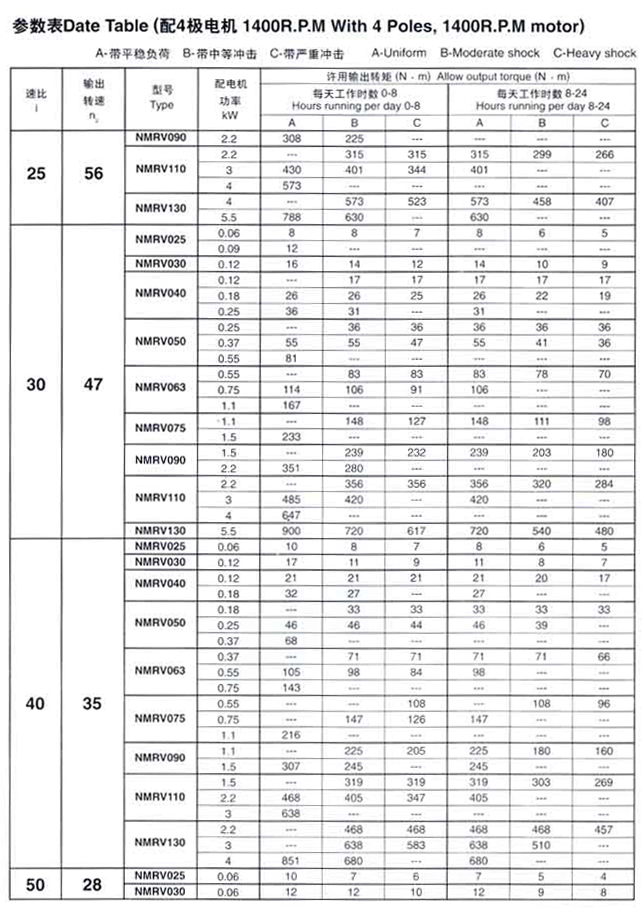

NMRV Gearbox Date Table

Size Chart & Dimensions of NMRV-NRV Gearbox

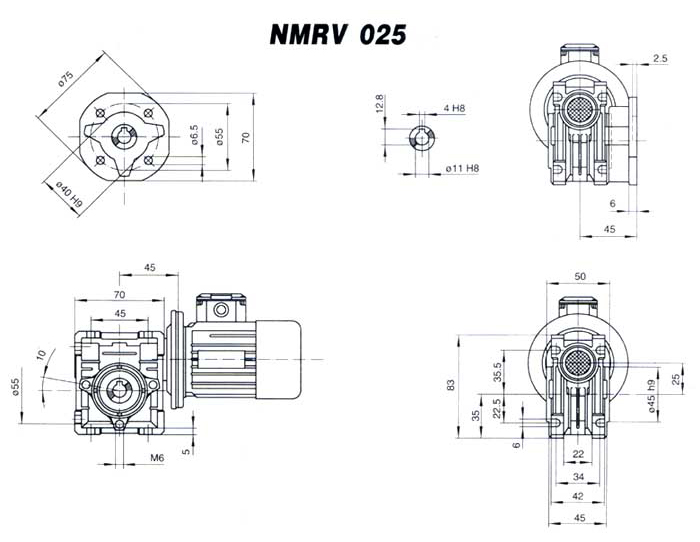

Size Chart of NMRV-NRV 025 Gearbox

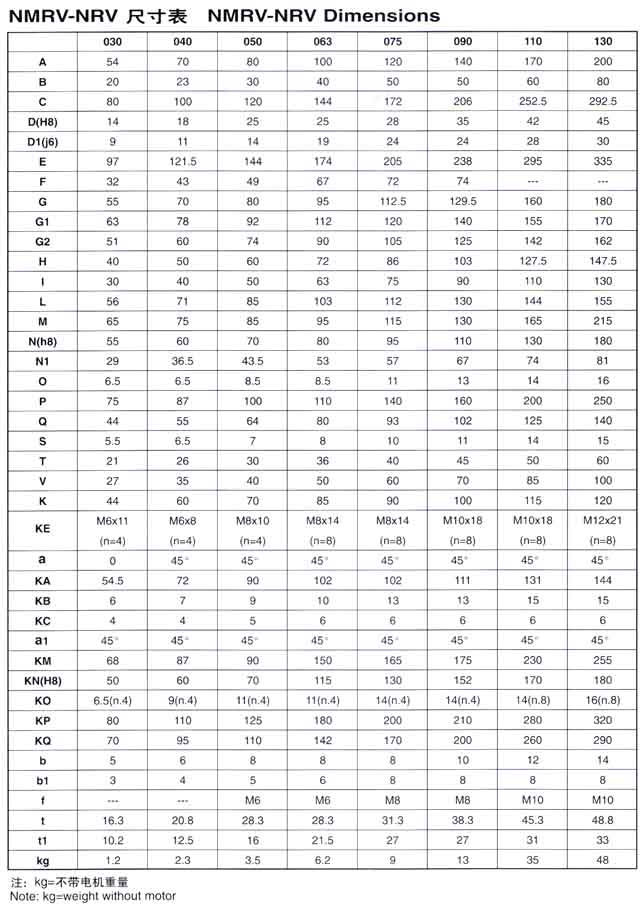

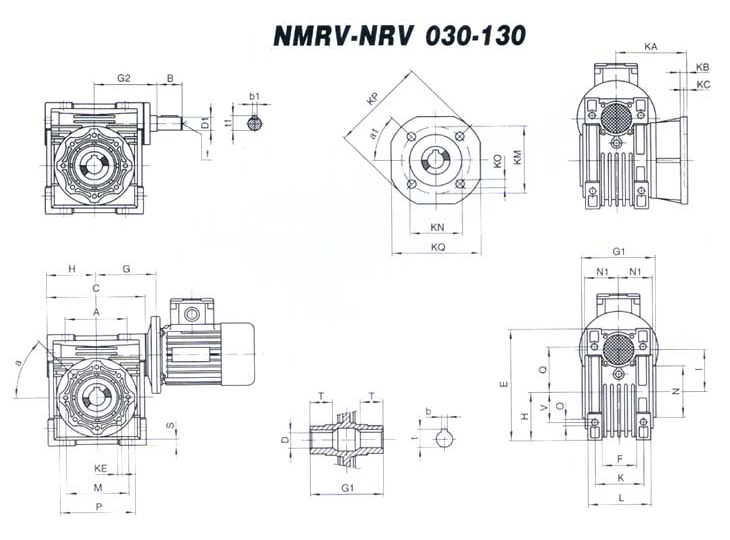

Dimensions of NMRV-NRV Gearbox 030-130

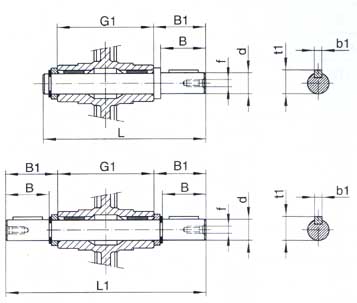

Single/double Extension Output Shaft for NMRV-NRV Gearbox

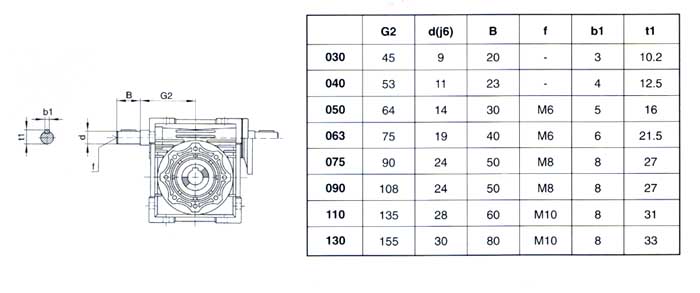

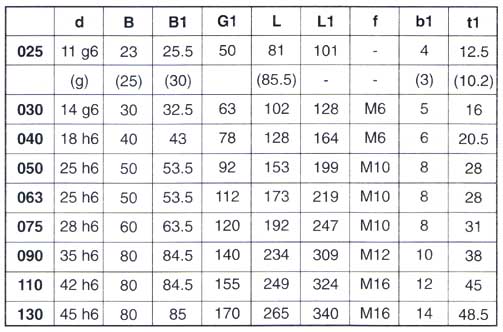

Size of Double Extension Worm Shaft for NMRV-NRV Gearbox

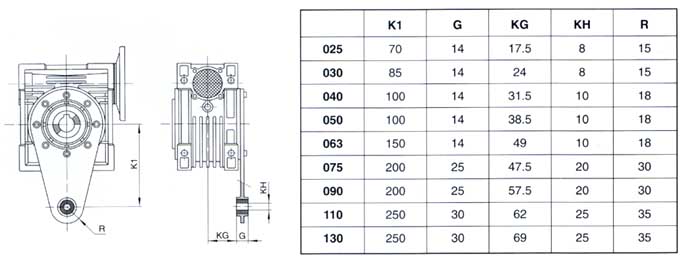

Sizes of Torque Arm

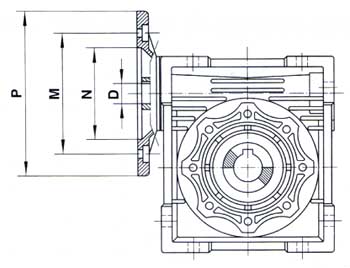

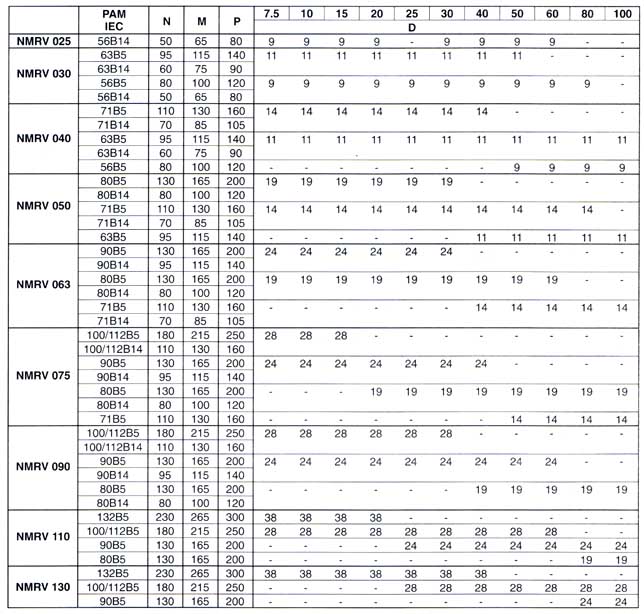

Sizes Input Flange & Hollow Input Shaft Diameter

Wholesale NRV Gearbox

In order to meet the requirements of various industries, we are one of the leading NRV gearbox manufacturers and factories in China, offers a wide range of high-quality, affordable and durable wholesale NRV gearboxes. These gear units are designed to reduce worm gears. NMRV gearbox suppliers have been serving the industry for decades. As a professional NRV gearbox manufacturer and factory, Power-trans focuses on the manufacturing of industrial gear units. In addition, our gearboxes have various features and specifications, making them ideal for different applications.
The housing of the NRV gearbox is made of high-quality aluminum alloy for high-end strength and lightweight. The worm gear is made of 20CrMnTi or wearable stannum bronze alloy for high wear resistance. The sample policy of wholesale gearbox NMRV is dependent on the volume of order. We can provide the sample after receiving the order. Contact us now to get wholesale NRV gearbox quotes!
