Non-Standard Double Pitch Conveyor Chains

Non-Standard Double Pitch Conveyor Chains

Double pitch conveyor chains are ideal for light to medium duty material handling applications. These chains are constructed using the same components as standard transmission roller chains. However, their longer side plates are able to support greater loads. Double pitch chains are commonly used in auto parts manufacturing, airport equipment manufacturers, timber mills, and timber mills.

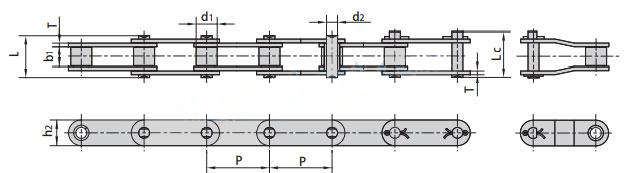

	Small Roller Type

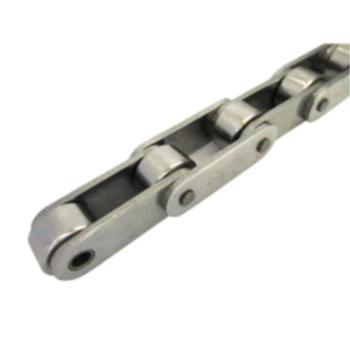

	Large Roller Type

Specifications of Non-Standard Double Pitch Conveyor Chains

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
C2050F12	31.75	10.16	9.52	5.08	20.2	21.7	15.0	2.03	18.53/4165	20.0	1.05
C2060F28	38.10	11.91	12.57	5.72	25.9	27.7	20.0	2.42	28.90/6496	32.4	1.40
C2080HF1	50.80	15.88	15.75	7.92	36.2	39.4	23.0	4.00	55.60/12499	61.1	2.49
C2080HF51	50.80	18.00	32.00	7.92	54.0	57.5	24.0	4.00	55.60/12499	61.1	2.66
C220AH-BF1	63.50	19.05	18.90	9.53	43.6	46.9	30.0	4.80	86.70/19490	95.5	3.74
C224AHF2	76.20	27.20	25.22	11.10	–	57.5	35.7	5.60	124.60/280112	139.5	5.78
C224AHLF5	76.20	43.00	25.22	11.10	53.5	–	35.7	5.60	124.60/280112	142.6	7.94
C208BF3	25.40	8.51	7.95	4.45	16.7	–	11.8	1.50	10.00/22480	11.5	0.61
212BHF1	38.10	12.07	11.68	5.94	25.2	28.0	40.8	2.42	31.80/7149	36.6	2.73
C212BF2	38.10	12.07	11.68	5.72	22.5	25.5	35.0	1.85	28.90/6496	33.3	1.88
C212BF9	38.10	12.07	11.68	5.72	22.5	25.2	20.0	1.85	28.90/6496	33.3	1.10
216BF4	50.80	15.88	17.90	8.28	36.1	39.1	21.0	3.70	60.00/13488	66.0	1.80
C216BF1	50.80	15.88	17.02	8.28	36.1	39.1	20.0	4.00/3.00	60.00/13488	66.0	2.01
220BF1	63.50	19.05	19.56	10.19	36.5	37.6	27.0	3.00	65.00/14612	74.7	1.81

Sprockets for Double Pitch Conveyor Chains

Sprockets for double pitch conveyor chains are standard issue in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.
The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.
Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.

Advantages and Disadvantages of Double Pitch Conveyor Chains

When selecting a chain for your conveyor system, it is important to know what you’re getting. Learn about Hollow-pin, and S-roller chains. Each type of chain has its own unique benefits and drawbacks, so it is vital to choose the right one for your application. Below is a brief overview of each type. When looking for a double-pitch chain, make sure to compare the following specifications:

Hollow-pin chain

When it comes to conveyor chains, hollow-pin double-pitch options have a few distinct advantages over self-lube and roller chain. This is because the latter type uses rollers and has a much lower maximum allowable load. Moreover, they allow for custom attachments such as cross rods and sprockets to be mounted. In addition, hollow-pin double-pitch options are more versatile than roller chains and are available in stainless steel and carbon steel.
Double-pitch hollow-pin conveyor chains are similar to roller chains, but they come without rollers. Their unique design allows for the insertion of cross rods and other attachments, like mesh nets, in the middle of the chain. These chains fit into standard sprockets and are usually used in tandem with roller chains. Because of their versatility, these chains are commonly used in conveying systems. Because of their low price, they are an excellent investment for any business.
Double-pitch roller chains are the most common type of roller chain in use. They’re commonly used in the auto parts, electrical, and precision machinery industries. They have the same basic construction as standard roller chains, but they have flat-shaped link plates and longer attachments. In terms of specification, Double-pitch chains are governed by ANSI B29.4, ISO 1275-A, and JIS B 1803.

S-roller

Double pitch conveyor chains are made with larger roller diameters than standard chains. Double pitch chains are typically used for agricultural and light-duty conveyor applications. The roller diameter is larger than the chain’s side plates to keep the chain in place. Double pitch chains have oversized rollers and are commonly used on conveyors used in cotton fields. They also meet the requirements of the American Standard standards for length and width of plates.
The S-roller is an ideal attachment for short-length conveyors, while the R-roller is made for longer ones. Both have a variety of standard and special attachments.
Larger rollers project above and below the link plates, producing a rolling action. Larger rollers minimize friction across the supporting surface. An S-roller requires at least 30 teeth for maximum efficiency. When choosing a double-pitch roller chain, the maximum tension and roller load are considered. If heavy bending or twisting forces are present, large-pitch chains should be used.

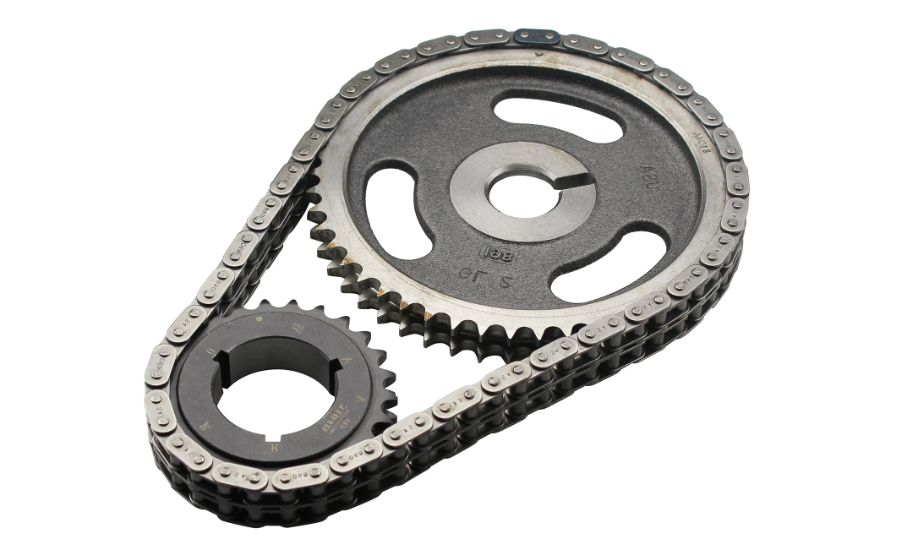

Chains and Sprockets

• Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
• Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
• It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. We’re one of the leading manufacturers and suppliers in China. We can offer various high-quality drive chains and sprockets for sale.

Packaging of Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
