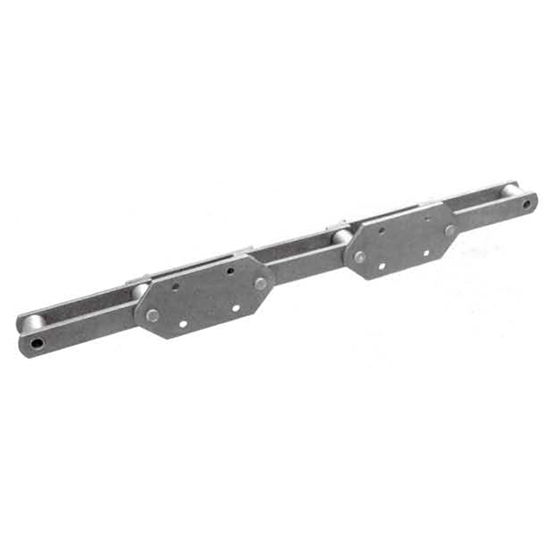

NP series Bucket elevator chain
Our Power-Trans bucket elevator chains are engineered to endure the demanding conditions of the cement industry. Designed to handle shock loadings effectively, these chains ensure continuous operation and minimal downtime. Key features include:
- Through-Hardened Sideplates: Our sideplates are through-hardened, providing exceptional strength and resistance to wear.
- Advanced Pin Hardening: Pins are both through-hardened and induction hardened, enhancing their durability and performance.
- Full Round Design: Both knuckles (bushings) and pins are crafted with a full round design for superior strength and longevity.
we also produce:
- Apron Conveyors
- Hard Face Drag Chains
- Super Capacity Elevator Chains
Each product is designed to meet the rigorous demands of the cement industry, ensuring reliability and efficiency in your operations.

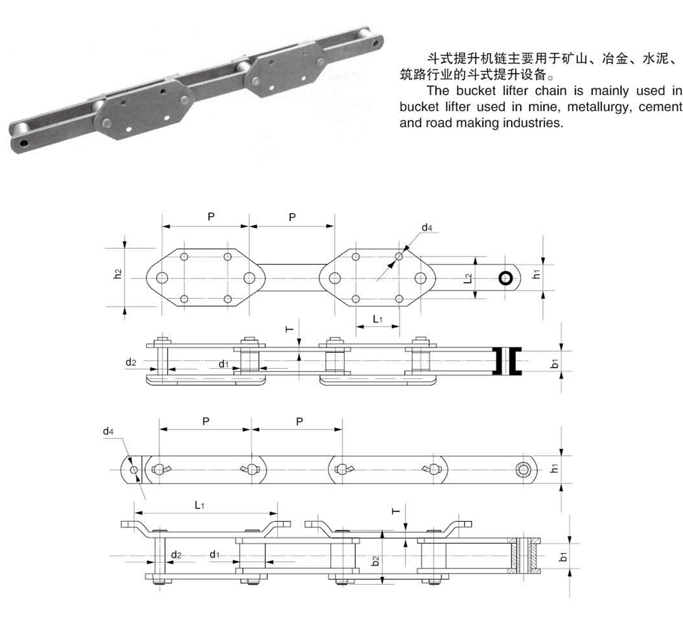

Diameter Data
Chain | Pitch | Diameter | Diameter | Length of | Inner Width | Thickness of | Height of | Height of | Tensile |
No. | of Roller | of Pin | Pin | of Inner Link | Sidebar | Sidebar | Attached Sidebar | Strength | |
P | di(max) | d2 | b2 | bi(min) | T | hi | h2 | Q(min) | |
mm | mm | mm | mm | mm | mm | mm | mm | KN | |
NP150 | 150 | 31.8 | 14.17 | 69 | 30 | 6.35 | 38.1 | 105 | 200 |
NP228.6 | 228.6 | 62 | 24.2 | 136 | 64 | 13 | 70 | 70 | 440 |
Dimensions of Attachment
Chain No. | d4 | L1 | L2 |
NP150 | 14 | 75 | 75 |
NP228.6 | 17 | 355.6 | – |
