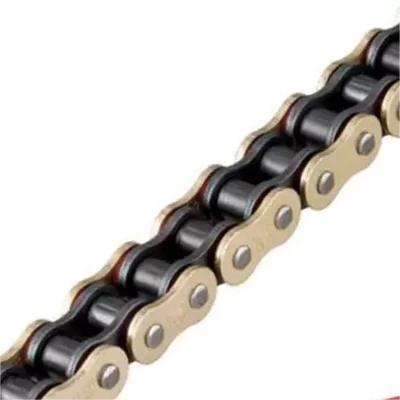

O-Ring Chain 428H 520H 525H 530H
We are a professional supplier of motorcycle parts. We can wholesale or customize various types of motorcycle chains and can customize mass production according to your needs. If you have any needs, please contact us in time. We will ensure the most favorable price and the highest quality.
O-Ring Chain Features:
O-Ring Chain 428H
- Quality engineered for strength and durability
- Top quality of the line roller chains. This chain offers allowable working loads that can provide extra load carrying capability and delivery.
- All parts are heat treatment (quenching and tempering) and controlled in a reasonable tolerance range.
- Solid rollers and bushings provide excellent strength and durability under all riding conditions.
- The O-Ring lubrication system keeps the chain properly lubricated and prevents premature elongation by sealing lubricant in and contaminants out of the pin/bushing joint.
- O-Ring chain is mainly suitable for adverse environments, such as water, mud, or dust. So it’s more demanding for its performance, and the service life is about 3~5 times than standard chains.
- 1. Superior quality alloy steel for pins;
2. Quad-riveted pins (pitch≥15.875mm);
3. Superior quality alloy steel for Solid bushes;
4. Superior quality alloy steel for roller.
Fitment: Racing Bike/Street Bike/Off Road/Dirt Bikes
|

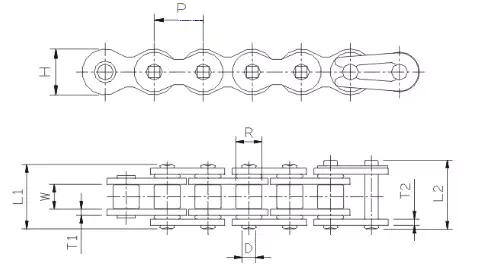

CHAIN NO. |
Pitch |
WIDTH |
Roller |
Plate |
Pin |
Average
Ultimate
Strength
kgf
|
Approx Weight |
|||||
|
P |
W |
Dia |
Height |
Thickness |
Dia |
Lengths |
||||||
|
inch |
mm |
mm |
R |
H | T1 | T2 | D | L1 | L2 | |||
| 428H O-RING | 1/2″ | 12.70 | 7.94 | 8.50 | 11.20 | 2.00 | 2.00 | 4.45 | 21.6 | 23.0 | 2400 | 0.85 |
| 520H O-RING | 5/8″ | 15.875 | 6.35 | 10.16 | 13.00 | 2.40 | 2.40 | 5.24 | 22.0 | 23.7 | 3300 | 1.00 |
| 525H O-RING | 5/8″ | 15.875 | 7.94 | 10.16 | 13.00 | 2.40 | 2.40 | 5.24 | 23.8 | 25.5 | 3300 | 1.05 |
| 530H O-RING | 5/8″ | 15.875 | 9.53 | 10.16 | 13.00 | 2.40 | 2.40 | 5.24 | 25.4 | 27.0 | 3300 | 1.12 |
Note: we are a professional supplier of motorcycle parts. We can wholesale or customize various types of motorcycle chains and can customize mass production according to your needs. If you have any needs, please contact us in time. We will ensure the most favorable price and the highest quality.
