O Ring motorcycle chain
Features of “O” ring roller chain:
- The service life of chains is greatly dependent on the wearing between the pin-shaft and the sleeve.
- The “O” ring will greatly reduce the wearing and thus prolong the service life by 5 times.
- It especially suitable for the adverse environments such as the one bearing water, mud or dust.
- It is most suitable for high-speed running.

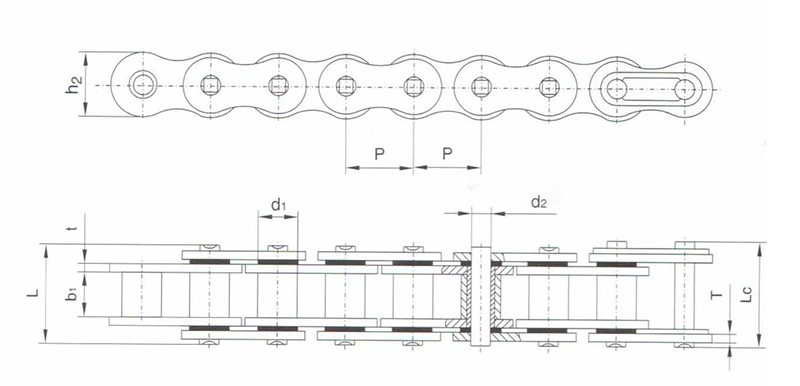

Dimensional parameters
DIN ISO 链号 | 节距 | 滚子直径 | 内节内宽 | 销轴直径 | 链板高度 | 极限拉伸载荷 |
Pitch | Roller
diameter |
Width between inner plates | Pin
diameter |
Inner
plate |
Ultimate
tensile |
|
DIN ISO | P | d1 | b1 | d2 | depth
h2 |
strength
Q |
Chain | max | min | max | max | min | |
No. | mm | mm | mm | mm | mm | KN |
420F | 12.7 | 7.94 | 7.95 | 3.96 | 12.0 | 1700 |
428F | 12.7 | 7.94 | 7.95 | 3.96 | 12.0 | 2010 |
520F | 15.875 | 10.16 | 9.53 | 5.08 | 15.0 | 2800 |
520HF | 15.875 | 10.16 | 9.53 | 5.08 | 15.0 | 3100 |
530F | 15.875 | 10.16 | 9.53 | 5.08 | 15.0 | 2800 |
630F | 19.05 | 11.91 | 12.70 | 5.95 | 17.8 | 4000 |
DIN ISO 链号 | 适用车型 | ||
DIN ISO Chain No. | HONDA | SUZUKI YAMAHA | KAWASAK |
420F | 100CC以下车型 | ||
428F | 200CC以下车型 | ||
520F | MTX200,CB250N,CB250RS
CM250,CM250T,CT250, XL250R,XL400R,REBEL,GB250 |
GSX250E,GN250,TF185 SRX250.DT200 DR250.NZ250S XT250 | GPZ250R,
CS250.DLR250 |
530F | CB400N.CM400T
FT500 |
GSX400,E,FD,FW,FS XT250 GS500.GS500M.GS500L RT250AZ-RD350AZ.SR400.SR50C GT500.T500 XJ400.XJ500AG | Z400GP,GPZ400 l Z500B3.Z400FX 400RS.400SS |
630F | CN750,FZ,F2,F3
CB750K7.KZ |
GS750,GSX750,GSX750L XV750AJE | 750RS,Z750E2,H2,Li
Z750A,D,Z750GT |
