Omni RC-105 Rotary Cutters Gearboxes – Replacement of Omni Code RC-105

The RC145 rotary cutter gearbox is a mechanical device that is commonly used in agricultural and landscaping applications for cutting and shredding vegetation. It is designed to convert the rotational motion from a tractor’s PTO (Power Take-Off) shaft into the linear motion needed to drive the cutting blades of a rotary cutter. The RC145 rotary cutter gearbox is a versatile and reliable tool that can be used in a range of applications, from mowing fields and pastures to clearing overgrown areas and trimming hedges. When selecting an RC145 rotary cutter gearbox, it is important to choose a model that is rated for the appropriate horsepower and torque requirements of the rotary cutter, as well as the operating conditions and cutting needs of the specific application.

Description

Omni RC-105 Rotary Cutters Gearboxes

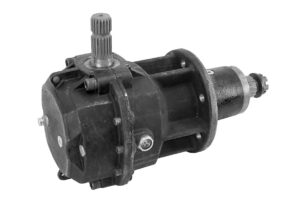

Rotary Cutter Gearboxes – Replacement of Omni Code RC-145 Gearbox

The RC145 rotary cutter gearbox(Omni RC-105 Rotary Cutters Gearboxes) is a mechanical device that is commonly used in agricultural and landscaping applications for cutting and shredding vegetation. It is designed to convert the rotational motion from a tractor’s PTO (Power Take-Off) shaft into the linear motion needed to drive the cutting blades of a rotary cutter. The RC145 rotary cutter gearbox comes in a variety of sizes and specifications. However, most RC145 rotary cutter gearboxes have similar features, such as:

High-Strength Housing: The RC145 rotary cutter gearbox is typically making of heavy-duty cast iron or steel to withstand the high torque and rotational forces generated by the rotary cutter.
Multiple Gear Ratios: The RC145 rotary cutter gearbox contains multiple gear ratios to allow for efficient cutting and shredding of different types of vegetation.
Sealed Bearings: The RC145 rotary cutter gearbox contains sealed bearings to protect the internal components from dirt and debris and to help extend the life of the gearbox.
Input and Output Shafts: The RC145 rotary cutter gearbox has an input shaft that connects to the tractor’s PTO shaft and an output shaft that connects to the rotary cutter.

The RC145 rotary cutter gearbox is a versatile and reliable tool that can works in a range of applications, from mowing fields and pastures to clearing overgrown areas and trimming hedges. When selecting an RC145 rotary cutter gearbox, it is important to choose a model that is rated for the appropriate horsepower and torque requirements of the rotary cutter, as well as the operating conditions and cutting needs of the specific application.

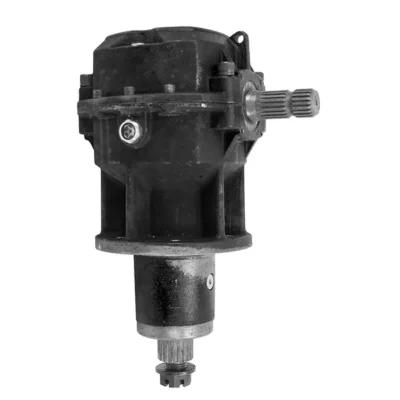

Specifications of RC145 Rotary Cutter Gearbox

Model:	T-RC-145 Rotary Cutter Gearbox
Rotation:	CW input gives CW output
Gear Ratio:	1:1.833
Input RPM:	540/1000 rmp
Output RPM:	989/1833 rmp
Input HP:	61-171 hp
Max Torque:	7117-19950 in.lbs.
Input Shaft:	1-3/4″ dia. x 3-7/8″ long 20T spline
Output Shaft:	2-1/4″ dia. 18 tooth tapered spline w/threaded end. 3-1/4″ total length
Mount:	6 holes on 8″ dia. B.C.
Pilot:	5-5/8″ dia.
Centerline Distance:	8.9″ (input shaft to the mounting surface)
Size:	14-1/2″ x 11″ x 11″
Actual Weight:	120 lbs.

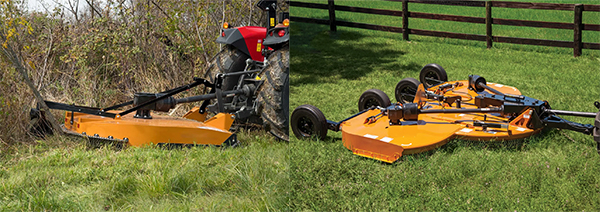

Advantages of Using RC145 Rotary Cutter Gearboxes(Omni RC 105)

There are several advantages to using RC145 rotary cutter gearboxes in agricultural and landscaping applications:

(1) High Durability: The RC145 rotary cutter gearbox is typically making of heavy-duty cast iron or steel. Making it durable and able to withstand the high torque and rotational forces generated by the rotary cutter. This means that the RC145 rotary cutter gearbox can withstand the harsh conditions of agricultural and landscaping applications and provide reliable performance over an extended period.

(2) High Efficiency: The RC145 rotary cutter gearbox contains multiple gear ratios. Allow for efficient cutting and shredding of various types of vegetation. By adjusting the gear ratios to match the specific cutting requirements of the application. The RC145 rotary cutter gearbox can provide optimal performance and efficiency.

(3) Smooth Operation: The RC145 rotary cutter gearbox contains sealed bearings that protect the internal components from dirt and debris. Ensuring that the gearbox operates smoothly and quietly. This provides a more comfortable and efficient cutting experience for the operator. As well as reduces maintenance requirements.

(4) Reliable Power Transfer: The RC145 rotary cutter gearbox features input and output shafts. It provide a strong and reliable connection between the tractor and the rotary cutter. This allows for efficient transfer of power, ensuring that the rotary cutter operates at optimal performance.

(5) Versatility: The RC145 rotary cutter gearbox is a versatile tool that is working in a range of applications. From mowing fields and pastures to clearing overgrown areas and trimming hedges. This versatility makes it a popular choice for many agricultural and landscaping operations.

Overall, the RC145 rotary cutter gearbox provides several advantages to agricultural and landscaping operations. Including durability, efficiency, smooth operation, reliable power transfer, and versatility. These benefits make it a popular and reliable tool in the industry.
