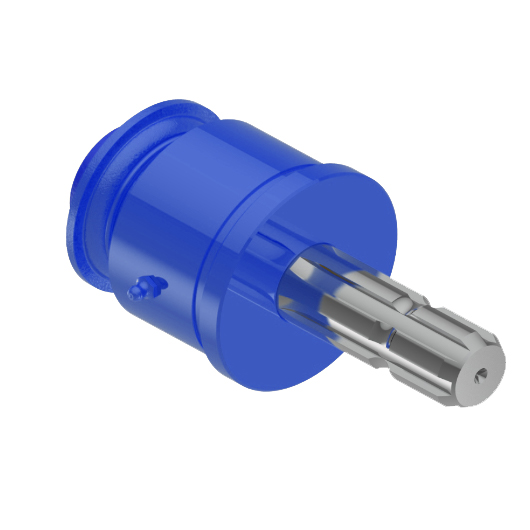

Overrunning Clutch
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Connection 1 | SPRING-LOK | |
Length | 7.72 inches | 196 mm |
Outside Diameter | 3.81 inches | 97 mm |
Shipping Dimensions | 7.72″ L × 3.819″ H × 3.819″ W | 20cm L × 10cm H × 10cm W |
Shipping Volume | 112.59 in3 | 1845 cm3 |
Shipping Weight | 8.39 pounds | 4 kilograms |
Weight | 8.39 pounds | 4 kilograms |
Overrunning Clutch PERFORMANCE BENEFITS
- Allows inertia from implement to dissipate without putting load back through the tractor or system.
- Easy maintenance.
- Smooth operation.
- Offered in various drive shaft sizes and hub configurations.
- Easier connection by enabling the shaft to be aligned with the tractor PTO spline.
