PAD series sharp top chain
PAD series sharp top chain

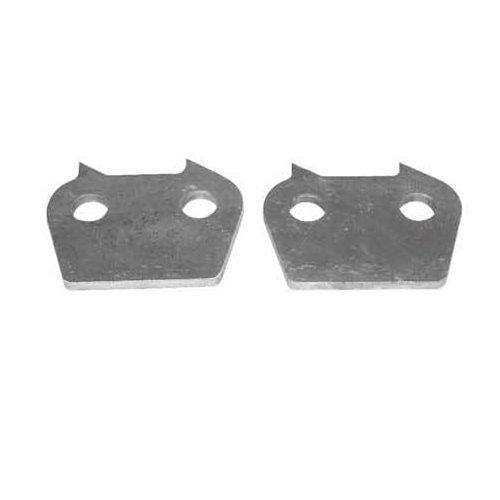

Our 100-2 sharp top roller chain with 1-Point every 4th pitch (alternating) distinguishes itself through several premium features that enhance its performance and longevity:
- High-Quality Materials: Constructed with heat-treated and shot-peened components, this chain offers superior fatigue strength and durability, ensuring a longer working life even under rigorous conditions.
- Precision Engineering: The teeth on the chain are designed with high precision to ensure optimal grip. This design minimizes penetration, which helps reduce bruising or waste and enhances overall efficiency.
- Ground Bottom Surfaces: The chain features ground bottom surfaces that significantly decrease friction. This reduces wear and tear, leading to increased productivity and smoother operation.

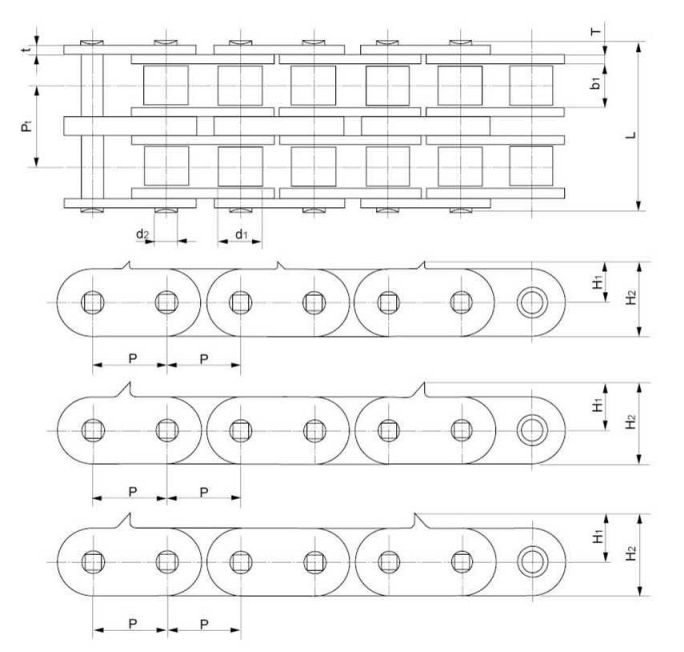

Diameter Data
| chain
NO. |
Pitch
P mm |
Inner Width of Inner Link b1(mim) mm | Outer diameter of Roller d1(max) mm | Pin | Sidebar | Row
d1stance Pt mm |
Tensile Strength Q(min) KN | Weight per Meter
q kg/m |
|||
| d2
mm |
L
mm |
H1
mm |
H2
mm |
T/t
Mm |
|||||||
| 100-2-2PAD | 31.75 | 19.05 | 19.05 | 9.52 | 75.4 | 17.91 | 32.66 | 4 | 35.76 | 173.5 | 9.03 |
| 100-2-SD | 31.75 | 19.05 | 19.05 | 9.52 | 75.4 | 20.68 | 35.43 | 4 | 35.76 | 173.5 | 9.02 |
| 100-2-4PAD | 31.75 | 19.05 | 19.05 | 9.52 | 75.4 | 20.68 | 35.43 | 4 | 35.76 | 173.5 | 9.02 |
| 100-2-4AD-N1 | 31.75 | 19.05 | 19.05 | 9.52 | 75.4 | 17.91 | 32.66 | 4 | 35.76 | 173.5 | 9.02 |
| 80-2-8PAD | 25.4 | 15.93 | 15.88 | 7.92 | 61.5 | 18.36 | 32.08 | 3.2 | 29.29 | 138 | 6.7 |
| 80H-2-4PSD | 25.4 | 15.93 | 15.88 | 7.92 | 61.5 | 18.36 | 32.08 | 4 | 31.76 | 138 | 8.2 |
