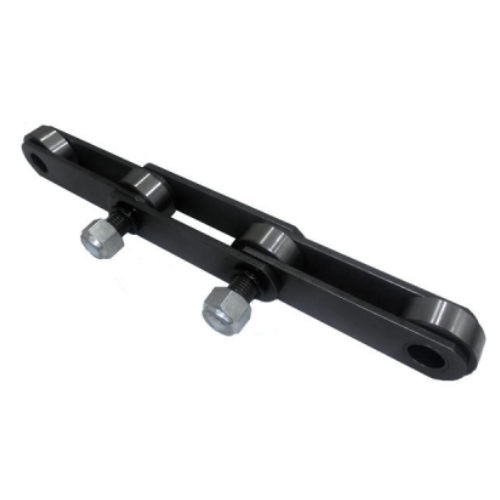

Palm chains
Palm chains

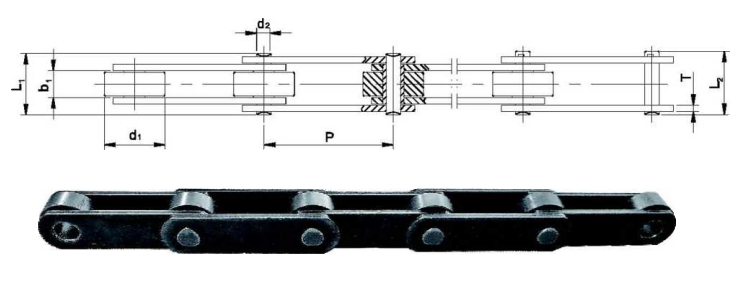

| Chain
No. |
Pitch | Roller
diameter |
Width between inner plates | Pin
diameter |
Pin length | plate
depth |
Plate
thickness |
Average
tensile strength |
Weight
per meter |
|
| P | d1
max |
b1
min |
d2
max |
L1 max | L2
max |
h2
max |
T | 〇D | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| RF90R-S | 101.60 | 47.60 | 21.40 | 11.32 | 47.50 | 51.50 | 31.80 | 4.80 | 80.36 | 6.10 |
| RF94R-S | 101.60 | 50.80 | 30.00 | 14.50 | 63.60 | 67.00 | 38.10 | 6.30 | 112.70 | 9.90 |
| SC150040 | 101.60 | 47.60 | 19.10 | 19.05 | 48.00 | 53.30 | 40.00 | 5.10 | 66.64 | 7.13 |
