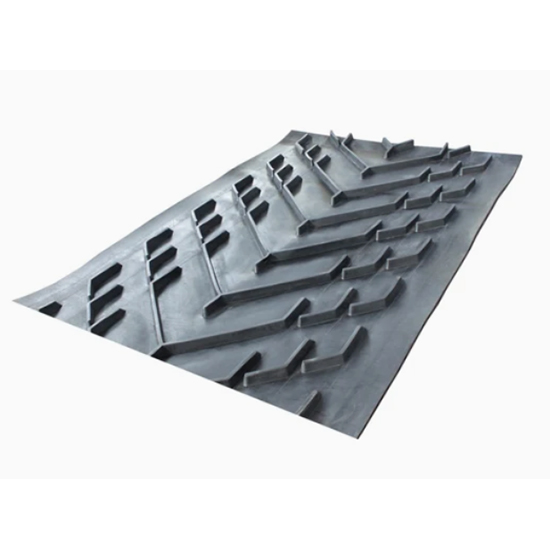

Patterned conveyor belt
Patterned conveyor belt
Patterned conveyor belt Characteristics

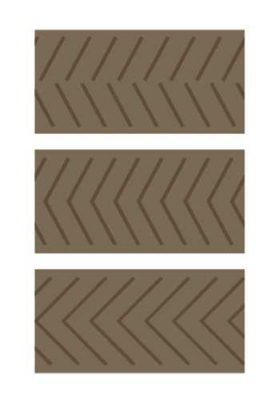

Its surface is processed with chevron ribs higher than the belt body, wherein the ribs can be open or enclosed, and each rib comprises a high type, a medium type and a low type.
Usage
It is suitable for conveying powder, granular or lump materials whose dip angle is smaller than or equal to 40°; or conveying packaged materials.
| Type | Cleat Size (mm) | Belt Width (mm) |
| CV, full width | Cleat Height=5; 10 Cleat Width= full width Cleat Pitch=100 |
300-1200 |
| CV, closed | Cleat Height=15 Cleat Width=300; 450 Cleat Pitch=250; 300 |
400-1200 |
| CV, open | Cleat Height=15 Cleat Width=385; 600; 750 Cleat Pitch=250 |
450-1200 |
| CP, open | Cleat Height=17 Cleat Width=300; 440; 550; 630; 750; 950 Cleat Pitch=330 |
400-1400 |
| CP, open & closed | Cleat Height=25 Cleat Width=450; 550; 750 Cleat Pitch=330 |
500-1200 |
| CP, open | Cleat Height=32 Cleat Width=580; 630; 750 Cleat Pitch=330 |
700-1400 |
| U, closed | Cleat Height=15; 32 Cleat Width=550; 700 Cleat Pitch=350; 400 |
650-1200 |
| Multi-V, full width | Cleat Height=6 Cleat Width= full belt width Cleat Pitch= 76 |
500-2000 |
