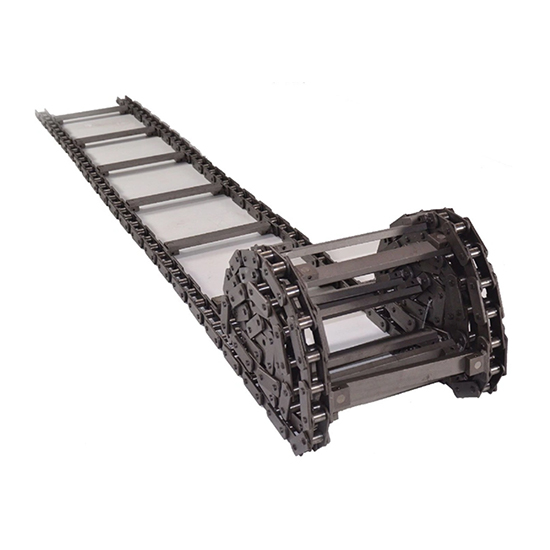

Paver chain P=80 P=78.1
Paver chain Pitch P 80 mm 78.1 mm
Pitch | Inside Width | Bush dia. | Plate depth | Pin dimension | Scraper dimensions | Ultimate tensile strength | Weight per meter | ||
P | b1 | d1 | h2 | L | d2 | F | Q | ||
mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m |
80 | 35 | 36 | 45 | 74.38 | 17.46 | 575 | 449 | 300 | 33 |

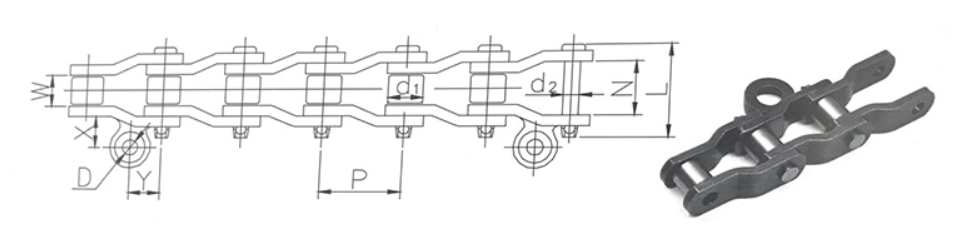

Pitch | Pin dimension | Bush dia. | Assemble dimension | Attachment dimension | Ultimate tensile strength | Weight per meter | ||||
P | d2 | L | d1 | N | x | Y | D | Q | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m |
78.1 | 15.87 | 86.74 | 31.75 | 31.75 | 51.59 | 33.3 | 34.92 | 25.78 | 245 | 24.38 |
