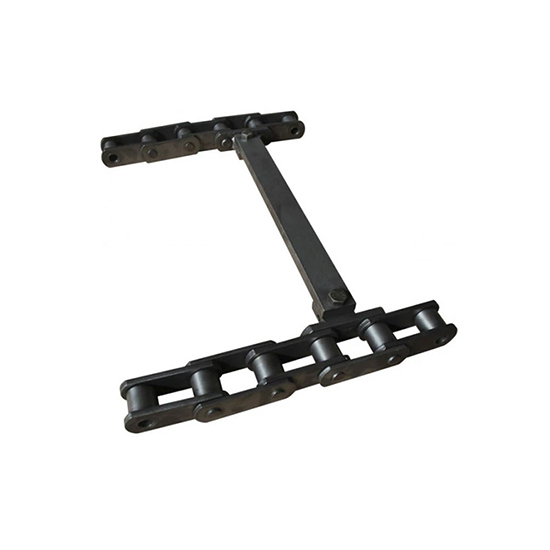

Paver chain SS40 SS40SL

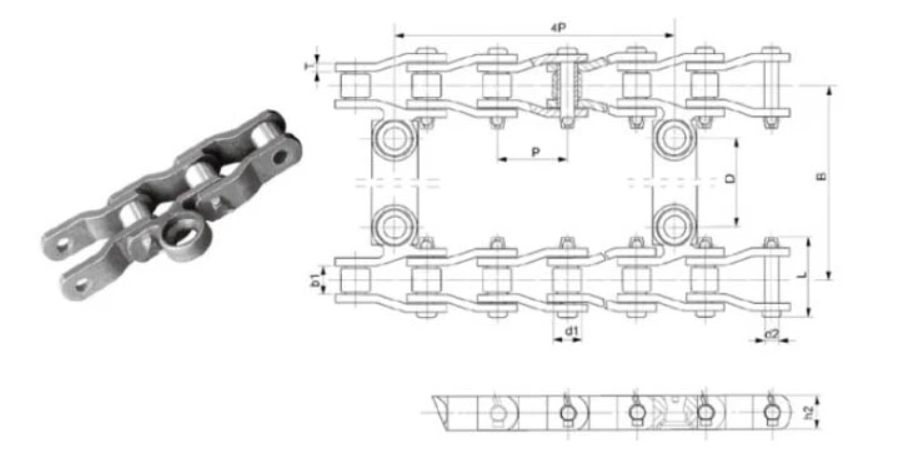

Diameter Data

Chain No.

Pitch P
(mm)

Diameter of roller d1(max)(mm)

Inner width of inner link b1(min) (mm)

Diameter of pin d2 (max)(mm)

Length of pin L(max)(mm)

Height of sidebar h2(max) (mm)

Thickness of sidebar T(mm)

Tensile strength Q(min) (KN)

SS40

78.1

31.75

31.4

15.88

89.2

38.1

15.88

265

SS40SL

78.1

31.75

15.88

89.65

15.88

213

Assembly dimensions of beam and chain

Code

SS40SL-141-00

424.66

542.93

SS40SL-142-00

SS40SL-143-00

SS40SL-144-00

381.79

500.06

SS40SL-145-00

570.71

588.96

SS40SL-146-00

470.69

588.96

SS40SL-147-00

SS40SL-148-00

424.66

542.93

SS40SL-149-00

SS40SL-150-00
