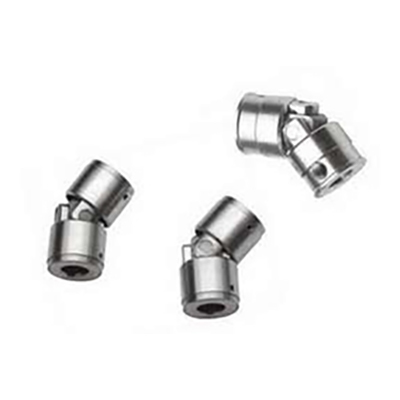

PB R series universal joints
Power-trans is a specialist provider of universal joints, single universal joints, double universal joints, china Universal joints, coupling Universal joints, U-joint China, and Cardan joint. It provides a range of U joints under PB, PR, NB, and CN series. Power-trans can custom design and manufacture U joints and their connectors based on customer specifications.

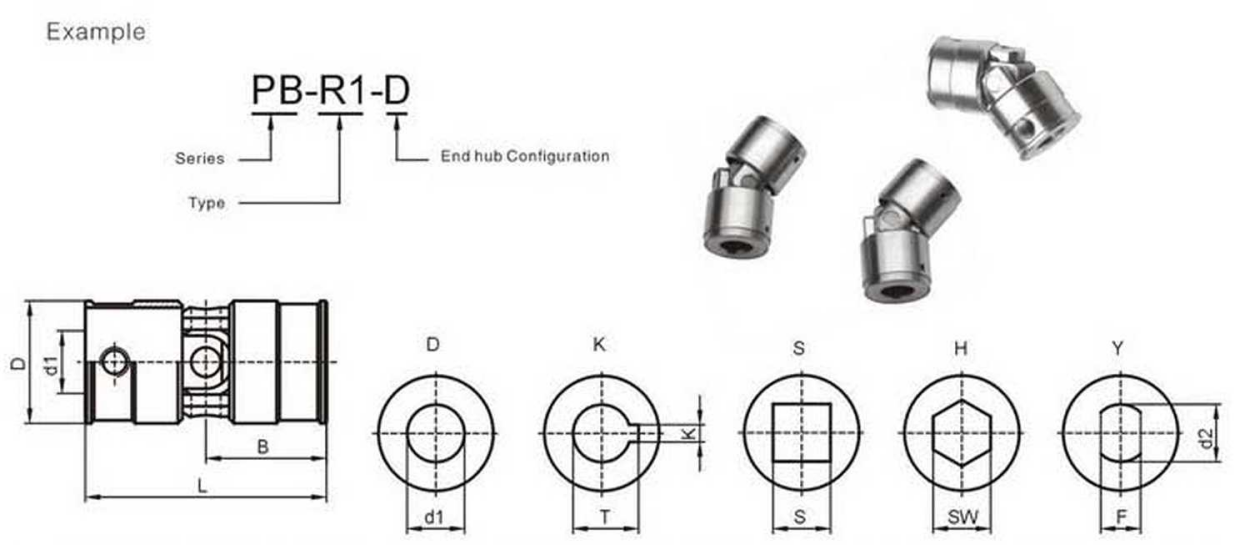

Part No.\Size | d1
(H7) |
D | L | B | K
_ |
T | S
(H8) |
SW
(H8) |
d2 | F |
PB-R1 | 16 | 32 | 68 | 34 | 5 | 18.3 | 16 | 16 | 16 | 12 |
PB-R3 | 20 | 41.6 | 82 | 41 | 6 | 22.8 | 20 | 20 | 19 | 14 |
PB-R5 | 25 | 50 | 108 | 54 | 8 | 28.3 | 25 | 25 | 25 | 18 |
PB-R7 | 30 | 58 | 122 | 61 | 8 | 33.3 | 30 | 30 | 30 | 22 |
SIZE | A | B | C |
M01 | 28 | 34 | 15 |
M02 | 32 | 40 | 16. 5 |
M03 | 40 | 45 | 20. 5 |
M04 | 48 | 50 | 24. 5 |
M05 | 52 | 56 | 27. 5 |
M1 | 56 | 65 | 30. 5 |
M2 | 66 | 72 | 35. 5 |
M3 | 75 | 82 | 40 |
M4 | 84 | 95 | 45 |
M5 | 92 | 108 | 50 |
M6 | 100 | 122 | 56 |
About us
We manufacturer all type of universal couplings , universal joints , u joints propeller shaft , ball joints , rod end bearings , heim joints , rod eyes , rod couplers , slef aligning couplers , hard chrome plated bar , induction harden hard chrome plated bar , u joints , single joint universal joints , double joint universal joints , cardan shafts , propeller shaft , linear bearings , linear shaft , self aligning , graphite filled bush , sintered bush , brass bush , pb bush , steel balls , stainless steel bearings , spherical palin bearings , thk japan bearings , iko japan bearings , ls bearings , spherical palin bearings , hiwin linear bearings , khs linear bearings , won linear bearings , schneeberger bearings , linear bushing , cross linear guide ways , penumatic and hydarulic mountings , ball joints , end joints , cross joints , double cross joints , tie joints , rod end bearings , asahi bearings , introduction : oki universal joints provide a simple & economic method of connecting two shafts whose axes are inclined at an angle.
