PB single universal joints
PB single universal joints
Power-trans is a specialist provider of universal joints, single universal joints, double universal joints, china Universal joints, coupling Universal joints, U-joint China, and Cardan joint. It provides a range of U joints under PB, PR, NB, and CN series. Power-trans can custom design and manufacture U joints and their connectors based on customer specifications.

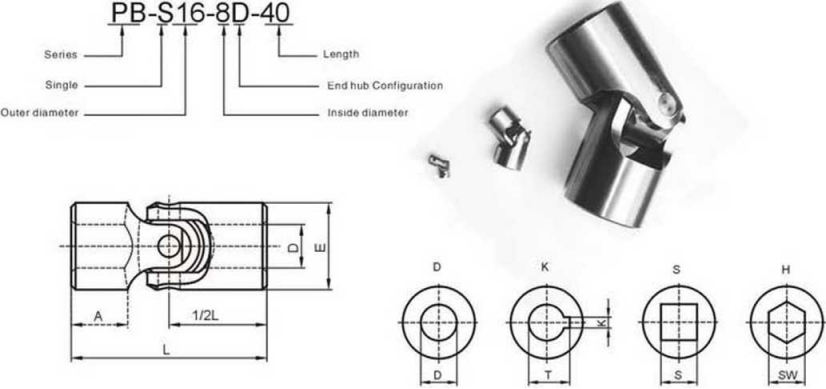

| D
(H7) |
E | L | A | 1/2L | K
(JS9) |
T | S
(H8) |
SW
(H8) |
|
| PB-S13 | 6 | 13 | 40 | 13 | 20 | ||||
| PB-S16 | 8 | 16 | 40 | 11 | 20 | 2 | 9 | 8 | 8 |
| PB-S20 | 10 | 20 | 45 | 11.5 | 22.5 | 3 | 11.4 | 10 | 10 |
| PB-S22 | 12 | 22 | 50 | 14 | 25 | 4 | 13.8 | 12 | 12 |
| PB-S25 | 14 | 25 | 56 | 15 | 28 | 5 | 16.3 | 14 | 14 |
| PB-S29 | 16 | 29 | 65 | 18 | 32.5 | 5 | 18.3 | 16 | 16 |
| PB-S32 | 18 | 32 | 72 | 19 | 36 | 6 | 20.8 | 18 | 18 |
| PB-S35 | 20 | 35 | 78 | 21.5 | 39 | 6 | 22.8 | 20 | 20 |
| PB-S37 | 20 | 37 | 82 | 21 | 41 | 6 | 22.8 | 20 | 20 |
| PB-S40 | 22 | 40 | 95 | 255 | 47.5 | 6 | 24.8 | 22 | 22 |
| PB-S45 | 25 | 45 | 108 | 31 | 54 | 8 | 28.3 | 25 | 25 |
| PB-S50 | 30 | 50 | 122 | 35 | 61 | 8 | 33.3 | 30 | 30 |
| PB-S60 | 35 | 60 | 160 | 49 | 80 | 10 | 38.3 | 35 | 35 |
| PB-S70 | 40 | 70 | 140 | 33.5 | 70 | 12 | 43.3 | ||
| PB-S80 | 45 | 80 | 160 | 38 | 80 | 14 | 48.8 | ||
| PB-S95 | 50 | 95 | 190 | 45 | 95 | 14 | 53.8 |
