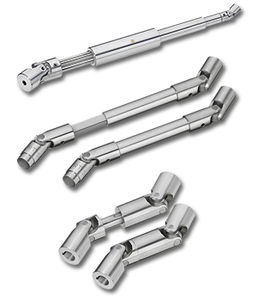

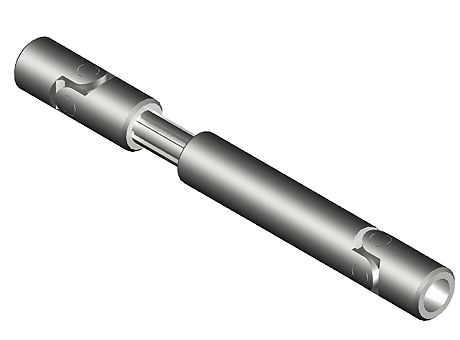

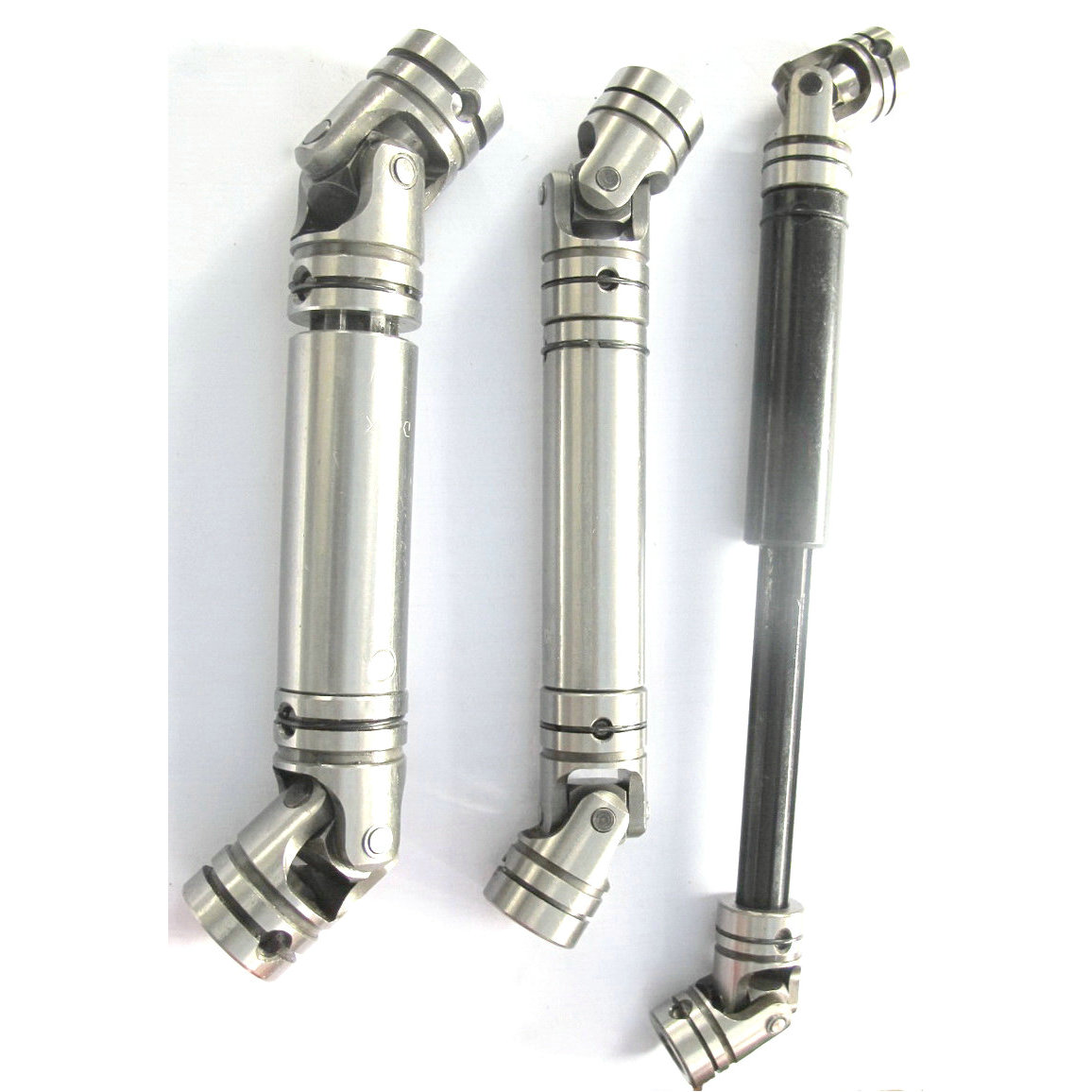

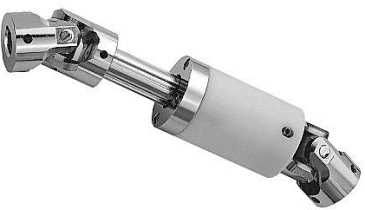

PB telescopic universal joints
Power-trans is a specialist provider of universal joints, single universal joints, double universal joints, china Universal joints, coupling Universal joints, U-joint China, and Cardan joint. It provides a range of U joints under PB, PR, NB, and CN series. Power-trans can custom design and manufacture U joints and their connectors based on customer specifications.

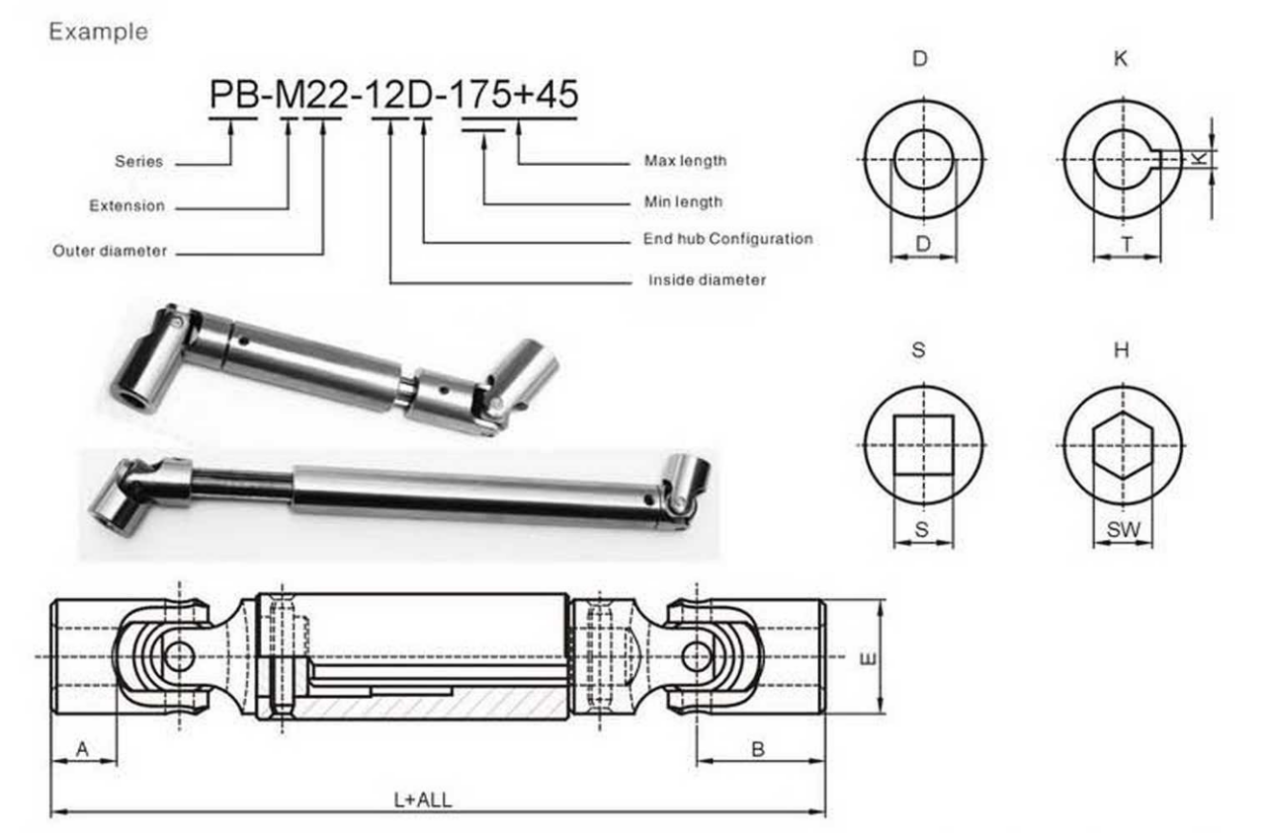

Dimensional data
Part NO.\SIZE | D(H7) | E | L+ALL | L+ALL | L+ALL | A | B | SPLINE | K
(JS9) |
T | S
(H8) |
SW
(H8) |
PB-M20 | 10 | 20 | 160+45 | 180+60 | 195+75 | 11.5 | 22.5 | 6-14X11 | 3 | 11.4 | 10 | 10 |
PB-M22 | 12 | 22 | 175.45 | 190+60 | 205+75 | 14 | 25 | 6-14X11 | 4 | 13.8 | 12 | 12 |
PB-M25 | 14 | 25 | 220+75 | 250+100 | 300+150 | 15 | 28 | 6-16X13 | 5 | 16.3 | 14 | 14 |
PB-M29 | 16 | 29 | 240+75 | 265+100 | 330+150 | 18 | 32.5 | 6-20X16 | 5 | 18.3 | 16 | 16 |
PB-M32 | 18 | 32 | 255+75 | 280+100 | 350+150 | 19 | 36 | 6-20X16 | 6 | 20.8 | 18 | 18 |
PB-M37 | 20 | 37 | 285+80 | 310+100 | 370+150 | 21 | 41 | 6-22X18 | 6 | 228 | 20 | 20 |
PB-M40 | 22 | 40 | 320+80 | 350+100 | 370+150 | 25.5 | 47.5 | 6-25X21 | 6 | 24.8 | 22 | 22 |
PB-M45 | 25 | 45 | 345+80 | 370+100 | 410+150 | 31 | 54 | 6-25X21 | 8 | 28.3 | 25 | 25 |
PB-M50 | 30 | 50 | 370+80 | 400+100 | 450+150 | 35 | 61 | 6-28X23 | 8 | 33.3 | 30 | 30 |
PB-M60 | 35 | 60 | 470.90 | 49 | 80 | 6-32X26 | 10 | 38.3 | 35 | 35 | ||
PB-M70 | 40 | 70 | 470.90 | 33.5 | 70 | 8-38X32 | 12 | 43.3 | / | |||
PB-M80 | 45 | 80 | 470+90 | 38 | 80 | 8-48X42 | 14 | 48.8 | ||||
PB-M95 | 50 | 95 | 530+90 | 45 | 95 | 8-48X42 | 14 | 53.8 |
