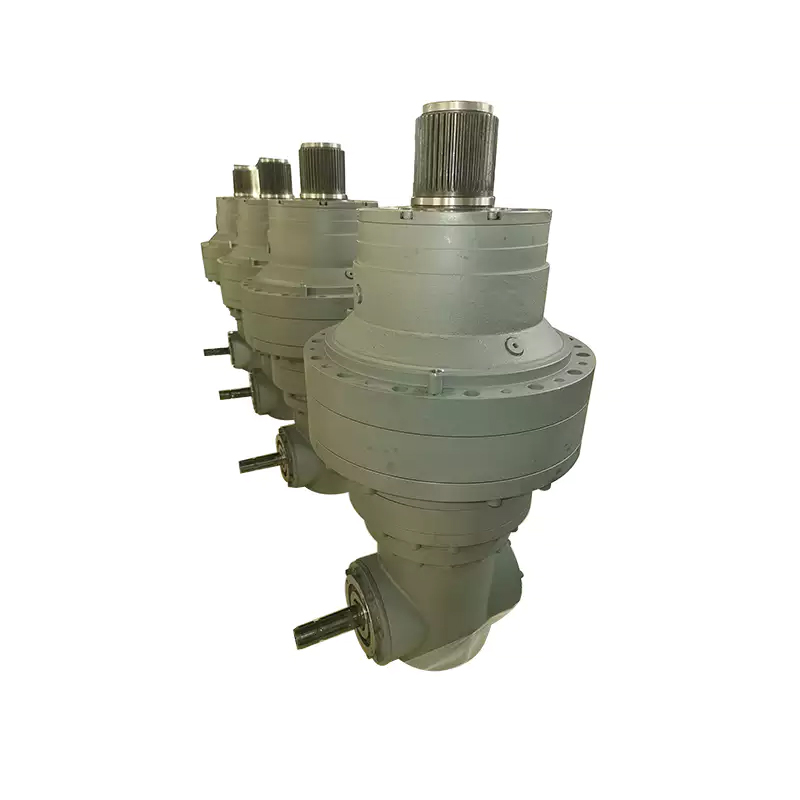

Feed Mixer Planetary Gearbox
Feed mixer planetary gearbox is a new gearbox assembly independently. We develope it. The machine has the characteristics of instantaneous torque transmission. With low noise, high efficiency, stable performance, and long service life. The gearboxes’ application: various power transmission machine agitators and has obtained national patents.

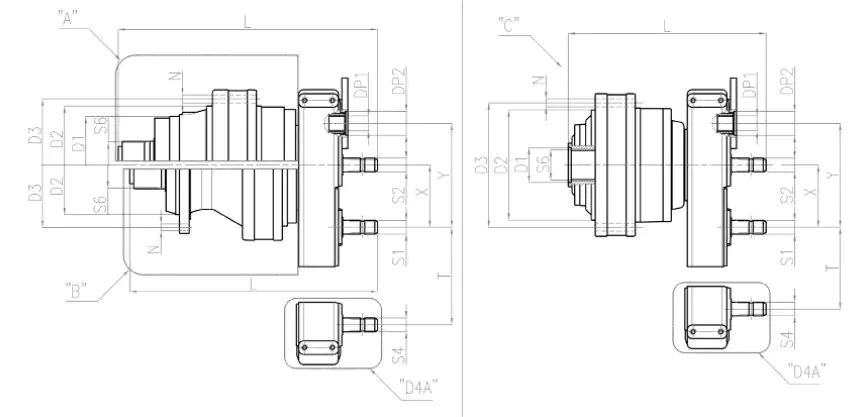

PG Modular Auger Drives for Trailed Horizontal Feed Mixers
Model | PG-702 | PG-1002 | PG-1602 | PG-1802 | PG-2502 | PG-3002 | PG-3503 | |||
Ratio i | 18.2 | 18.3 | 13.4-33.6 | 15.7-29.9 | 14.6-20-36.2 | 45.3 | 53.7 | |||
Output type | B | B | B | C | B | C | A | C | C | C |
D1 | 88HB | 88HB | 245F7 | 102H7 | 102H7 | 122HF | ||||
D2 | 200F7 | 230F7 | 230F7 | 278F7 | 230F | 278F7 | 340F7 | 340F7 | 340F7 | 340F7 |
D3 | 250 | 295 | 295 | 314 | 295 | 314 | 370 | 370 | 370 | 370 |
N | ∅15×N°12 | ∅17×N°10 | ∅17×N°10 | ∅15×N°18 | ∅17×N°10 | ∅15×N°18 | ∅17×N°15 | ∅17×N°15 | ∅17×N°15 | ∅17×N°15 |
L | 646.5 | 627.5 | 693 | 490.5 | 714 | 499.5 | 798.5 | 595.5 | 601 | 680.5 |
S6 | 70*64 DIN5482 | 80*74 DIN5482 | 100*94 DIN5482 | 80*74 DIN5482 | 100*94 DIN5482 | 80*74 DIN5482 | 100*94 DIN5482 | 100*94 DIN5482 | 100*94 DIN5482 | 120*22*5 DIN5482 |
S1 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 |
S2 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | |||
DP1 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 | 40*36 DIN5482 |
DP2 | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB | 60.3HB |
X | 157 | 157 | 157 | 157 | 157 | 157 | 157 | 157 | 157 | 157 |
Y | 262 | 262 | 262 | 262 | 262 | 262 | 262 | 262 | 262 | 262 |
S4 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | 1″ 3/8 Z6 | |||||
T | 156.8 | 156.8 | 156.8 | 156.8 | 156.8 |

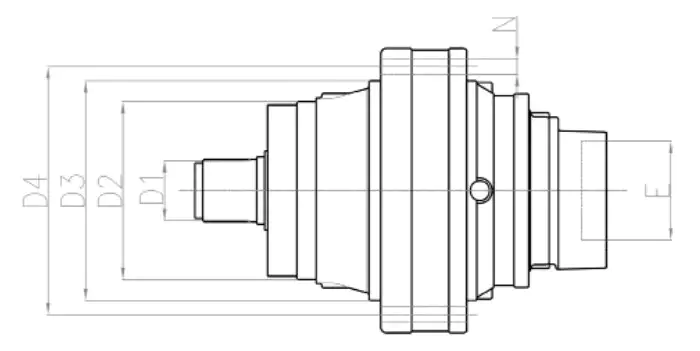

PG Modular Auger Drives for Self-propelled Horizontal Feed Mixers
Model | Ratio i | D1 | D2 | D3 | D4 | N | E |
PG-1602 | 22.14-33.6 | 80*74 DIN5482 | 225 F7 | 278 F7 | 314 | ∅15×N°18 | SAE B/SAE C |
PG-2502 | 20-36.2 | 100*94 DIN5482 | 245 F7 | 340F7 | 370 | ∅17×N°15 | SAE B/SAE C |

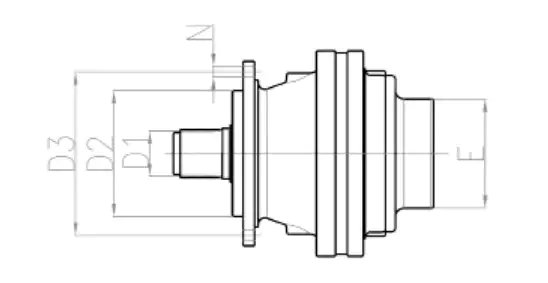

PG Modular Auger Drives for Milling Head on Self-propelled Feed Mixers
Model | Ratio i | D1 | D2 | D3 | N | E |
PG-161 | 3.55-2.49-5.60 | 40*36 DIN5482 | 110 F7 | 165 | ∅10.5×N°8 | SAE A/SAE B/SAE BB/OMTS |
PG-251 | 4.13-5.17-6.00 | 58*53 DIN5482 | 150 F7 | 195 | ∅13×N°10 | SAE A/SAE B/SAE BB/OMTS |
PG-501 | 4.13-5.17-6.00 | 58*53 DIN5482 | 150 F7 | 195 | ∅13×N°10 | SAE A/SAE B/SAE BB/OMTS |
