PG15-P2-F2-K-B-X-1000 High Gear Ratio Clevis End Construction Screw Jack For Bending Roller And Dam Shutter

Category:
Description

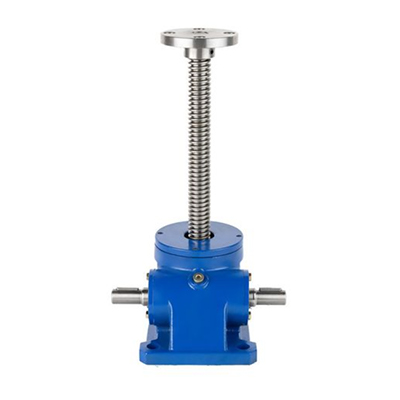

High Gear Ratio Clevis End Construction Screw Jack

High Gear Ratio Clevis End Construction Screw Jack Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works, Energy & Mining
Weight (KG): 15 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 50~2300Nm, 50~2300Nm
Input Speed: 300-1800Rpm, 300-1800Rpm
Output Speed: Customized
Ratio: 5-100
Certificate: ISO9001
Mounting Position: Foot Mounted or Flange mounted
Material: Cast Iron or Stainless Steel
Packaging Details: Wooden box
Port: Shanghai/Ningbo

F2 Type Screw Jack

a* 14 different models with lifting capacities from 5 to 2,000 kN
b* Drive motor speed up to 1,500 rpm
c* Self-locking trapezoidal screw to prevent unintended motion
d* Two different speed options for each model (Normal Speed “X” and Slow Speed “Y”)
How to install Screw Jack?
Installing a screw jack involves a few key steps to ensure proper operation and safety. Here is a general guide on how to install a screw jack:
1.Determine the Placement: Identify the location where you want to install the screw jack. Consider factors such as load requirements, stability of the supporting structure, and accessibility for operation and maintenance.

2.Prepare the Mounting Surface: Ensure that the mounting surface is sturdy and capable of supporting the load. If necessary, reinforce the surface or provide additional support, such as a mounting plate or bracket, to distribute the load evenly.

3.Position the Screw Jack: Place the screw jack in the desired position on the mounting surface. Align it properly according to the intended lifting direction.

4.Mark Mounting Holes: Use a pencil or marker to mark the positions of the mounting holes on the mounting surface. Make sure the marks are aligned with the holes in the screw jack’s base or mounting flange.

5.Drill Pilot Holes: Using an appropriate drill bit, drill pilot holes at the marked positions. The size of the pilot holes should match the diameter of the mounting screws or bolts.

6.Attach the Screw Jack: Align the mounting holes of the screw jack with the pilot holes in the mounting surface. Insert the appropriate screws or bolts through the holes and tighten them securely. Follow any specific instructions provided by the screw jack manufacturer regarding torque specifications or recommended fasteners.

7.Verify Stability: Once the screw jack is attached, ensure that it is stable and securely mounted. Check for any movement or play in the installation. If necessary, make adjustments or reinforce the mounting to achieve stability.

8.Lubrication and Maintenance: Prior to use, apply lubrication to the screw and other moving parts of the screw jack as recommended by the manufacturer. Regularly inspect and maintain the screw jack according to the manufacturer’s guidelines to ensure optimal performance and longevity.

Production process of turbine screw elevator

  1. Design: according to the user’s needs and requirements, design a special turbine screw lift scheme. Including the design of turbine, screw, nut, support structure, control system, etc.
  2. Material preparation: according to the design requirements, prepare corresponding materials, such as turbine, screw rod, nut, platform, etc. And the materials shall comply with relevant national standards and requirements.
  3. Turbine manufacturing: generally, turbine materials are making of high-quality cast iron, steel and other specially processed materials. Which are processing and shaping with CNC processing equipment.
  4. Manufacturing screw rod and nut: the screw rod and nut according to the design requirements, and the surface polishing and heat treatment will carrying out.
  5. Platform processing and manufacturing: according to the design drawings, select the corresponding materials and shapes, and carry out shearing, welding, polishing and other processes.
  6. System assembly: assemble the manufactured turbine, screw rod, nut, platform and other components, and install the control system for testing and quality inspection.
  7. Commissioning and acceptance: The equipment shall be commissioned and accepted by professional personnel to ensure that the equipment meets the design requirements and meets the safety and quality standards.
  8. Delivery and installation: packaging and logistics delivery shall be carried out for the accepted equipment, and installation and commissioning shall be carried out at the customer’s site to ensure the normal operation of the turbine screw lift.

In short, design, material preparation, manufacturing and assembly are all crucial to the production process of the turbine screw lift. Any problem in any link will seriously affect the performance and quality of the turbine screw lift produced.
