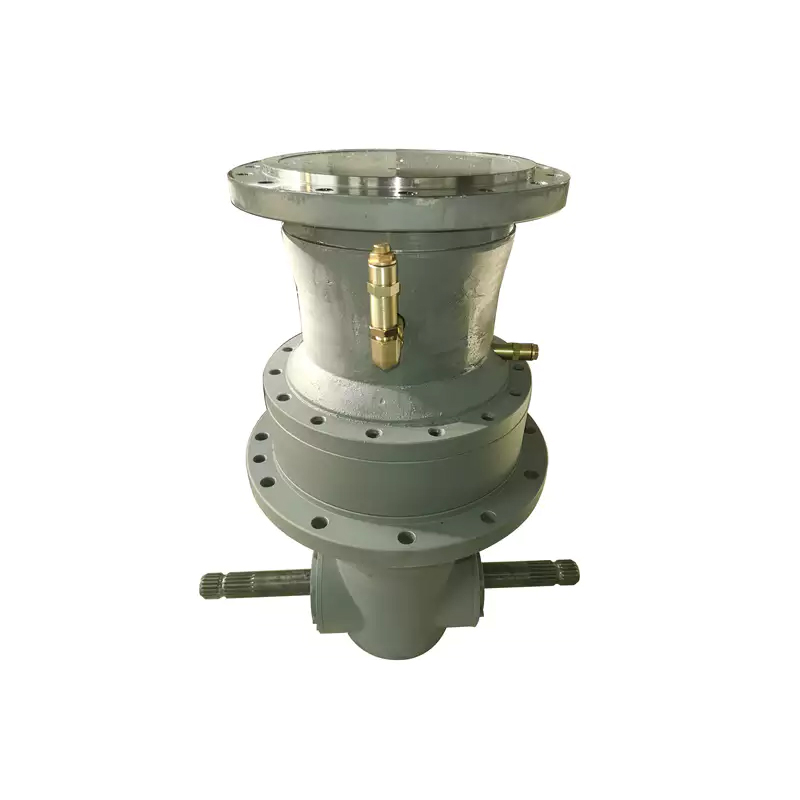

Feed Mixer Planetary Gearbox PGA Series For Auger Drive
The planetary gearboxes produced by Power-trans provide the rotation of feed mixers and biogas plants.
The planetary gear transmission adopts a solid and compact design, which is easy to install in:
- trucks
- self-propelled machine
- fixed machine
- it ensures the operation of feed and biogas applications.

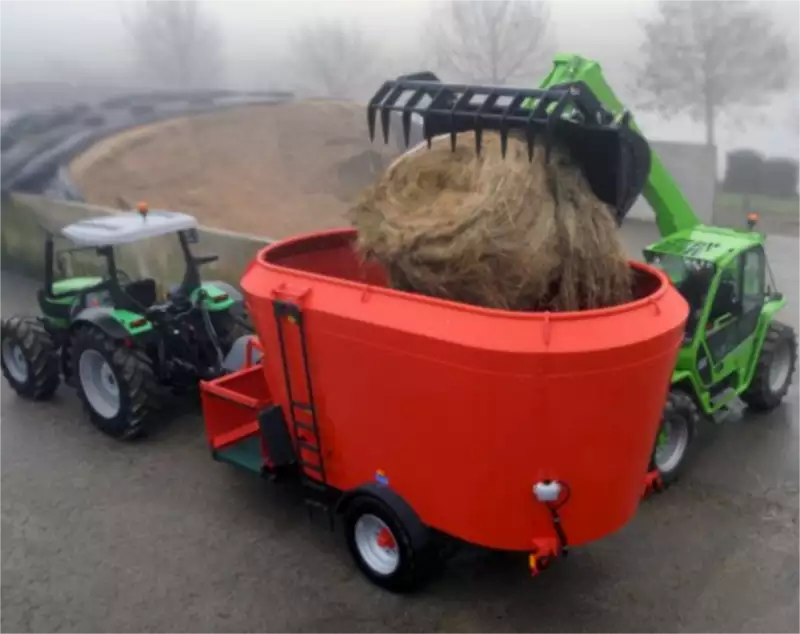

PAG Modular Auger Drives For Trailed Vertical Feed Mixers & Stationary Machine (Biogas)
PGA Series Planetary Gearbox for feeder mixer, to avoid the start-up problems of the mixer trucks and ensure that they always operate at the best auger speed, we have developed the PGA automatic reduction gearbox. During loading and unloading, the PGA automatically adjusts the auger speed according to the weight in the mixer without manual shifting. Instead, it automatically shifts according to the weight pre-programmed in the PGA application to prevent overload of the feeder mixer’s drive line and the tractor’s PTO shaft and save time and fuel. Due to automatic switching at the correct time, the feed mixer does not run at excessive full speed, which can save up to 30% of fuel. More importantly, relatively light tractors are well suited for this job.
| Model | Continuous Torque Nm | Max torque Nm | Input speed rpm | Ratio（Min-Max）i | Input Shaft |
| PGA-502 | 3810 | 7620 | 540 | 12.36-15.51 | 1″3/8 Z6 |
| PGA-1002/3 | 8500 | 17000 | 16.8-30.6 | 1″3/4 Z20 | |
| PGA-1202 | 11600 | 23200 | 11.1-19.4 | 1″3/4 Z20 | |
| PGA-1602/3 | 15700 | 31400 | 13.4-47.5 | 1″3/4 Z20 | |
| PGA-1702/3 | 15700 | 31400 | 13.4-47.5 | 1″3/4 Z20 | |
| PGA-2102/3 | 21000 | 47000 | 12.1-62.1 | 1″3/4 Z20 | |
| PGA-2502 | 23780 | 48000 | 13.6-23.6 | 1″3/4 Z20 | |
| PGA-3003/4 | 30760 | 61520 | 25.7-84.4 | 1″3/4 Z20 | |
| PGA-4203 | 42000 | 142000 | 27.8-91.4 | 1″3/4 Z20 |
Main benefits:
- Fuel saving up to 30%
- The mixing process starts quickly
- Always enjoy the highest mixing speed
- Drive nondisruptive
- Autoshift
- Smaller tractors can be used
- Extend the service life of PTO coupling; Low starting torque
- No vibration in the drive
- No manual shift, high comfort
PAG Modular Auger Drives For Self-propelled Vertical Feed Mixers & Stationary Machine (Biogas)
| Model | Continuous Torque Nm | Max torque Nm | Ratio（Min-Max）i |
| PGA-1603 | 15700 | 31400 | 24.4-116.9 |
| PGA-1703 | 15700 | 31400 | 24.4-116.9 |
| PGA-2103 | 21000 | 47000 | 31.8-126.5 |
| PGA-2503 | 23780 | 48000 | 35.7-142.2 |
| PGA-3004 | 30760 | 61520 | 97.4-612.3 |
| PGA-4204 | 42000 | 142000 | 105.4-662.8 |
The planetary gearboxes produced by Power-trans provide the rotation of feed mixers and biogas plants.
The planetary gear transmission adopts a solid and compact design, which is easy to install in:
- trucks
- self-propelled machine
- fixed machine
- it ensures the operation of feed and biogas applications.
Advantages of the planetary gearbox (PGA Series planetary gearbox)
- modular design for easy installation
- high peak torque capacity
- lubricated upper bearings ensure faster, unobtrusive performance
- wide range of 16.32:1 ratios for versatile performance
- labyrinth seal protection for increased durability and stability
- easy maintenance of industrial gearbox due to modular design
- high-performance output, compact size
- The planetary gearbox is characterized by a fast cleaning speed.
