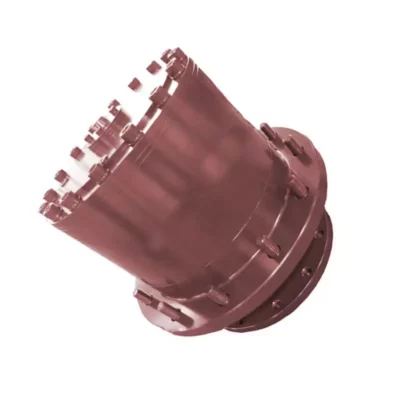

Wheeled Vehicle Planetary Gearbox Planetary Gear Reducer
The replacement of the wheel drive planetary gearbox(Wheeled Vehicle Planetary Gearbox) is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for the wheeled vehicles has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
 |
 |
 |

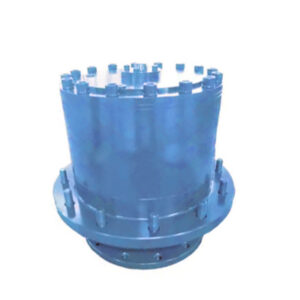

| NB602L2-25 | NB602L2 | NB606L2 |
Superior Performance (Wheeled Vehicle Planetary Gearbox)
The replacement of the wheel drive planetary gearbox(Wheeled Vehicle Planetary Gearbox) is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for the wheeled vehicles has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: the gearbox has rotating housing flanges to fit the wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, over-center valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strongly tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are the same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| NB601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| NB603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| NB603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| NB602 L2 | 5000 | 12.4-25.8 | 3000 | – |
| NB605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| NB606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| NB607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| NB609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| NB610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| NB611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| NB613 L3 | 45000 | 108 | 3000 | 300-800 |
| NB615 L3 | 60000 | 108 | 3000 | 300-1000 |
Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox can be alternatives to Bosch Rexroth gearboxes
| GFT13W2 | GFT17W2 | GFT17W3 | GFT24W2 | GFT26W2 | GFT36W3 | GFT40W2 |
| GFT50W3 | GFT60W3 | GFT80W3 | GFT110W3 | GFT160W3 | GFT220W3 | GFT330W3 |
The NB600L gearbox can be alternative to Trasmital Bonfiglioli
| 601R | 603W | 605W | 606W | 609W | 611W | 613W 615W |
