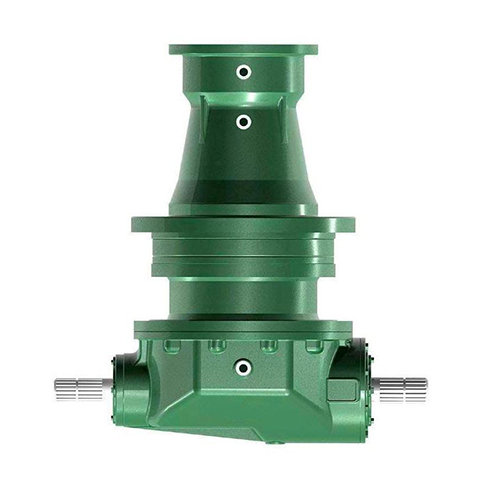

Planetary Mixer Drive TMR
Planetary Mixer Drive TMR
Planetary Mixer Drive TMR are commonly used in livestock farming to prepare a balanced and homogeneous mixture of various ingredients, such as grains, forages, additives, and minerals. The TMR feed mixer gearbox is specifically designed to meet the requirements of these mixers, providing the necessary power and control for efficient mixing of the ration.

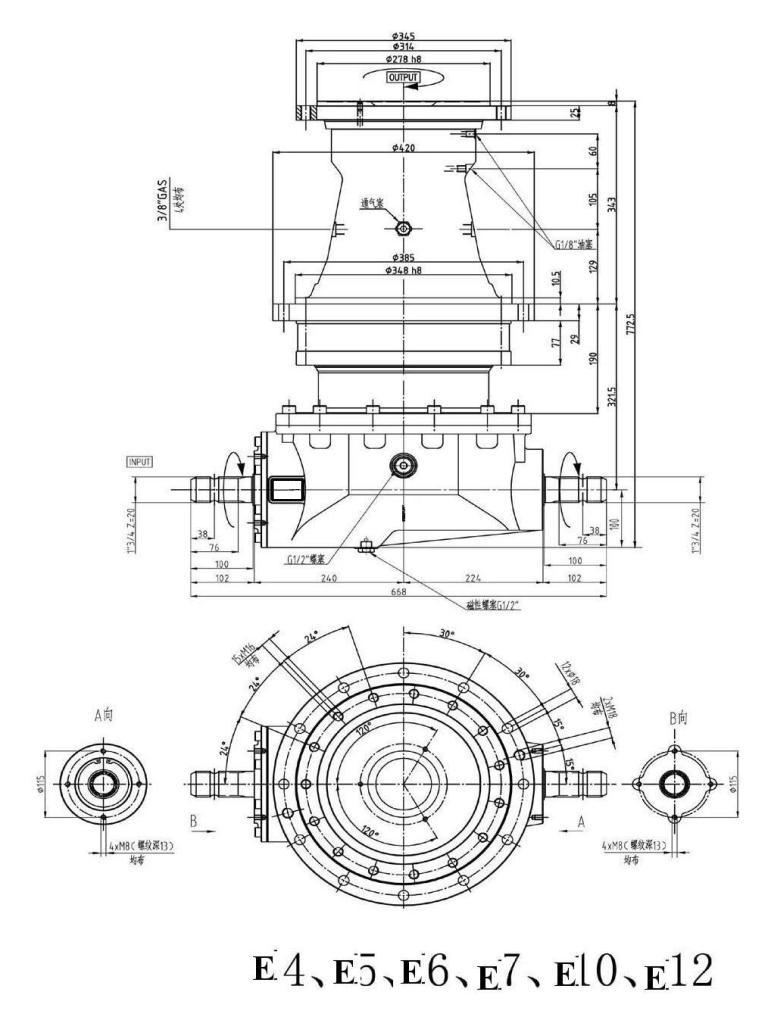

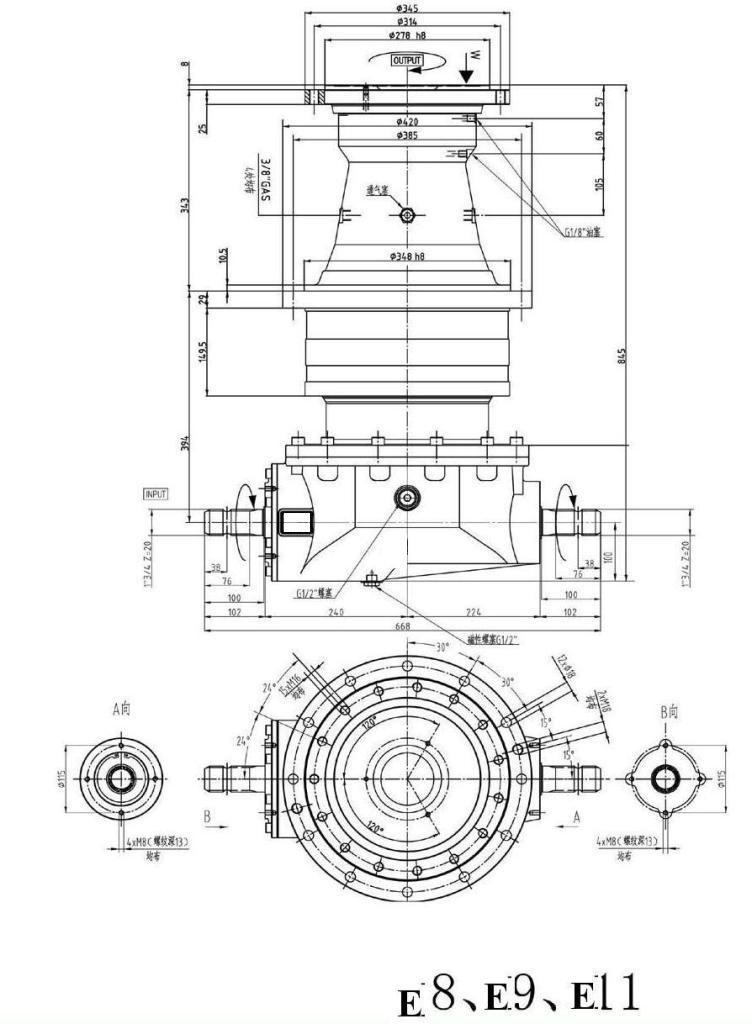

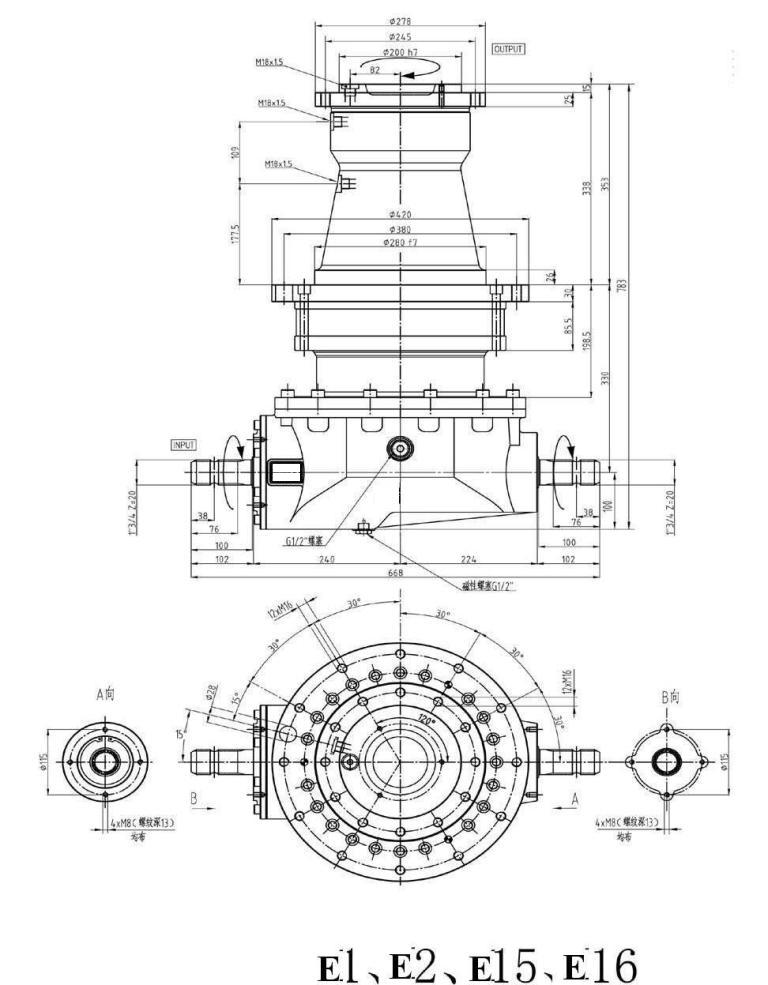

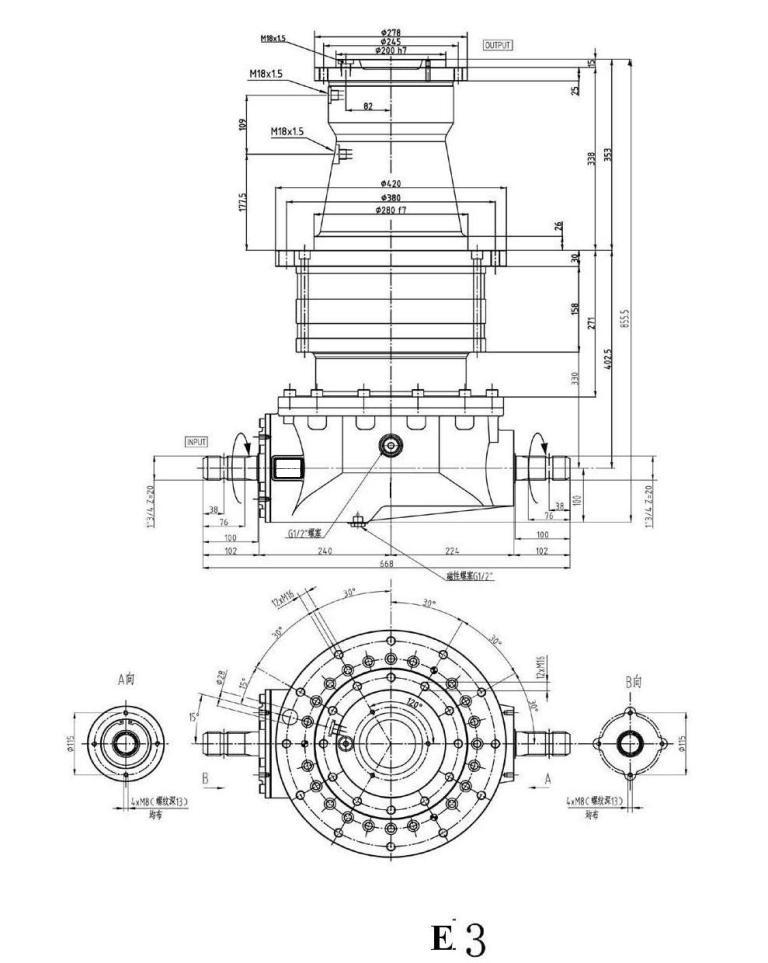

| ITEM no. | Ratio | Power KW | Output Torque (Nm) | Input speed(r.p.m) | weigh(Kg) |
| E1 | 14.60 | 61.97 | 16000 | 540 | 256 |
| E2 | 18.20 | 46.61 | 15000 | 540 | 256 |
| E3 | 28.27 | 59.27 | 16000 | 1000 | 290 |
| E4 | 16.13 | 55.04 | 15700 | 540 | 256 |
| E5 | 18.20 | 41.95 | 13500 | 540 | 256 |
| E6 | 21.10 | 32.16 | 12010 | 540 | 256 |
| E7 | 13.40 | 76.05 | 18020 | 540 | 280 |
| E8 | 28.27 | 61.12 | 16500 | 1000 | 330 |
| E9 | 25.89 | 72.89 | 18020 | 1000 | 290 |
| E10 | 13.40 | 67.52 | 16000 | 540 | 256 |
| E11 | 25.89 | 34.95 | 16000 | 540 | 290 |
| E12 | 13.40 | 67.52 | 16000 | 540 | 256 |
| E13 | 18.20 | 41.95 | 13500 | 540 | 256 |
| E14 | 21.10 | 32.16 | 12000 | 540 | 256 |
| E15 | 25.80 | 73.14 | 18020 | 1000 | 290 |
| E16 | 13.38 | 76.16 | 18020 | 540 | 256 |
Application of Feed Mixer Planetary Gearbox
 |
 |
 |

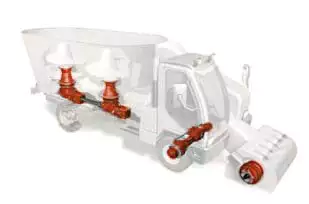

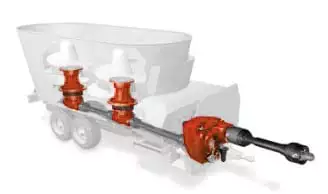

| Trailed vertical feed mixers | Self-propelled vertical feed mixers | Stationary machines |
A feed mixer gearbox is a component working in agricultural machinery, specifically in feed mixers. It is responsible for transferring power from the tractor or engine to the mixing mechanism of the feed mixer.
The gearbox in a feed mixer performs several important functions, including:
1. Power transmission: The gearbox takes the rotational power from the tractor or engine and transfers it to the mixing mechanism. It ensures that the power is delivering at the right speed and torque required for efficient mixing.
2. Speed adjustment: The gearbox allows the operator to adjust the rotational speed of the mixing mechanism. Different feed ingredients may require different mixing speeds, and the gearbox enables the operator to set the appropriate speed for optimal mixing.
3. Torque multiplication: In cases where the mixing mechanism encounters resistance, such as when mixing dense or heavy feed ingredients, the gearbox helps to multiply the torque to overcome the resistance and ensure consistent mixing.
4. Direction control: Some feed mixers have reversible mixing mechanisms that can rotate in both clockwise and counterclockwise directions. The gearbox facilitates the change in the rotational direction as required.
We produce all kinds of planetary gearboxes & helical gearboxes for vertical feed mixers
